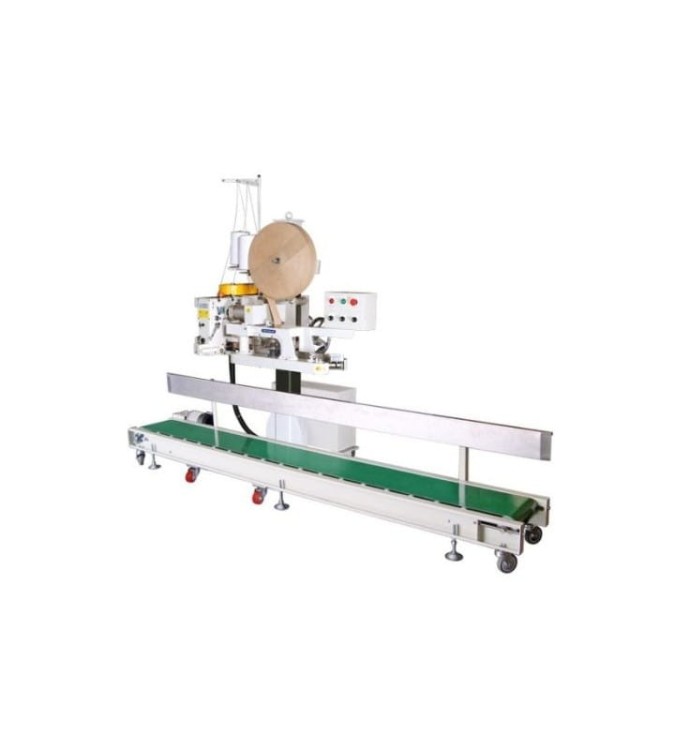

BAG CLOSING WITH CONVEYER YAO HAN FACC N980AC AUTOMATIC

Application:
A high class line for sewing bags from the renowned Yao Han brand.
Composed of a stationary bag closing machine N980AC on a column and a conveyor belt.
Designed for sewing mainly paper bags with the possibility of binding with crepe tape.

Functions:
Sewing machine makes a single, reinforced (2-thread) stitch.
It is equipped with a pneumatic thread and crepe tape cutter and an automatic lubrication system - lubrication is limited to checking and topping up the oil level.
The set has a photocell, thanks to which the work is fully automatic - bag detection, thread cutting.
Smoothly adjustable height of the sewing machine in relation to the conveyor belt allows working with sacks of various sizes.
Very good vibrations have been achieved due to the good balance of the rotating parts.

Technical data:
Power 230 V / 50 Hz
Needle Type DR2 # 26
It has a lubrication system.
Capacity 500 - 600 bags / hour.
Max. Sewing speed: 2700 spm.
Max. sewing thickness: 8 mm US 0.31 "
Stitch: 7 - 11 mm US 0.27 - 0.43 "
Stitch type: 1 needle, 2 threads
Stitch type: normal or coextruded with crepe tape
Height adjustment scale: 720 ~ 1200 mm US 28.34 - 47.24 "
Dimensions of the device [L x W x H]: 132 x 122 x 193 mm US 5.19" x 4.8" x 7.59"
Dimensions of belt conveyor [L x W x H]: 326 x 92 x 100 mm US 12.83" x 3.62" x 3.93"
