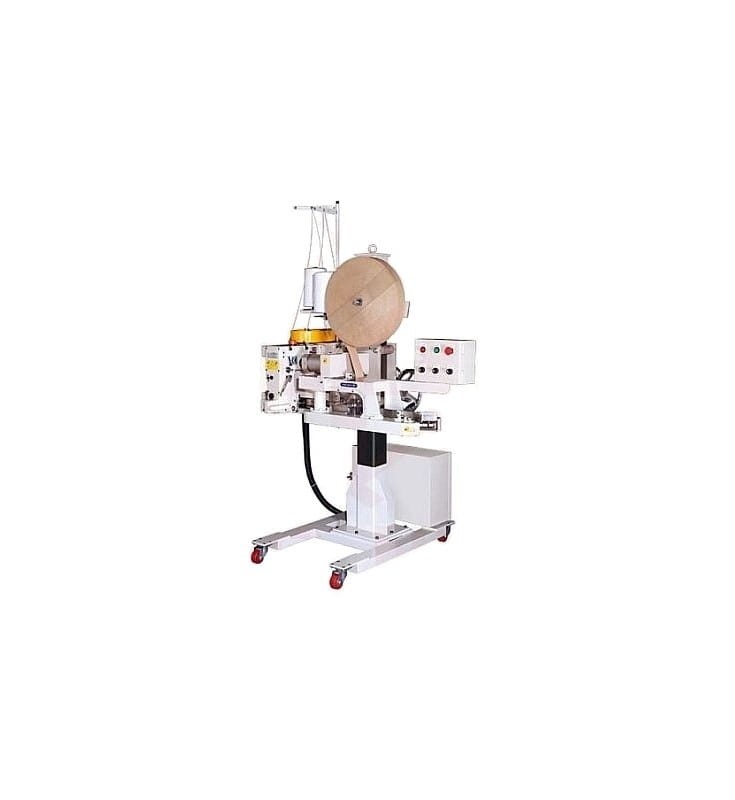

AUTOMATIC BAG CLOSING YAO HAN FAC N980AC WITH CONVEYER

Application:

Bag sewing kit from the renowned Yao Han brand.

Composed of the stationary sewing machine N980AC with binders and columns with control.

Sewing machine model designed for sewing mainly paper bags with the possibility of binding with crepe tape.

Functions:

Sewing machine makes a single, reinforced (2-thread) stitch.

It is equipped with a pneumatic thread and crepe tape cutter

Automatic lubrication - lubrication is limited to checking and topping up the oil level.

The set has a bag guide and a photocell, thanks to which the work is carried out fully automatically - bag detection, thread and crepe tape cutting.

Smoothly adjustable height of the sewing machine relative to the ground allows you to work with bags of different sizes.

Very good vibrations have been achieved due to the good balance of the rotating parts.
Set to connect with your own conveyor belt, rollers, etc

Technical data:

Air pressure: 4 kg/cm2
Max. sewing speed: 2500 rpm
Max. Sewing thickness: 8 mm US 0.31 "
Standard stitch length: 10 mm US 0.39 "
Type of sewing: normal
Weight: 250 kg US 551.15 lb
