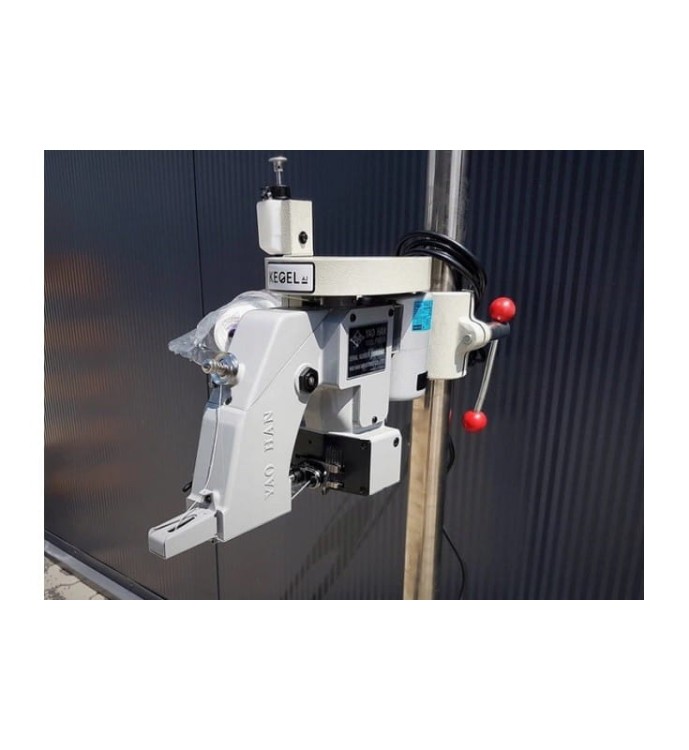

YAO HAN FN600A PORTABLE BAG CLOSING MACHINE

Application:

Single-threaded bag closing machine from the renowned Yao Han brand on an original tripod with a trolley.

Suitable for sewing bags of all types, e.g. jute, polypropylene, paper, polyethylene, sisal, linen, canvas etc.

Functions:

Staples with a strong chain stitch.

It has an automatic knife and central lubrication.

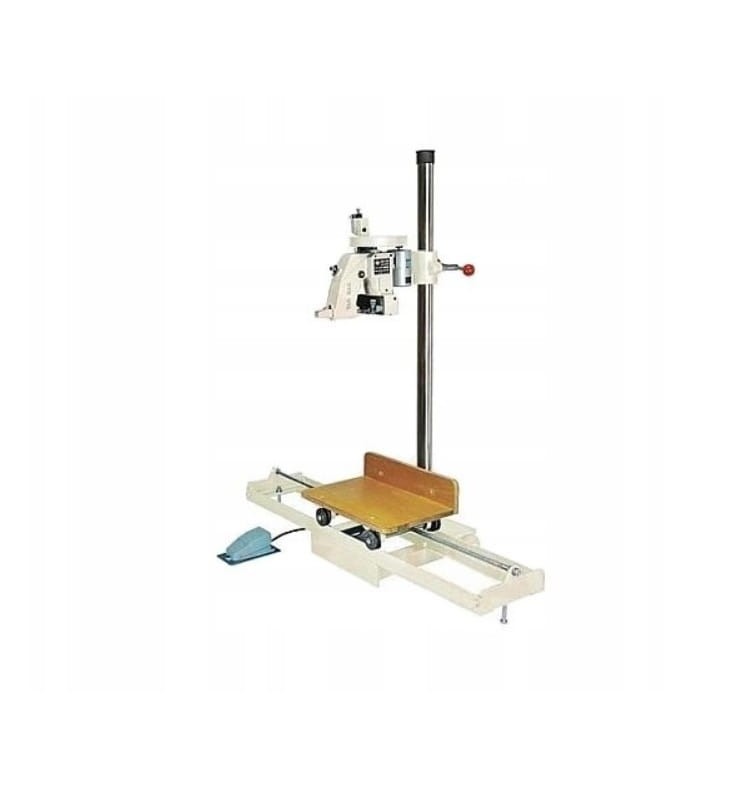

The tripod has a trolley that makes work easier.

Operation is via a foot speed regulator, thanks to which the operator has both hands free.

The height of the sewing machine on the tripod is adjustable.

Sewing machine operated with a foot pedal.

The kit has CE marking.

Very good vibrations have been achieved due to the good balance of the rotating parts.

Technical data:

Power: 90 W
Power supply: 230 V / 50 Hz
Needle Type DN x 1 # 25
Stitch length 7.2 mm US 0.27"
Type of stitch: chain, 1 needle, 1 thread
Max. Speed: 1500 spm.
Capacity: 250 - 350 bags / h
Height adjustment range: up to 850 mm US 33,46 "
Working range: 120 cm
Dimensions of the kit [L X W x H]: 1250 x 550 x 1300 mm US 49.21" x 21.65" x 51.18"
Weight: 55 kg US 121 lb
