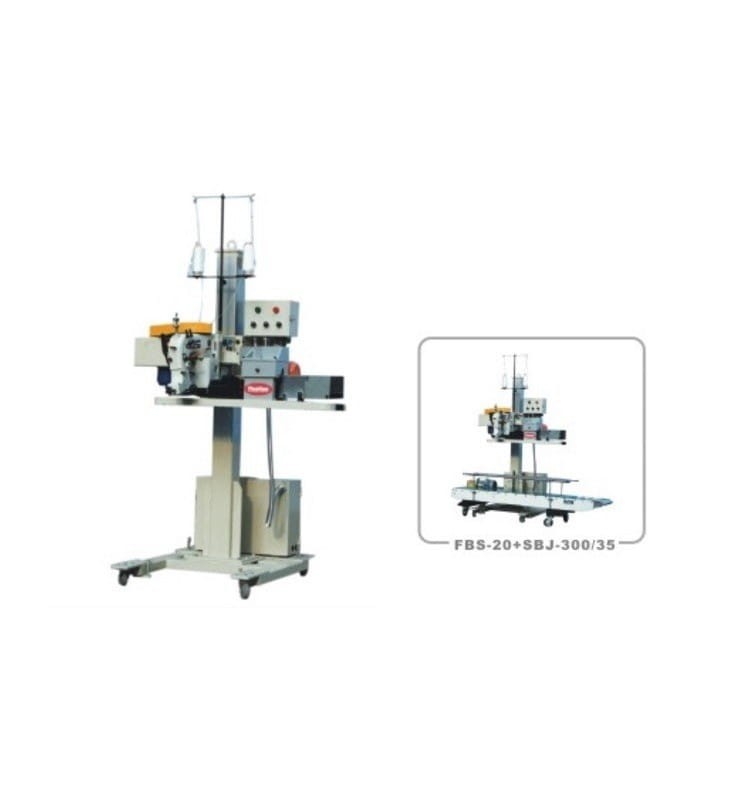

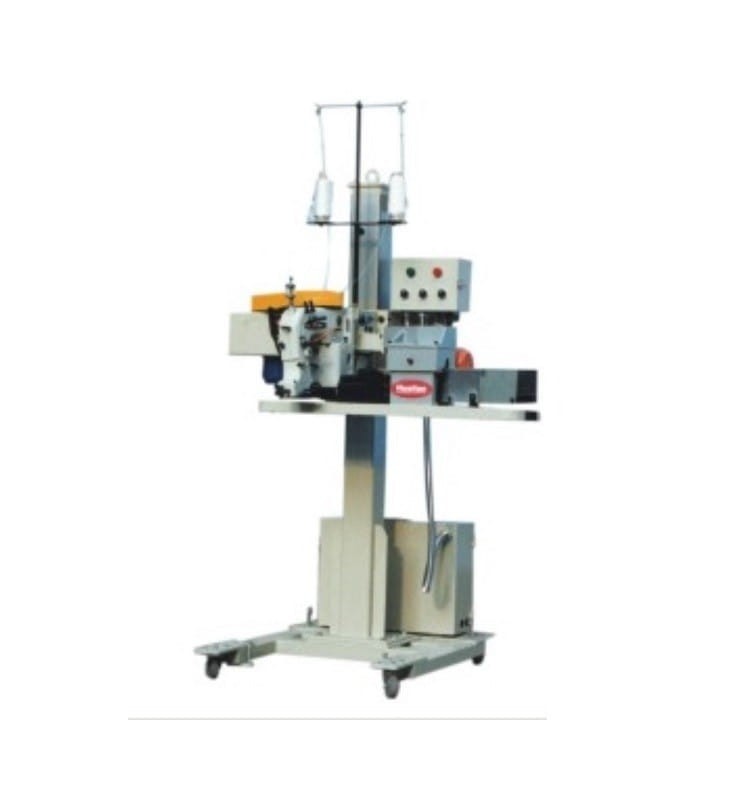

AUTOMATIC BAG CLOSING MACHINE FBS 20

Application:
The FBS 20 kit includes a tripod and industrial GK 35-6 sewing machine, which before sewing the bag folds its upper edge, ensuring tight and solid closing.
The device is used for packing feed, fertilizers, cereals, etc. in large paper bags and woven plastic bags.
Requires a compressor connection

Functions:
Sewing machine has pneumatic thread cutting and photocell, thanks to which the process of folding, stitching and cutting takes place automatically.
Sewing machine height is adjustable - you can work on bags of different heights.
Thanks to the tripod's wheels, the set can be easily moved.


Technical data:
Power supply: 380 V / 50 Hz
Power: 0.6 kW
Transmission motor power: 0.18 kW
Power of the sewing machine: 0.37 kW
Stitching speed: 8.5 m / min. US 334.64" / min (possibility of adaptation)
Distance from ground to ground: 700-1400 mm US 27.75 - 55 "
Air pressure: 0,6 MPa
Folding width: 30-40 mm US 1.18 - 1.57 "
Cutter Model: GK 35-6
Needle model: 80 800 x 250 #
Required height of the top of the bag (stock): 150-170 mm US 5.9 - 6.69
Dimensions of the machine [L x W x H: 1200 x 1000 x 1870 mm US 47.24" x 39.37" x 73.62"
Machine weight: 200 kg US 440 lb

Extra paid options:
Conveyor
