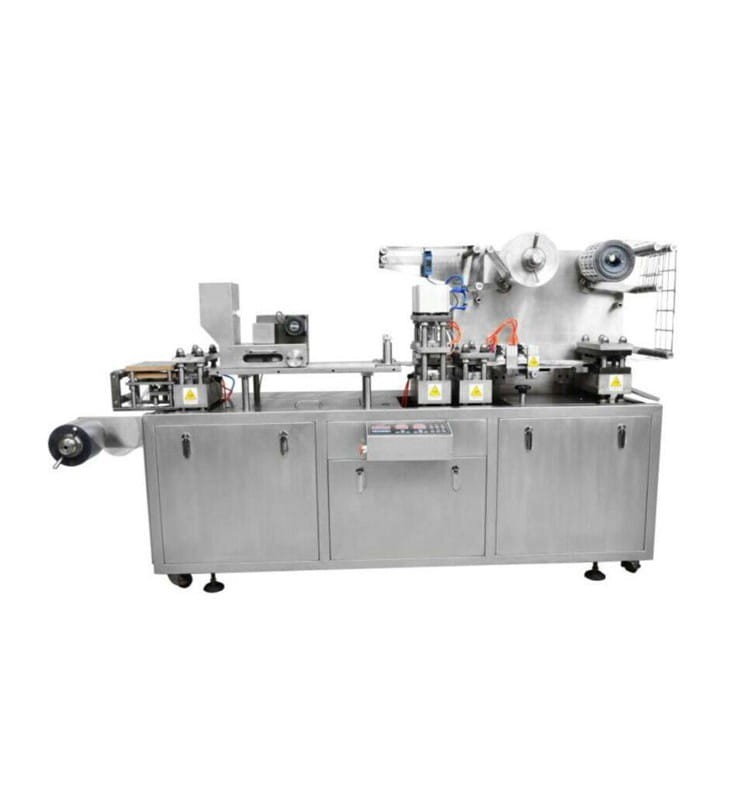

ALUMINUM BLISTER PACKING MACHINE JX-041

Application:

It forms blisters of foil from the web, and then, after placing the products in them, it closes the blisters from the top with foil, aluminum or paper.

A simple to use, efficient device for forming blister packaging.

Function:

It has all the necessary certificates including CE.

Equipped with a date stamp.

The device is made of stainless steel, easy to use and maintain, solidly made and reliable.

Operation is carried out using the HMI touch screen.

Technical data:

Power: 6.2 kW

Power supply: 380 V / 50 Hz or 230 V / 50 Hz  US 110 V / 50 Hz

Max. Forming surface: 250 x 180 mm  US 10 x 7"

Standard molding surface: 80 x 57 mm  US 3 x 2"

Max. molding depth: AL/plastic: 26 mm  US 1" AL/AL: 14 mm  US 0,5"

Air pressure: 0.4-0.6 MPa

Air consumption: ≥0.36 m³ /min.  US ≥0.36 CBM /min.

Capacity: 120 pcs. / min.

The width of the film: 250 mm  US 10"

External dimensions [L x W x H]: 3900 x 730 x 1600 mm  US 153 x 29 x 63"

Weight of the device: 1600 kg  US 3527 lb
