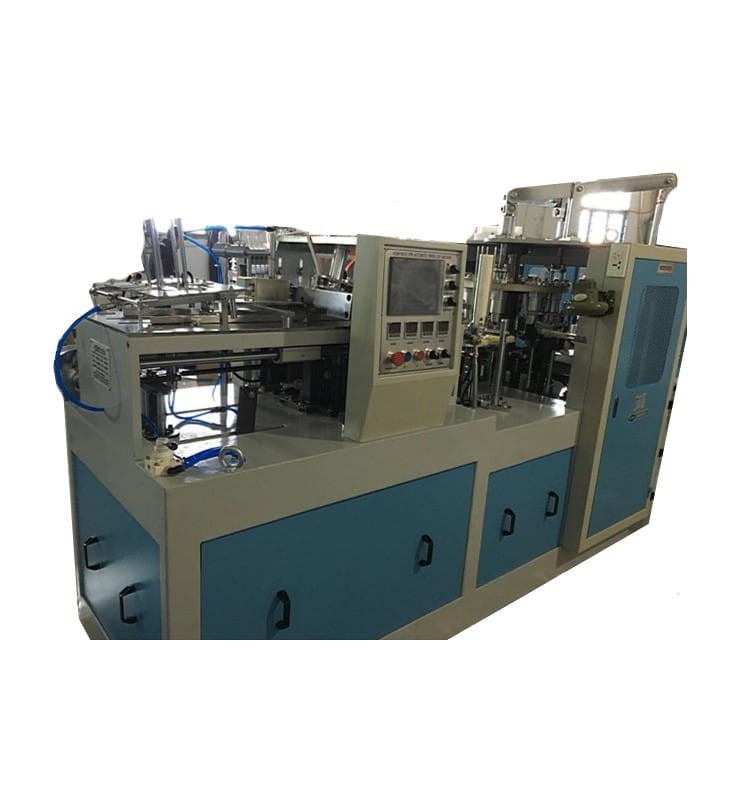

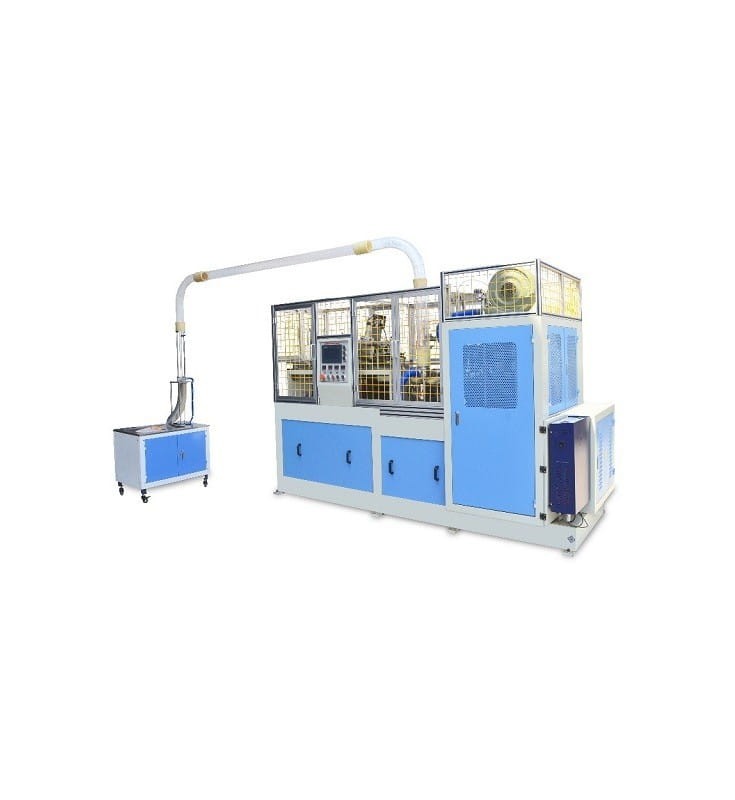

ULTRASONIC AUTOMATIC PAPER CUP MACHINE ZBJX12

Application:
The machine is designed for forming one or two-layer paper cups for cold or hot beverages.
The cups are welded with ultrasound.

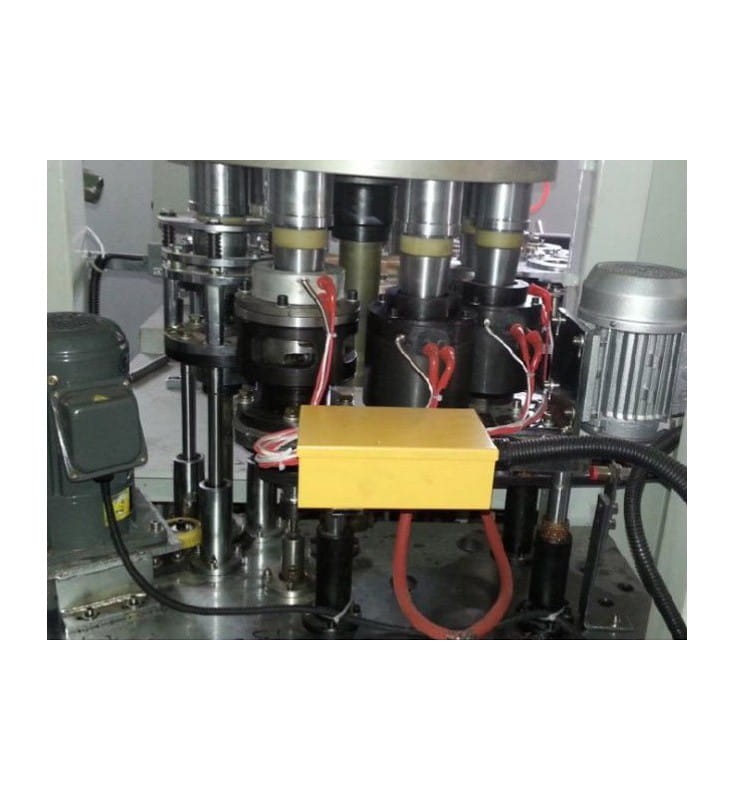

The machine collapses and seals the wall of the cup, wraps the upper and lower edge of the cup, cuts and warms the bottom and finished cups.

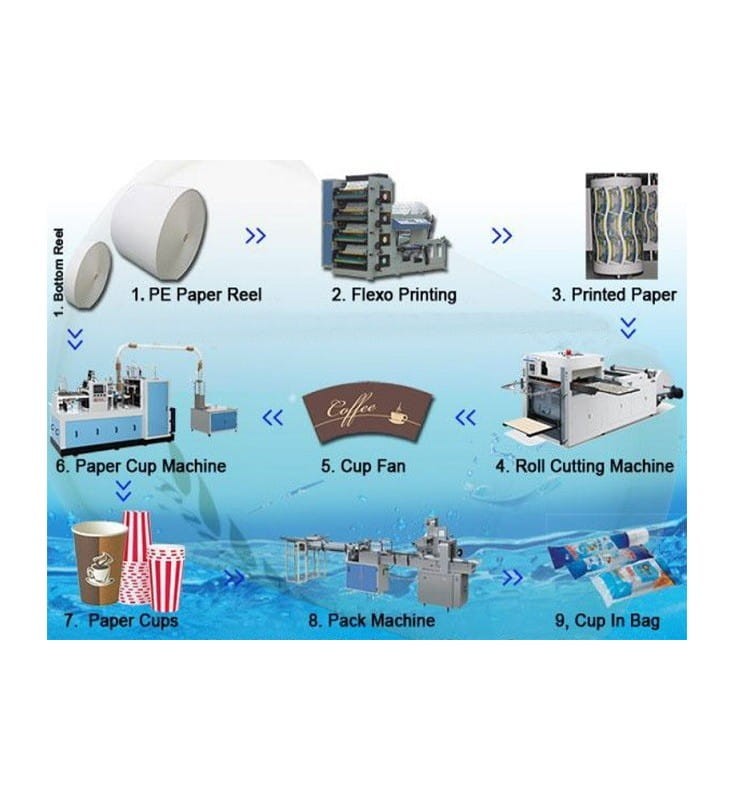

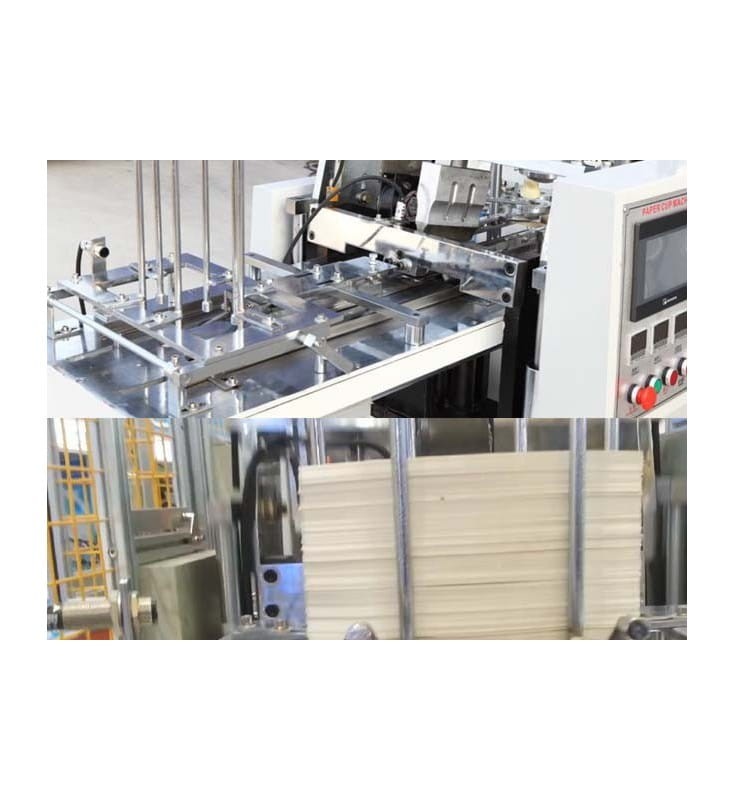

It requires ready - cut and printed cup cutouts.

Functions:
The reliability of the production process is provided by HMI and PLC controllers, components including Schneider, Autonics, Delta, including 11 sensors controlling all stages of work.
The device has a self-lubrication system for moving parts and automatic emergency shutdown.
It is easy to use and maintain.
It requires the use of appropriate paper, previously printed with the appropriate basis weight - depending on whether the cups are intended for cold or hot drinks (for hot drinks it is 250-320 gsm).

Technical data:
Power: 6 kW
Power supply: 380 V / 50 Hz
Air pressure: 0.4 MPa
Air consumption: 0.6 m3 / min.
Efficiency: 50 - 75 pcs./min.
Capacity of cups: 360 ml
Dimensions of cups:
Diameter of the top: 45 - 110 mm US 2-4"
Bottom diameter: 35 - 80 mm US 1-3"
Height: 40 - 125 mm US 1,5-5"
Dimensions of the device [length x width x height]: 2750 x 1240 x 1800 mm US 108" x 48" x 71"
Weight: 2500 kg US 5511 lb
