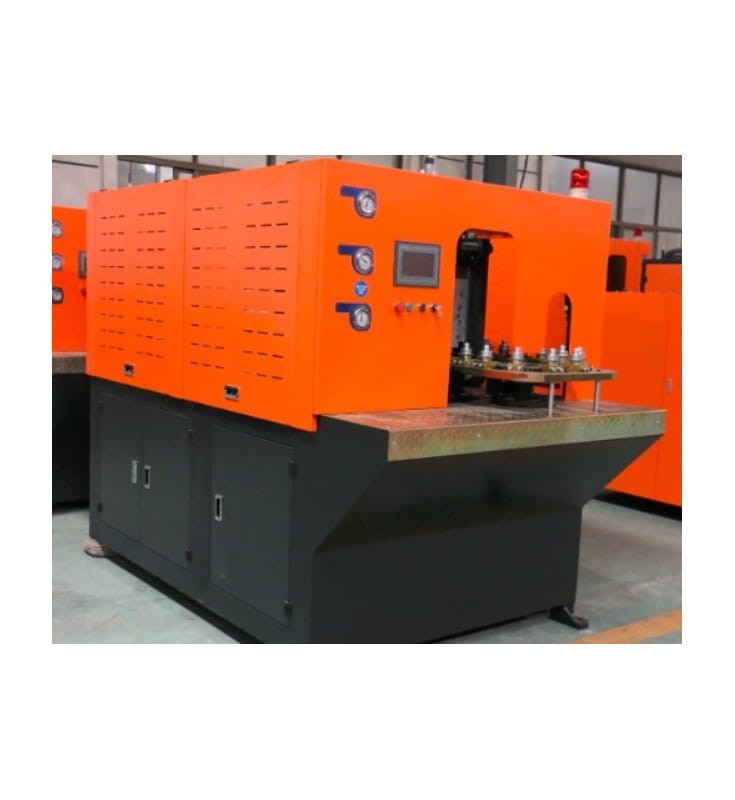

SEMI-AUTOMATIC 1000 ml PET LINEAR BLOWING MACHINE H2

Application:

Bottle blow molding machine.

The device, under the influence of hot air, heats the plastic bottle, which becomes more plastic, then it is placed in a mold where it is blown into the right shape with compressed air.

The bottle is cooled by a cold-blow dryer, whose main function is to cool the mold and to ensure that part of the bottle will not be damaged during the heating process.

This machine make only bottle, not cap.

Functions:

The device is also equipped with a high-pressure refrigeration unit to obtain the ideal operating temperature, increase the life of pneumatic components, filter impurities and oil.

Equipped with a simple LCD panel, high-quality control system, ensuring a guarantee of performance.

The device is easy to maintain and use.

The device also has a blowing control system.

The construction of the machine ensures low noise levels at work.

The device has high quality European components, thanks to which the machine's operation is more efficient and faster.

Heating technology ensures safety and energy saving, no environmental pollution.

A compressor connection is required for the machine to work.

Technical specifications:

Power: 24 kW

Power supply: 230 V / 50 Hz

Max. product volume: 2 l

Max. Product diameter: 105 mm

Capacity: 2000-2200 pcs / h

Max. filler diameter: 80 mm

Max. product height: 330 mm

Sockets with forms: 2

Air consumption: 7-9 kg / cm2

Operation of air pressure: 1000 L / min.

Blowing pressure: 1.2-2.8 MPa

Compressed air consumption: 1500 l / min.

Option to upload menu in another language.
