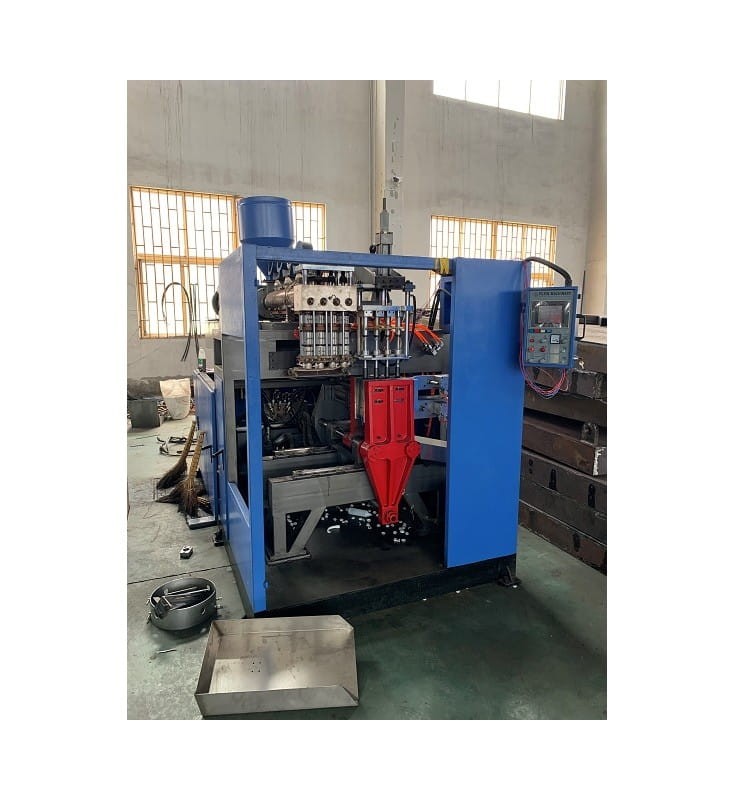

HDPE BLOWING MACHINE PXB50-4

Application:

The machine is designed for the production of HDPE.

The blow molding machine is adapted to dies with 4.2 and 1 mold.

Functions:

The device is designed using high-quality European components - Weintec, Siemens, Panasonic etc.

Precise temperature control up to approx. 1%.

Heaters made of steel allowing for stable operation.

The device is easy to use and efficient.

Technical parameter:

Capacity: 250-2000 ml

Engine power: 16.5 kW

Capacity: 1500 pcs / h

Power: 22 kW

Average energy consumption: 12 kW

Heating capacity ： 30 kg / h

Temperature control precision: approx. 1%

Heating power: 10.8 kW / 3;

Cold mode: automatic blowing, three fans.

Fan power: 90W × 3;

Heating mode ： heaters made of stainless steel;

Heating power ： 4.2 kW / 2;

Standard distance from the center of the double head: 130 mm  US 5"

Maximum die diameter: 75 mm  US 2,9"

Max mold size (W × H): 350 × 370/205 × 600 mm;  US  13,7 x 14,5/8 x 23,6"

Mold thickness: 135-210 mm  US  5,3-8,2"

Energy demand:

Pressure: 0.6MPa

Air consumption: 0.4 m3 / min ；

Cooling:

Pressure: 0.2 ～ 0.3MPa

Water consumption: 35 l / min ；

Voltage: 380V / 50HZ 3 Phase;

Machine dimensions (L × W × H): 2.8 × 1.7 × 2.5 m   US 110 x 67 x 98"

Gross weight: 4T
