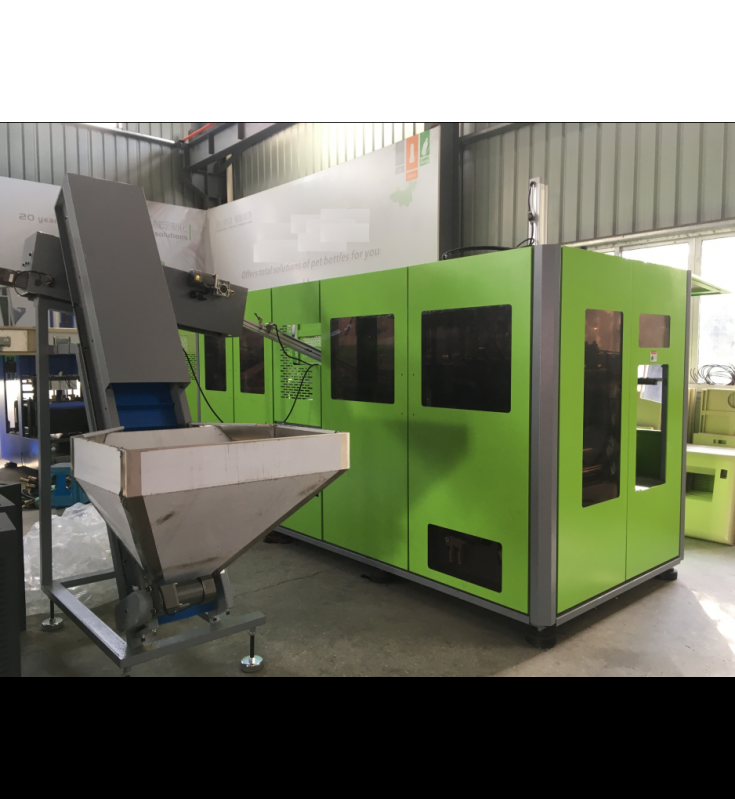

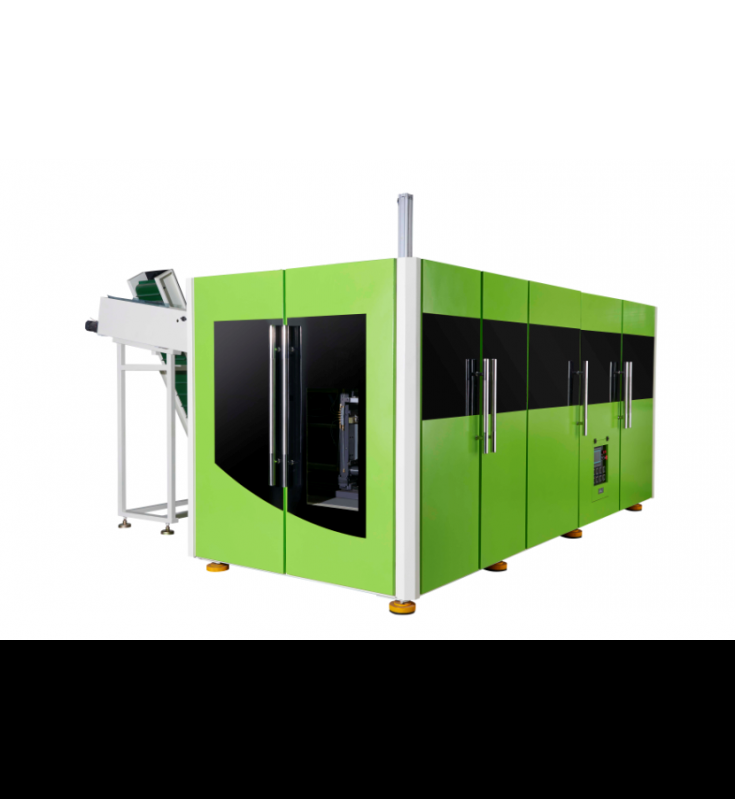

BOTTLE BLOWING MACHINE PET OGB-6

Application:

Bottle blow molding machine.

The device, under the influence of hot air, heats the plastic bottle, which becomes more plastic, then it is placed in a mold where it is blown into the right shape with compressed air.

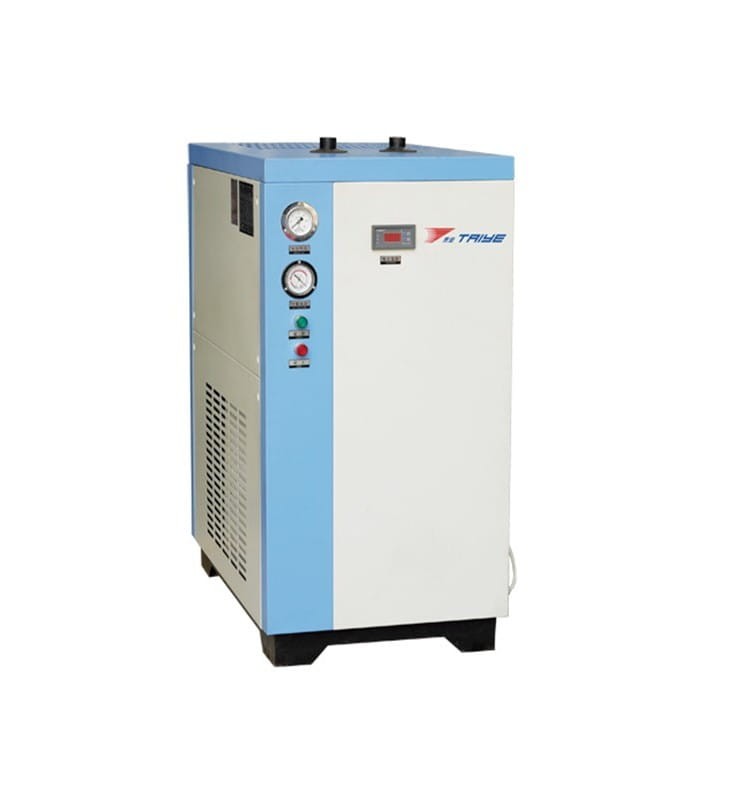

The bottle is cooled by a cold-blow dryer, whose main function is to cool the mold and to ensure that part of the bottle will not be damaged during the heating process.

This machine make only bottle, not cap.

Functions:

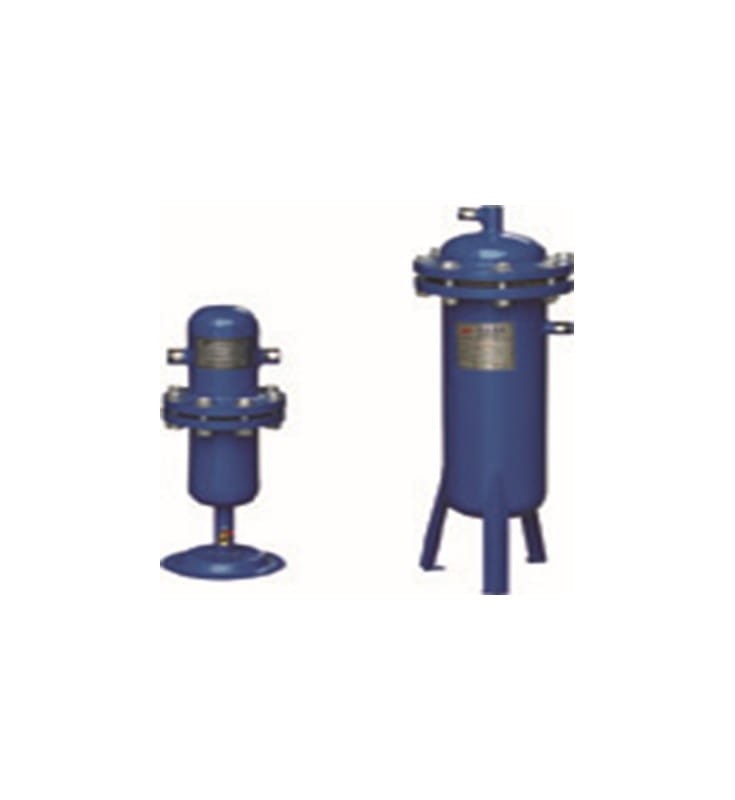

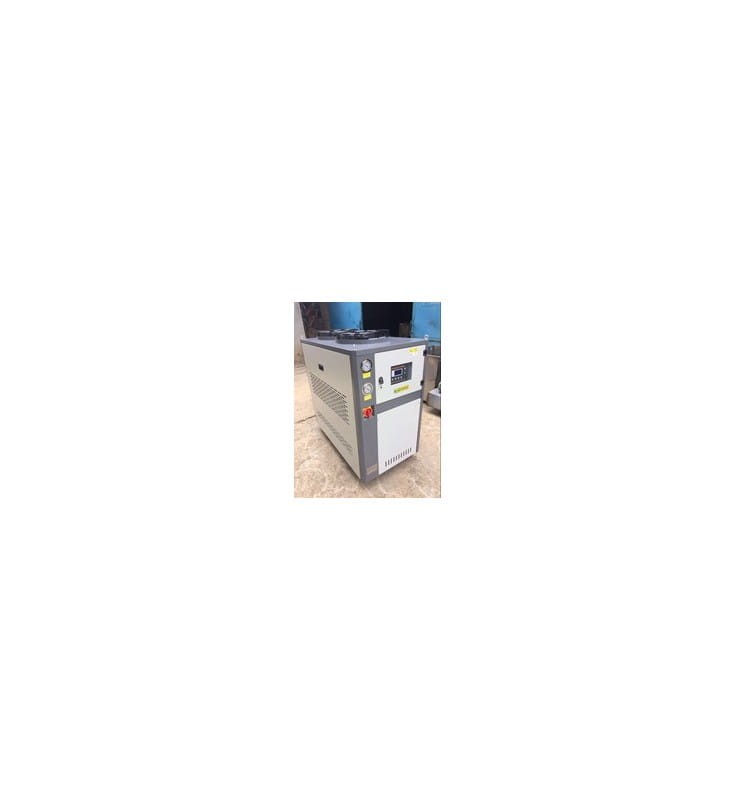

The device is also equipped with a high-pressure refrigeration unit to obtain the ideal operating temperature, increase the life of pneumatic components, filter impurities and oil.

The device is easy to maintain and use.

The device also has a blowing control system.

The construction of the machine ensures low noise levels at work.

The device has high quality European components, thanks to which the machine's operation is more efficient and faster.

Heating technology ensures safety and energy saving, no environmental pollution.

A compressor connection is required for the machine to work.

Technical specifications:

Real production 5500B/H (500ml)

Max volume: 1.5L

Max height: 350mm

Max diameter: 110mm

Number of cavities: 6

Mould plate dimension: L:760mm*H360mm

Mould thickness 190mm

Mould opening stroke 110mm

Power: 220-380V/50-60HZ

Total power: 35kw

Heating power: 32kw

Operation pressure:0.8-1.0Mpa

Action air consuming:  ≤1.6m³/min

Blowing pressure: ≤4.0Mpa

Blowing air consumption: ≤4.8m³/min

Main body dimension: [L x W x H] 4400 x1 450 x 2000 mm

Main body weight: 3200kg US 7054 lb

Preform autoloader dimension: [L x W X H]  1600 x 850x 2200 mm

Preform autoloader weight: 200kg US 440,9 lb

Additional information:

Price for the set

Forms for an extra charge
