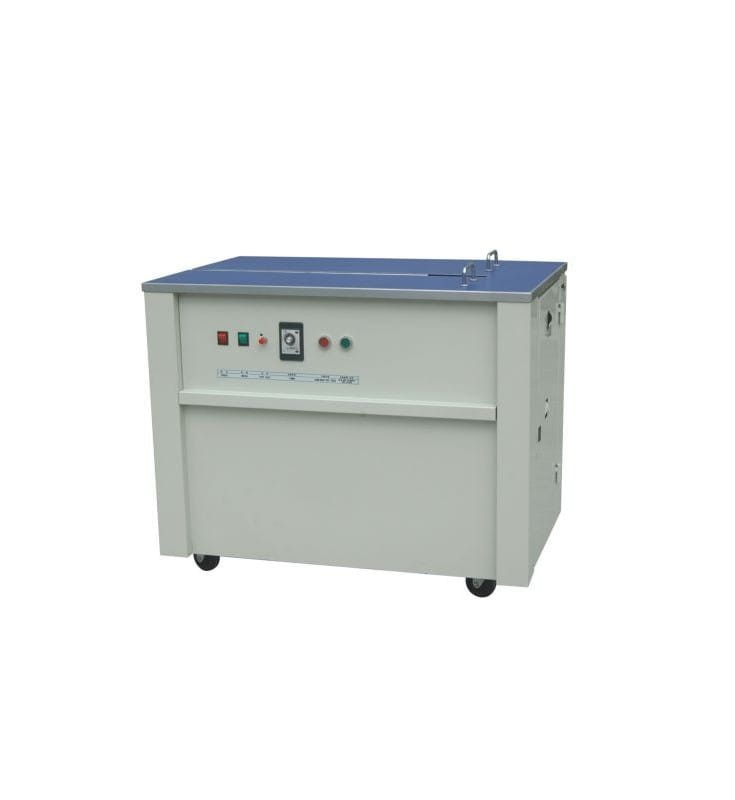

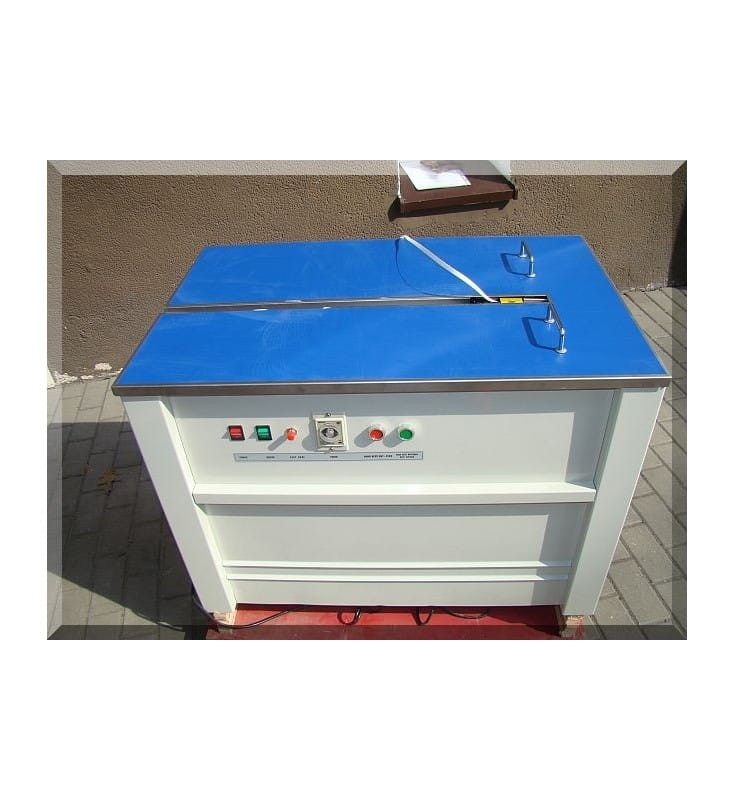

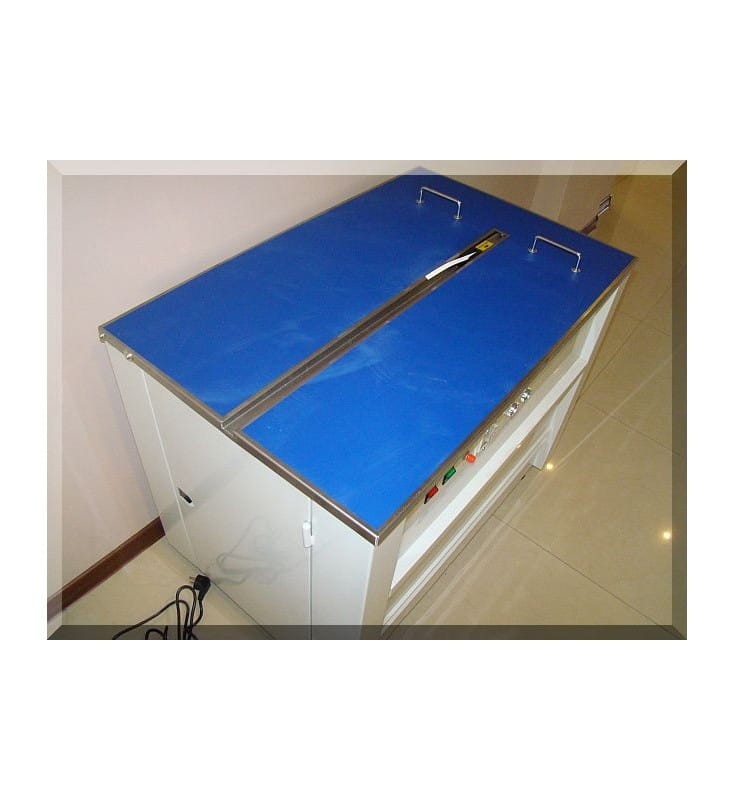

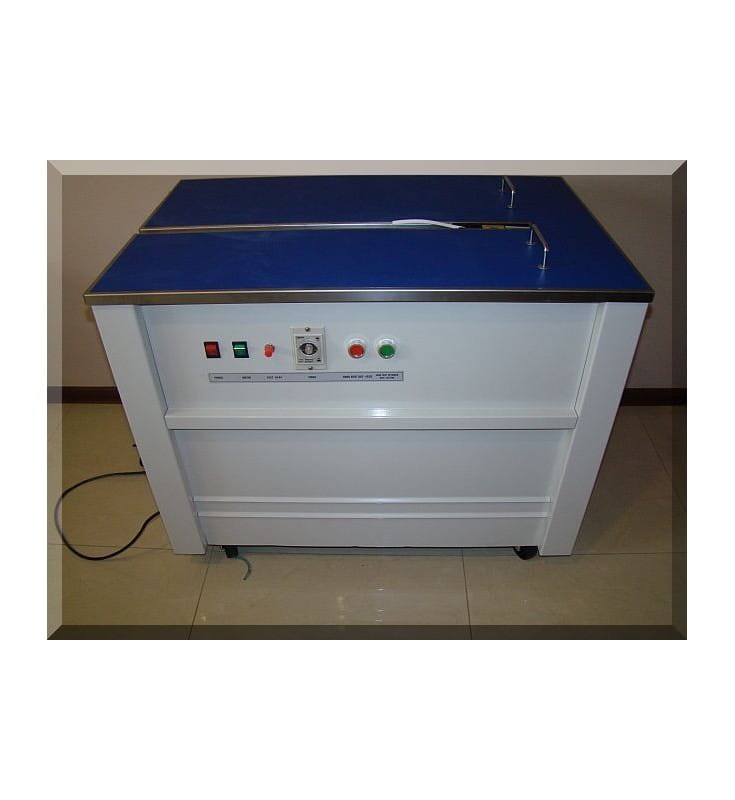

SEMIAUTOMATIC STRAPPING MACHINE SK 1 / KZB 1

Application:

Semi-automatic device designed to wrap PP tape, document files, newspapers, etc.

The blender automatically ejects the tape to the operator's length, then handles the wrapper around the product and inserts it into the astringer.

The rest of the work is done automatically - tighten the tape around the cardboard, weld it and cut it over.

Function:

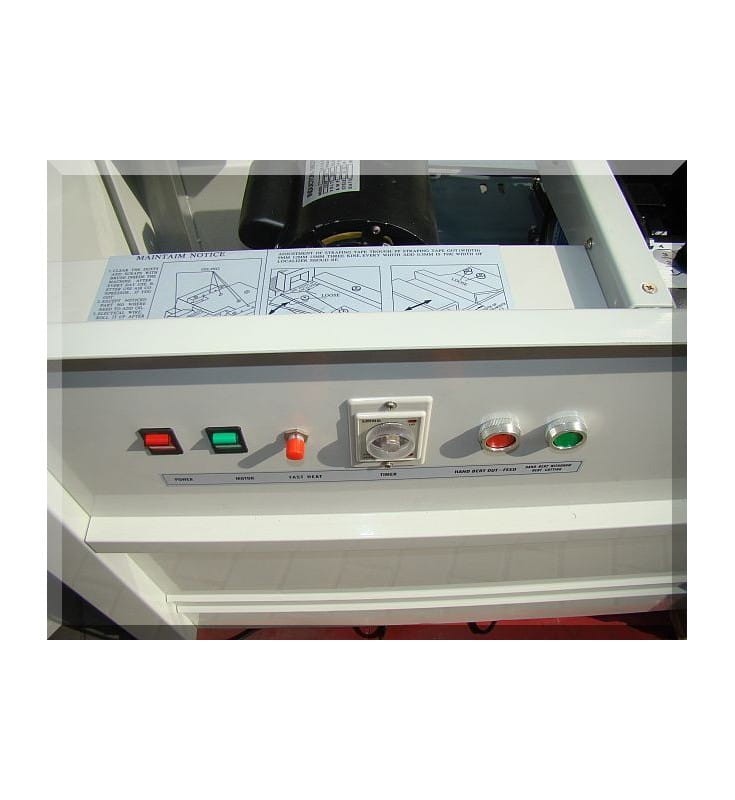

Weld temperature and tensile strength are adjustable.

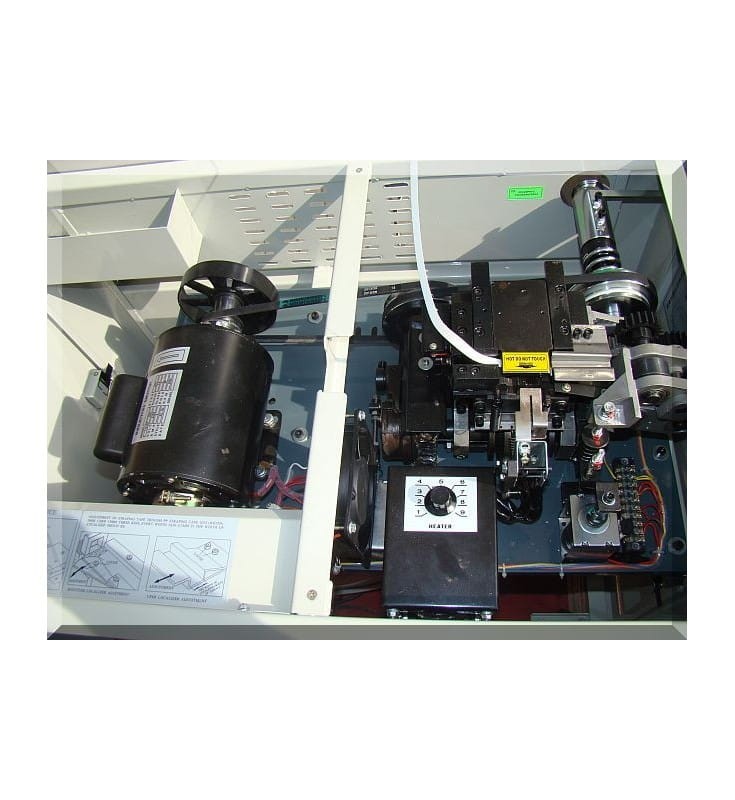

The windscreen drum has an electromagnetic brake to prevent unwinding of the tape.

Device with Japanese electronics.

The color may vary depending on the delivery.

Technical parameters:

Power: 0,32 kW

Power supply: 230 V / 50 Hz  US 110 V

Working speed: approx. 2 s / cycle

Min. dimensions of the packaged product [W x H]: 30 x 60 mm  US 1.2 x 2.4"

Max. packaging dimensions [W x H]: width up to 650 mm  US 25.6"

Clamping force: 10 - 450 N adjustable

Tape width: 6 - 15 mm adjustable  US 2.24 - 0.6"

External dimensions [L x W x H]: 900 x 580 x 750 mm  US 35 x 23 x 30"

Weight: 85 kg  US 188 lb
