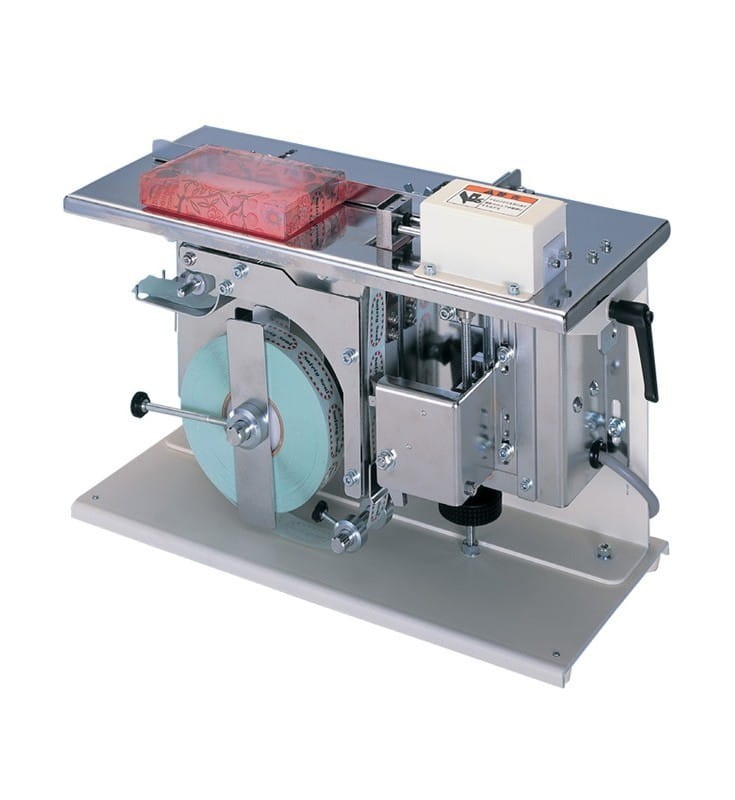

BJ P1 L-CLIP BOX SEALER

Application:

Semi-automatic cardboard cartoner designed for L-type wrapping, i.e. on the edge of the box.

The box should be pressed with the edge to the mold on the right side of the device where the sticker applicator is located.

The sticker is taken from the role and glued on the edge and on both adjacent walls of the box.

The device is widely used to secure or seal packages.

Function:

Simple operation.

Compact construction.
Technical data:
Power: 6 W
Efficiency: 15 - 40 pcs. / min.
The length of the stickers: 15-45 mm  US 0.6-1.8"
Width of stickers: 10-24 mm  US 0.4-0.9"
Diameter of the roll with stickers: Ø120 mm  US 4.7"
Diameter of the core of the roll with stickers: φ42-φ75 mm  US 1.7-3"
External dimensions [L x W x H]: 350 x 165 x 220 mm  US 14 x 7 x 9"
Weight: 10 kg  US 22 lb
