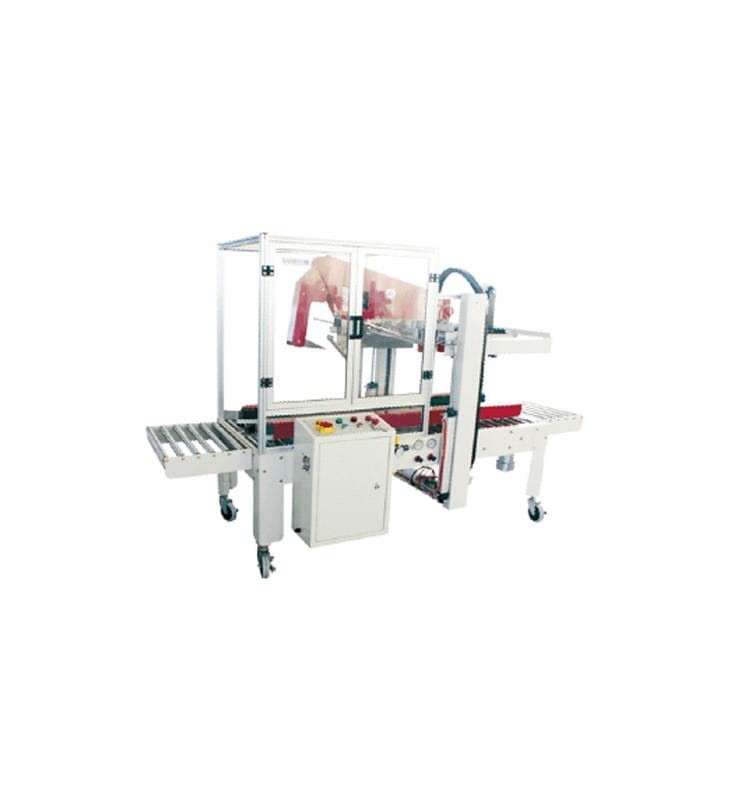

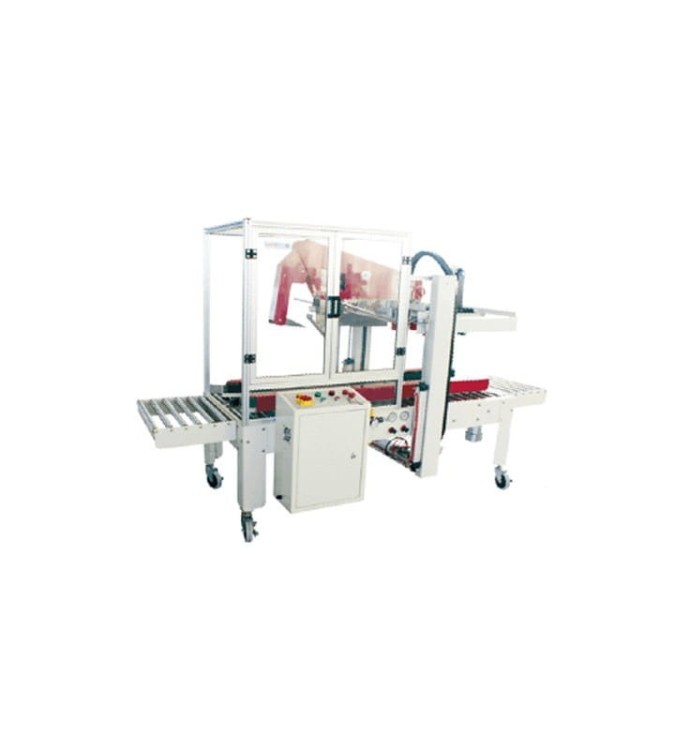

FX AT5050B PNEUMATIC ADJUST FLAPS FOLDING CARTON SEALING MACHINE

Application:

Automatic, pneumatic device used for sealing cartons at the same time from above and below.

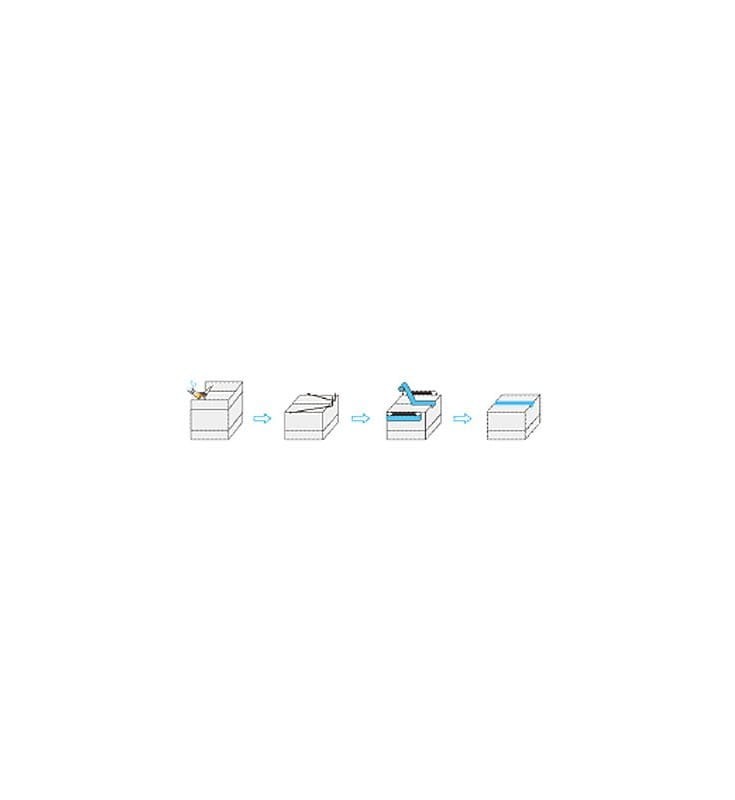

Closes the upper flaps of the carton and adapts to each subsequent carton, making it ideal for packaging packages of varying sizes, e.g. in warehouses.

Functions:

Top and bottom closing.

It has a lateral shift thanks to which the work is even more stable and the cartons move evenly during the gluing.

The machine is easy to use and efficient.

Requires connection of the compressor.

Technical data:
Power: 0.24 kW
Power supply: 230 V / 50 Hz  US 110 V
Required compressor capacity: 300 l / min.  US 79 gal / min.
Min. packing dimensions [L x W x H]: 200 x 120 x 120 mm  US 8 x 5 x 5"
Max. packing dimensions [L x W x H]: 600 x 500 x 500 mm  US 24 x 20 x 20"
Speed of work: 16 m / min.  US 52.5 ft / min.
Tape width: 36, 48 or 60 mm US 1, 2, 2,3"
Tape type: BOPP, PVC

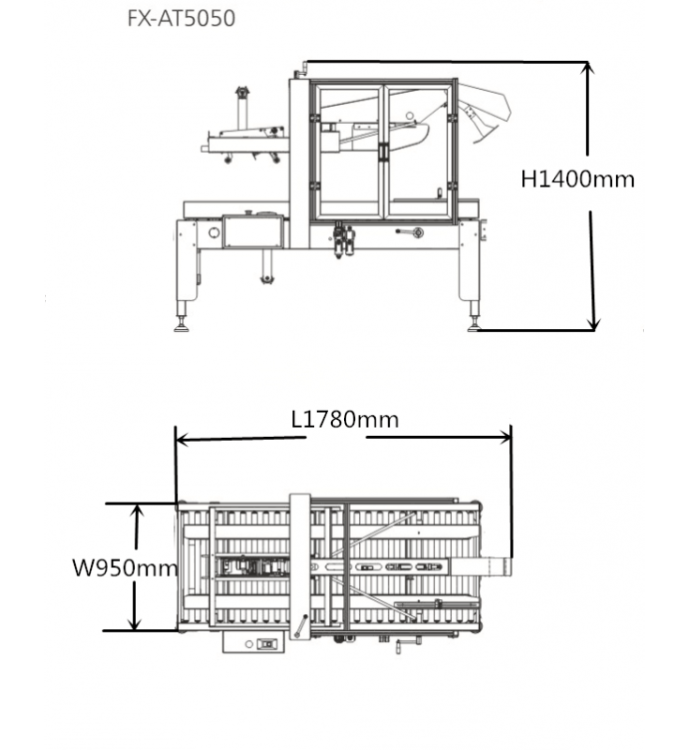

External dimensions [L x W x H]: 1780 x 950 x 1400 mm US 70" x 37" x 55"
Weight: 260 kg  US 573 lb
