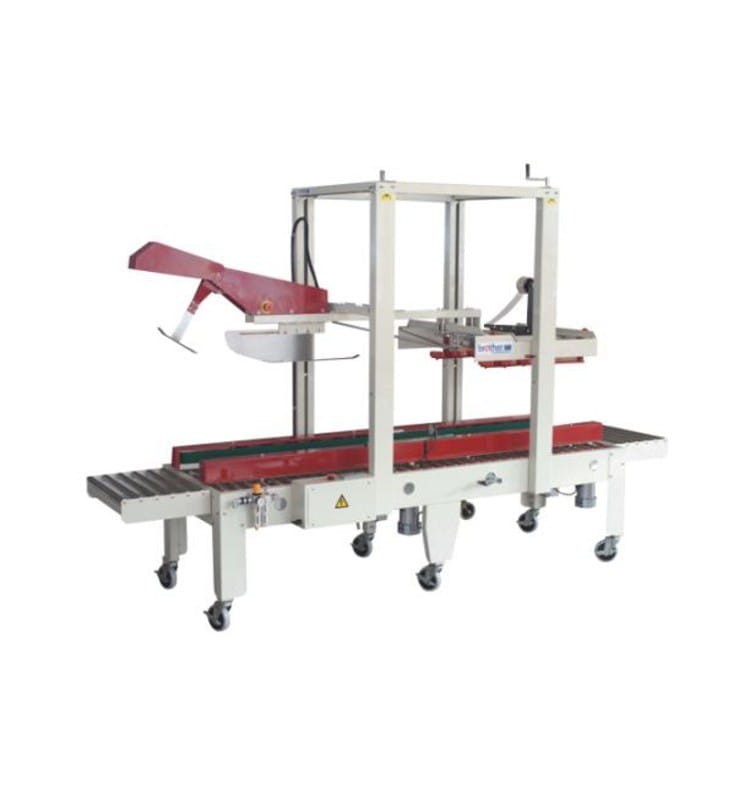

FX-AT8080L AUTOMATIC CARTON FOLD SEALING MACHINE

Application:

Automatic large size cardboard cartoner.

The device is intended especially for incorporation into an automatic production line.

Function:

The device closes the upper flaps of the cardboard, and then seals it from the top and bottom.

Side shift model.

Simple to use.

Efficient.

Pneumatic device - requires connection of the compressor.

Technical data:
Power: 0.24 kW
Working speed: 16 m / min.  US 52.5 ft / min.
Max. packing dimensions [L x W x H]: 1200 x 800 x 800 mm  US 47.2 x 31.5 x 31.6"
Min. packing dimensions [W x H]: 120 x 300 mm  US 4.7 x 11.8"
Tape width: 50 or 75 mm  US 2" or 3"
External dimensions [L x W x H]: 1840 x 1000 x 1550 mm  US 72 x 39 x 61"
Weight: 240 kg  US 529 lb
