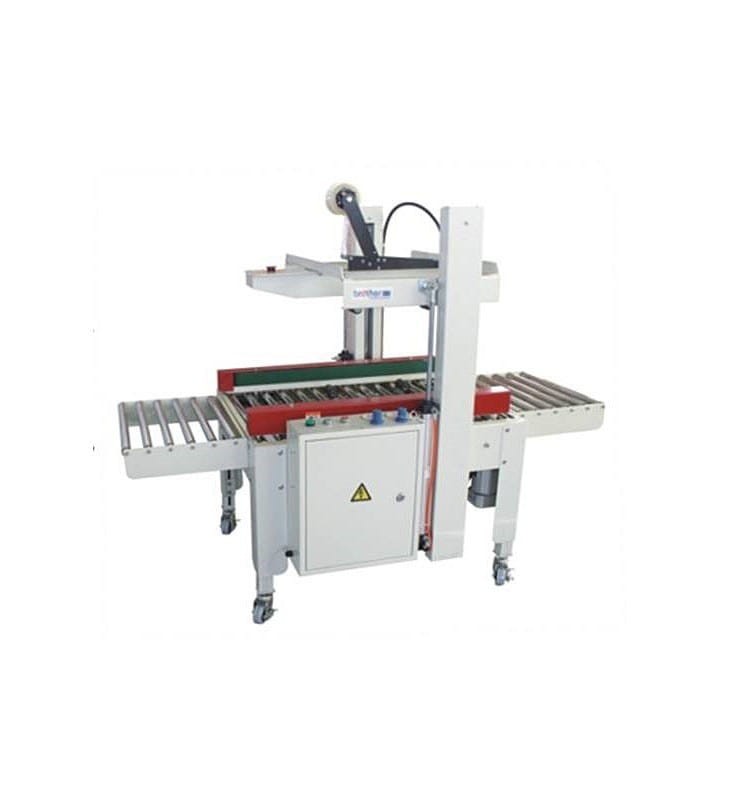

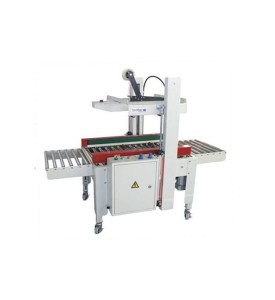

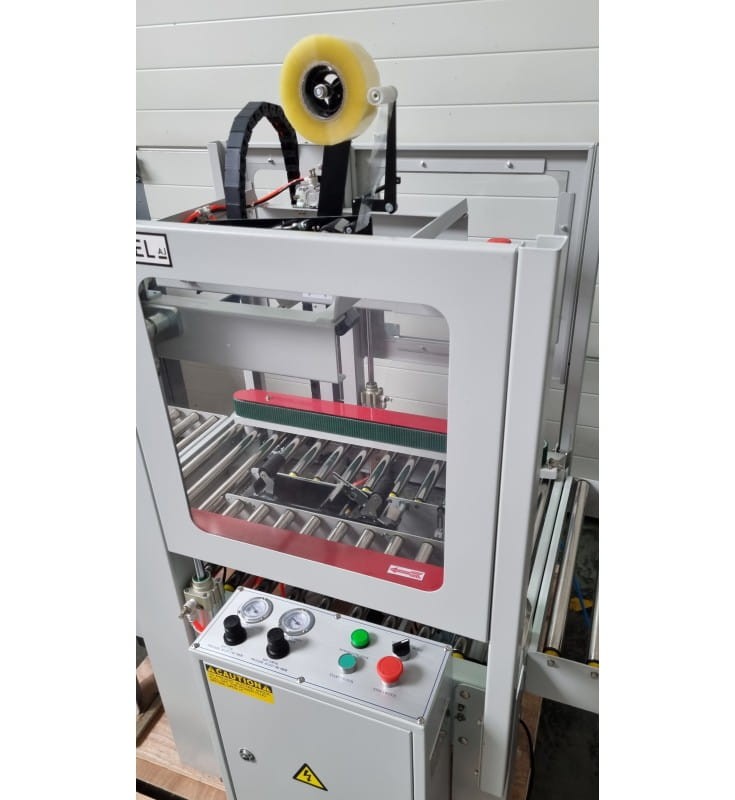

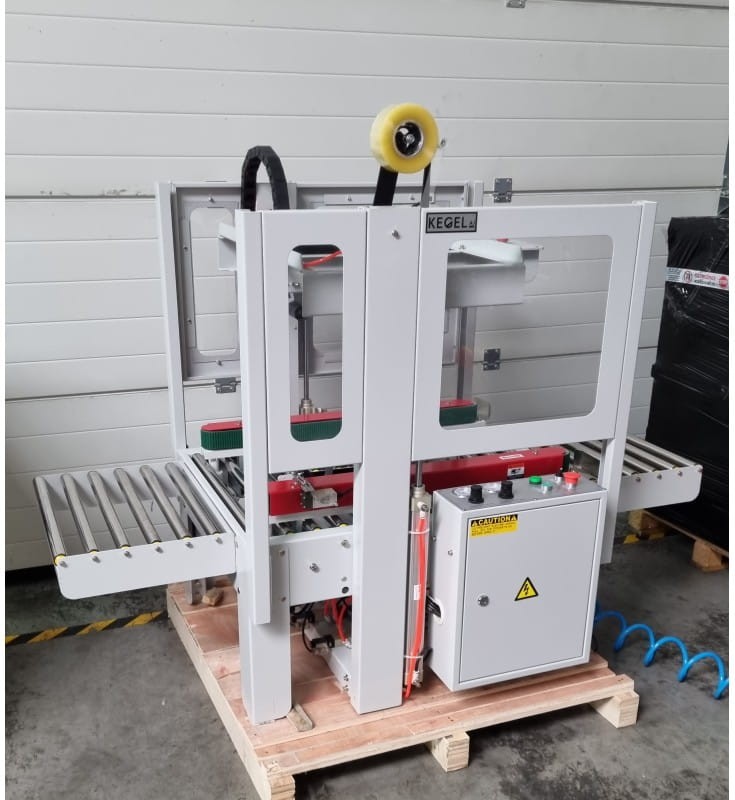

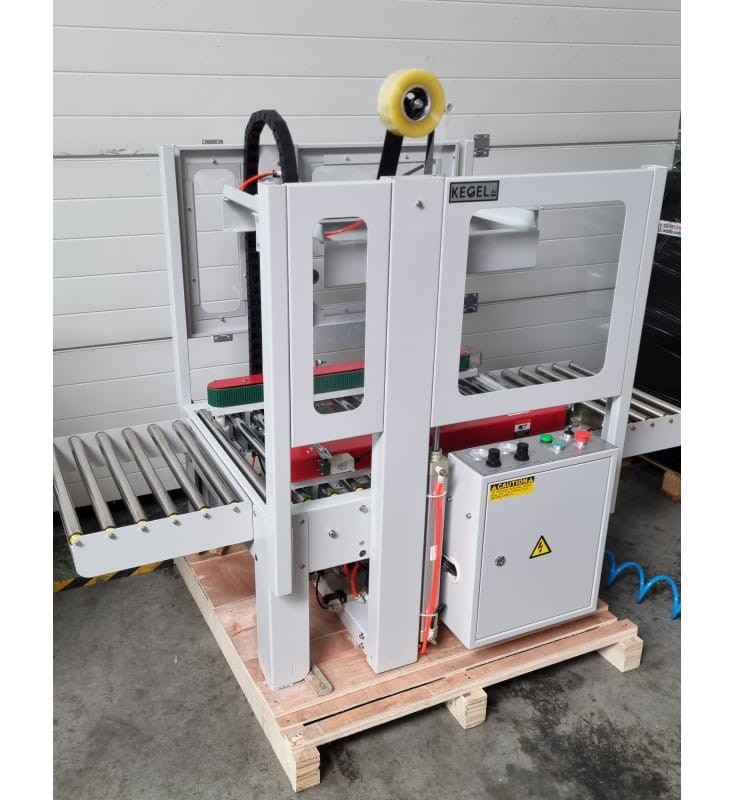

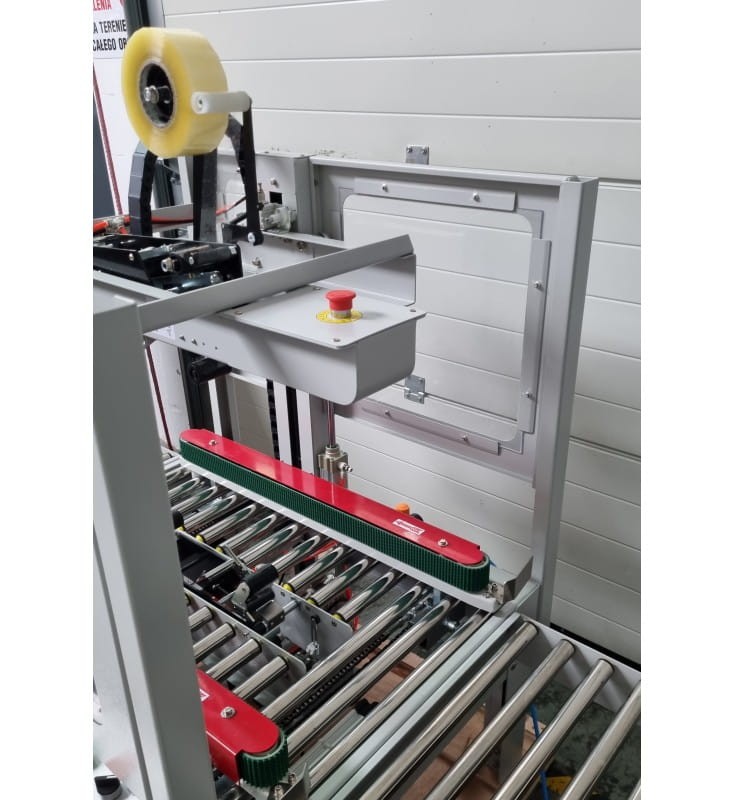

AS823A AUTOMATIC CARTON SEALER

Application:

Automatic, pneumatic device used for sealing cartons at the same time from above and below.

It adapts to each subsequent carton, making it ideal for packaging packages of various dimensions, e.g. in warehouses.

Functions:

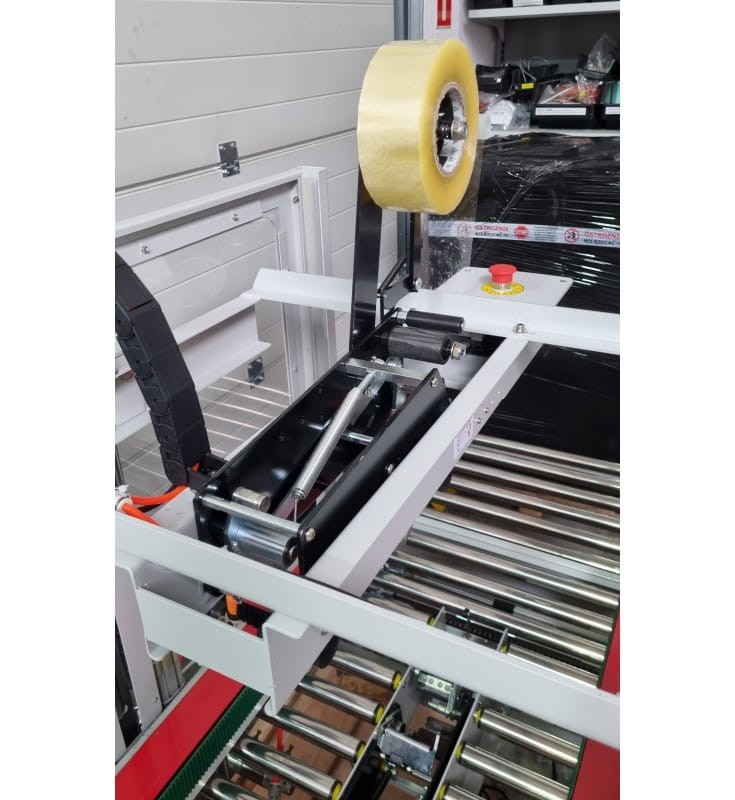

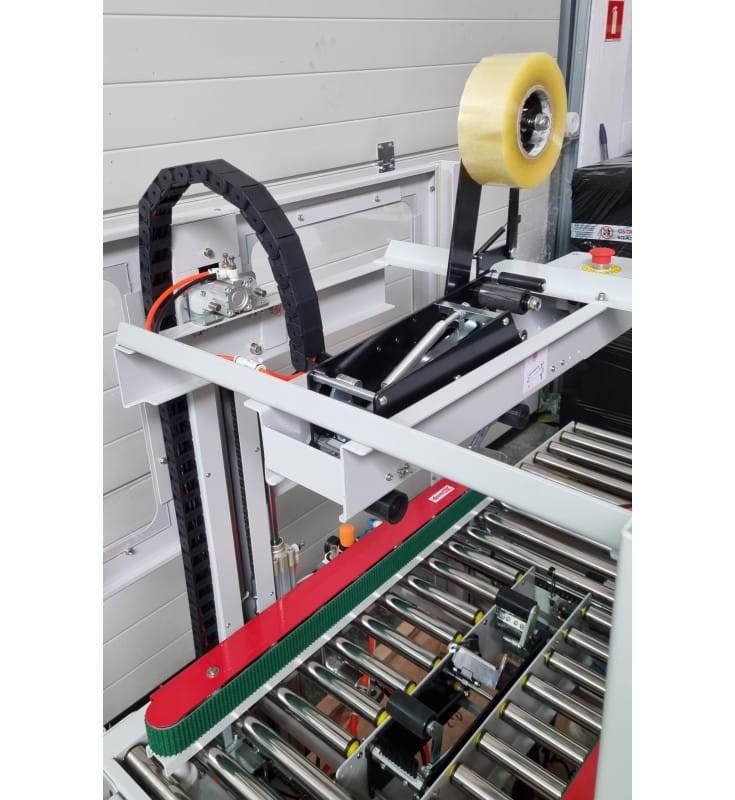

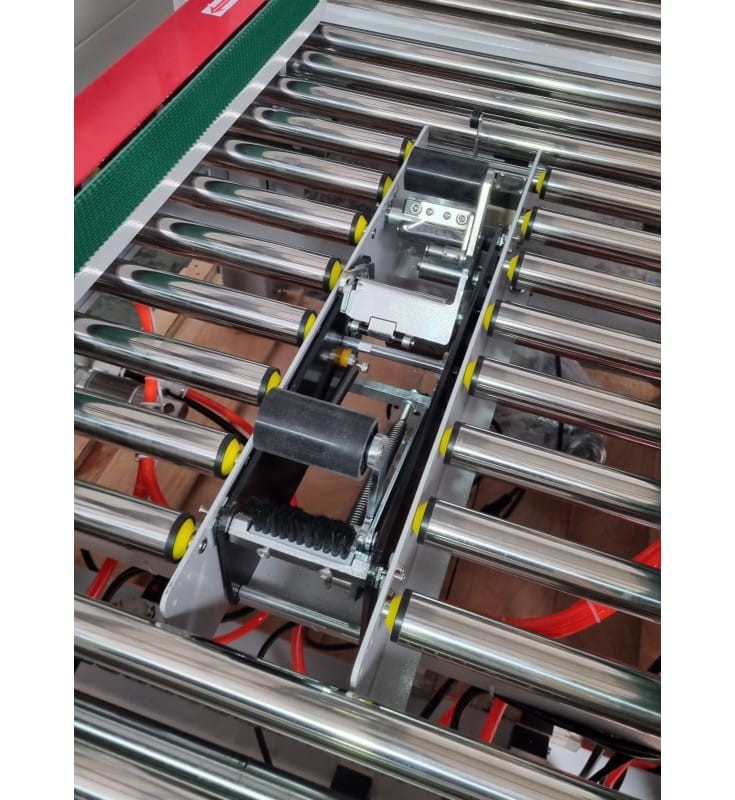

Top and bottom sealing.

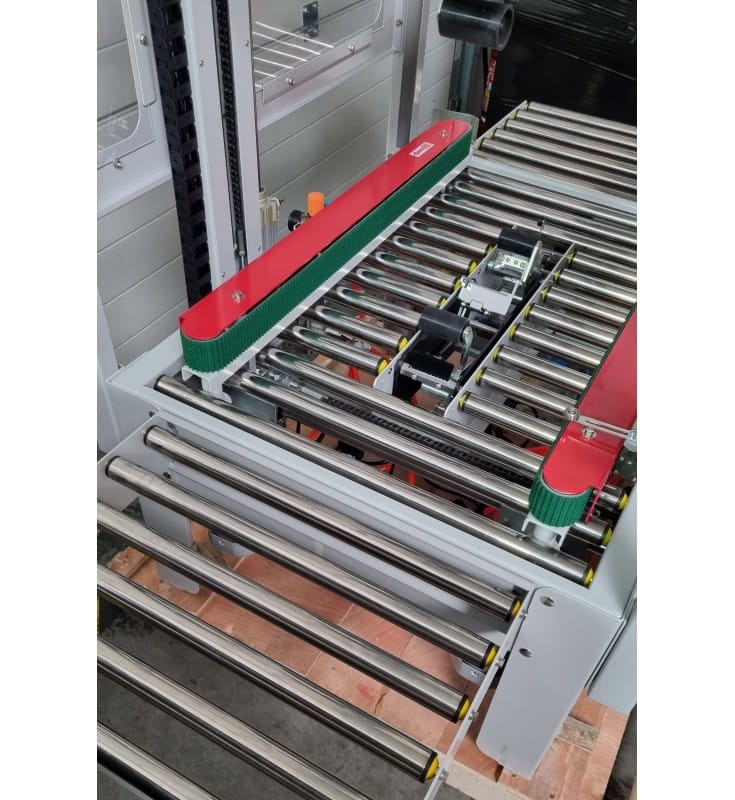

It has a bottom and top travel.

The machine is easy to use and efficient.
Requires connection of the compressor.

Technical data:
Travel power: 2 x 0.09 kW
Power supply: 230 V / 50 Hz
Compressor capacity: 250 l / min.  US 66 gal / min.

Travel speed: 16 m / min.
Min. packing dimensions [W x H]: 150 x 120 mm  US 5.9 x 4.7"
Max. packing dimensions [W x H]: 600 x 500 mm  US 23.6 x 19.7"
Length: min. 200 mm  US 7.9" , max. unlimited
Tape width: 36, 48 or 60 mm US 1.4", 1.9", 2.4"
Tape type: BOPP, PVC
The height of the worktop: 560 - 750 mm  US 22-29.5"
External dimensions [L x W x H]: 1000 x 980 x 1300 mm  US 39 x 39 x 52"
Weight: 120 kg  US 264 lb
