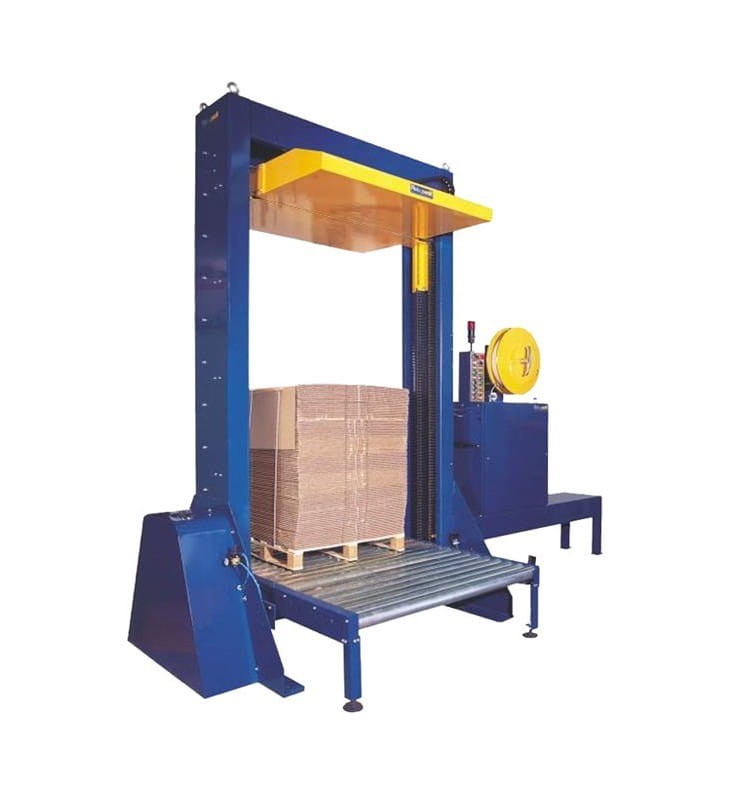

2210 STRAPPING MACHINE WITH PRESS

Application:

Automatic device designed for strapping PP, PE bulky and heavy loads on pallets.

Functions:

The weld is cooled after the end of the cycle, thanks to which the effect is more durable.

Temperature, belt tension and cooling of the welding spot electronically controlled.

The paver is equipped with a press useful for loose products that require squeezing.

At the same time, the adjustment of pressure and belt tension prevents damage to the load.

It can be programmed for 0-1 or 2 bars.

2.5 meter conveyor.

The device is efficient and trouble-free, manufactured in the EU.

Technical data:
Power: 6 kW
Power supply 380 V / 50 Hz or 230 V / 50 Hz  US 110 V
Max. package dimensions [w x L x H]: 1600 x 4000 x 2400 mm US 62.99" x 157.48" x 94.48"
Max. press pressure: 1500 kg US 3306 lb
Efficiency: 50-60 pallets / h
Types of tapes: PP, PE
Tape width: 12 - 15.5 mm US 0.47" - 0.61"
Thickness of tape: 0.7 - 0.85 mm US 0.027" - 0.033"

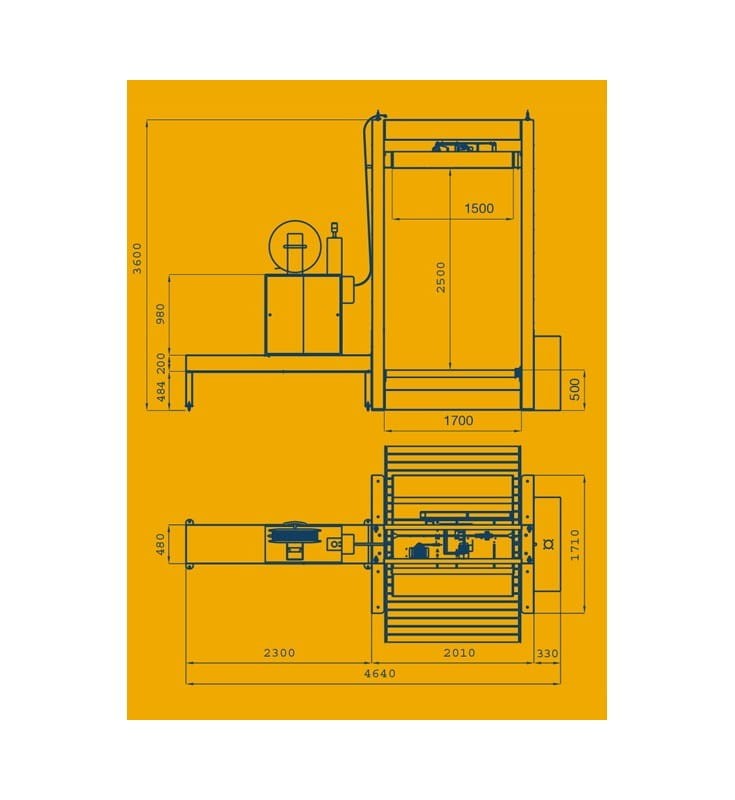

External dimensions [W x L x H]: 4640 x 1710 x 3600 mm US 182.67" x 67.32" x 141.73"
