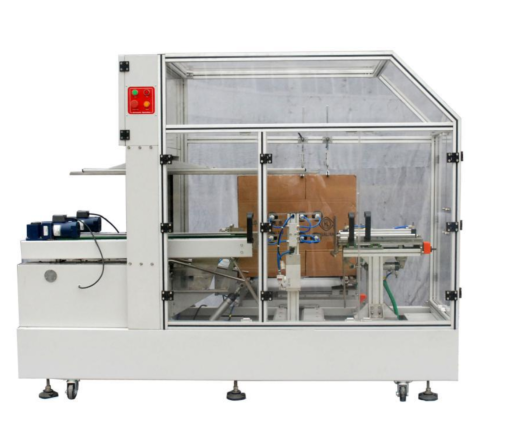

CASE ERECTOR MACHINE CXJ 6040C

Application:

Easy to use, efficient machine for folding cartons.

The device folds cartons and covers them from the bottom.

Functions:

Easy to change the size of folded cartons. Folders are widely used in factories, warehouses and other plants.

The machine has all necessary certificates including CE.

It requires connecting a compressed air source 0.5 - 0.6 MPa.

Technical data:
Power supply: 230 V / 50 Hz
Power: 0.65 kW
Working speed (adjustable) [cartons / min]: ≤ 10
Max. dimensions of the cardboard [L x W x H]: 600 x 400 x 400 mm US 23.62" x 15.74" x 15.74"
Min. Carton dimensions [L x W x H]: 350 x 250 x 250 mm US 13.77" x 9.84" x 9.84"
Platform height: 800 mm + 0-30 mm US 31.49" + 0" - 1.18"
Types of tape: BOPP, PVC, paper
Number of folded cartons in the device: approx. 100 pieces (at a thickness of 7 mm / pcs)
Tape width: 48, 60 mm US 1.88", 2.36"
Air pressure: 0.5 - 0.6 MPa
Dimensions of the device [L x W x H]: 2650 x 2500 x 1800 mm US 104.33" x 98.42" x 70.86"
Weight: 550 kg US 1212 lb
