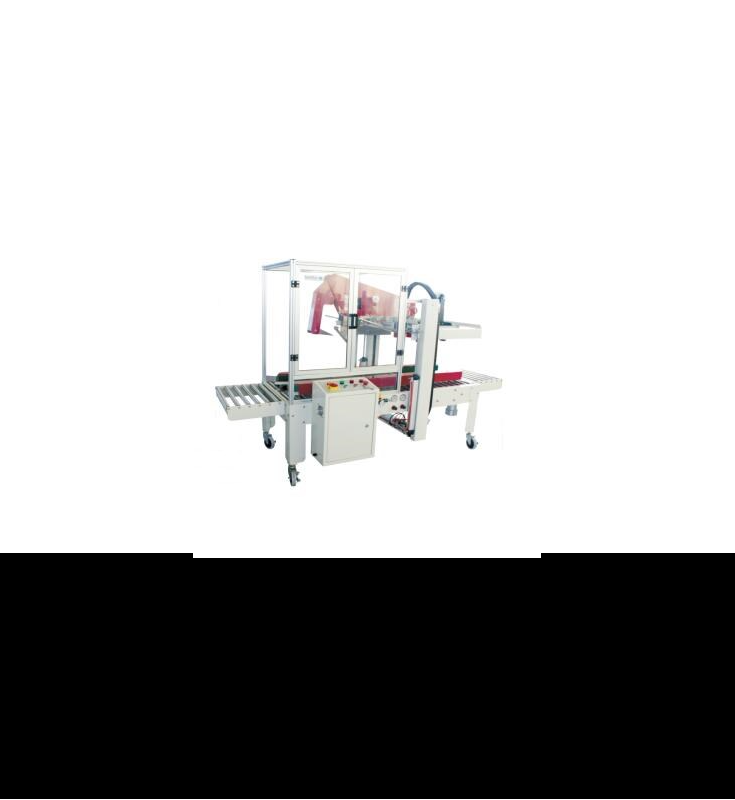

AUTOMATIC CARTON FOLD SEALING MACHINE FX-AT10060B

Application:

Automatic large size cardboard cartoner.

The device is intended especially for incorporation into an automatic production line.

Function:

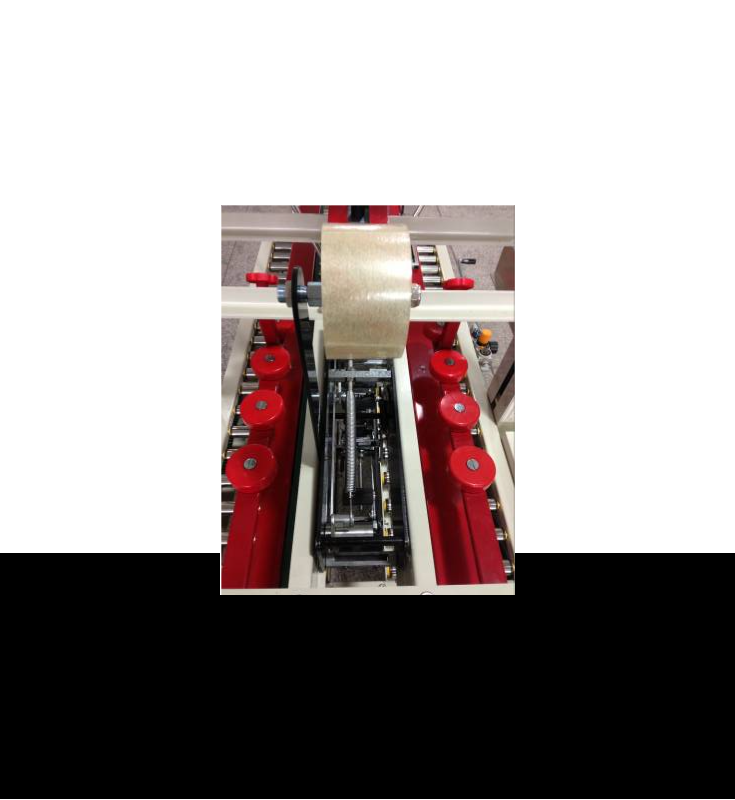

The device closes the upper flaps of the cardboard, and then seals it from the top and bottom.

Side shift model.

Simple to use.

Efficient.

Pneumatic device - requires connection of the compressor.

Technical data:
Power: 0.24 kW
Working speed: 16 m / min.  US 52.5 ft / min.
Max. packing dimensions [L x W x H]: 1000 x 600 x 1000 mm  US 39 x 23,6 x 39"
Min. packing dimensions [L x W x H]: 400 x 250 x 250  US 15,7 x 9,84" x 9,84
Tape width: 63,5 or 76,2 mm  US 2,5" or 3"
External dimensions [L x W x H]: 1780 x 950  x 1640 mm  US 70 x 37,4 x 64,5"
Weight: 260 kg  US 573 lb
