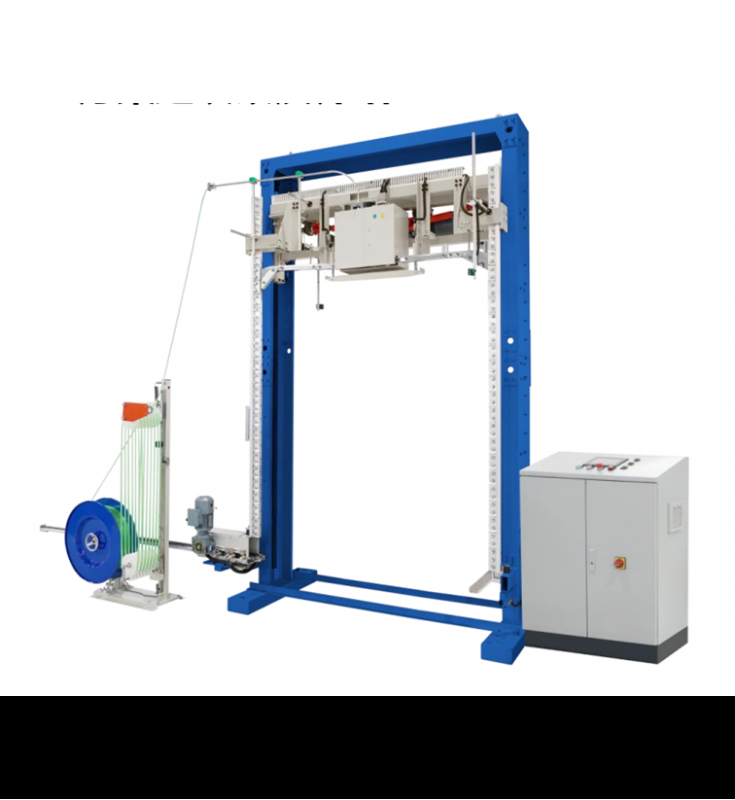

VERTICAL STRAPPING MACHINE TS-111

Application:

Automatic device designed for strapping PP, PE bulky and heavy loads on pallets.

Functions:

The weld is cooled after the end of the cycle, thanks to which the effect is more durable.

Temperature, belt tension and cooling of the welding spot electronically controlled.

Belt tension control.

At the same time, the adjustment of pressure and belt tension prevents damage to the load.

The device is efficient and trouble-free.

Technical data:
Power: 3 kW
Power supply 380 V / 50 Hz

Max. package dimensions [L x W x H]: unlimited length, 1350 x 2000 mm

Min. package dimensions [L x W x H]: 1200 x 800 x 800 mm

Pallet weight: 400 kg

Capacity: 35 pallets / h

Striping force: 200-2500 N

Tape Types: PET

Tape width: 16 mm

Tape thickness: 0.7 - 0.9 mm

Unit dimensions [L x W x H]: 5650 x 1250 x 3950 mm
