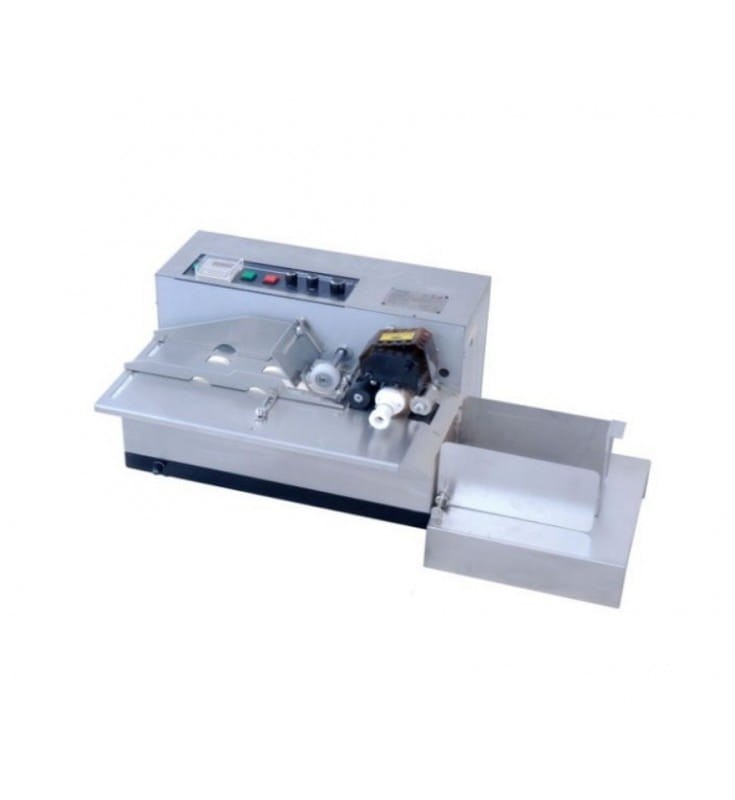

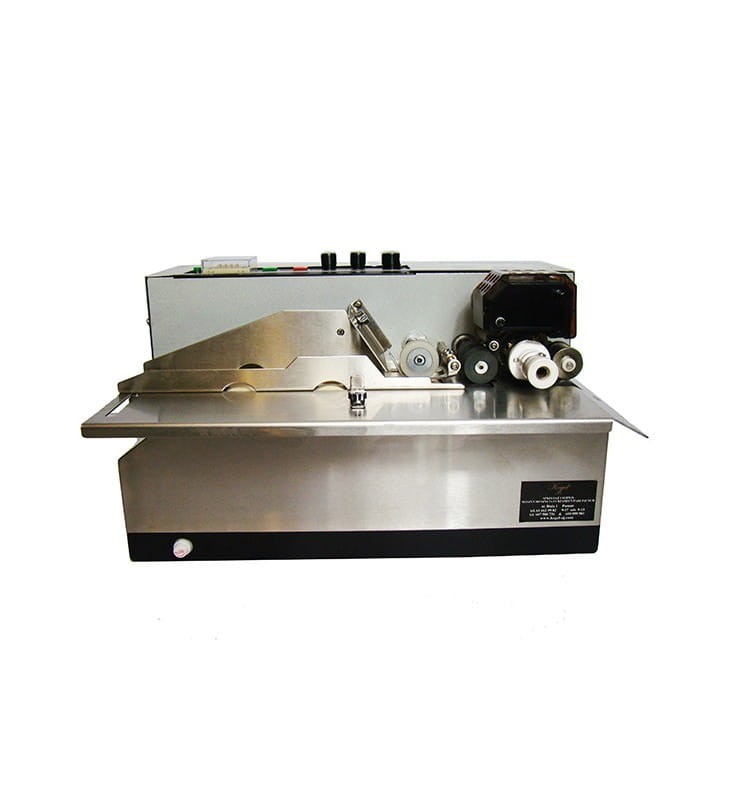

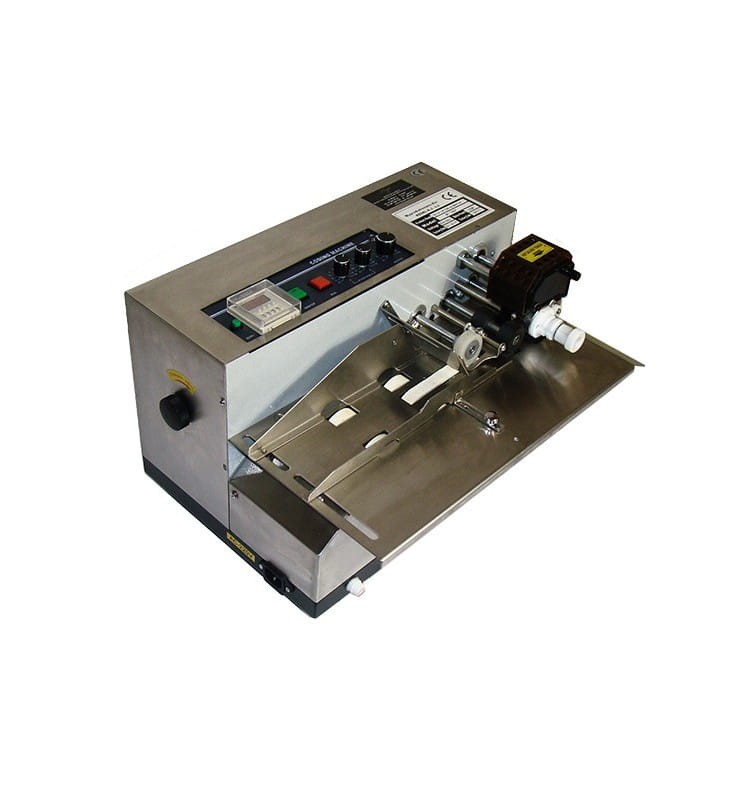

MY 380F SOLID-INK CODING MACHINE

Application:
MY-380F machine print expiry date code, lot number, batch number, etc. on paper box, card and label.
The machine will automatically working when a stack of labels is putted in the feeding box.

It is widely used in pharmacy, cosmetic industries.
Functions:
Adopt photoelectric mechanism technology, featuring automatic temperature control, auto counting & adjustable print position.
Adopt solid-ink coding with selectable color, featuring legible printing, instant printing-instant drying and strong adhesion.
There're types in size of 1.5mm, 2mm, 2.5mm & 3mm for selection.
Fit for printing codes on paper, thin paper board, plastic film and aluminum foil.
The machine is automatic, with high speed & high efficiency up to 300pcs/minute.
Technical parameters:
Power: 0.18 kW
Power supply: 230 V / 50 Hz  US 110 V
Working speed: up to 300 pcs./min.
Dimensions of the ink roller: 35 x 32 mm  US 1,3 x 1,2"
Sheet size: length 50-500 mm, width 30-190 mm  US 1-7"
Font size: 2 x 3 mm  US 0,08 x 0,1"
Print range: up to 10 lines, up to 10 characters per line
External dimensions [L x W x H]: 440 x 345 x 300 mm  US 17 x 14 x 12"
Weight: 23 kg  US 51 lb

The font set contains the following characters:
0 x 10 items
1 x 8 items
2 x 6 items
3, 4, 5, 6, 7, 8, 9 x 4 pcs.
D, E, F, L, M, O, P, T, X x 2 pcs.
