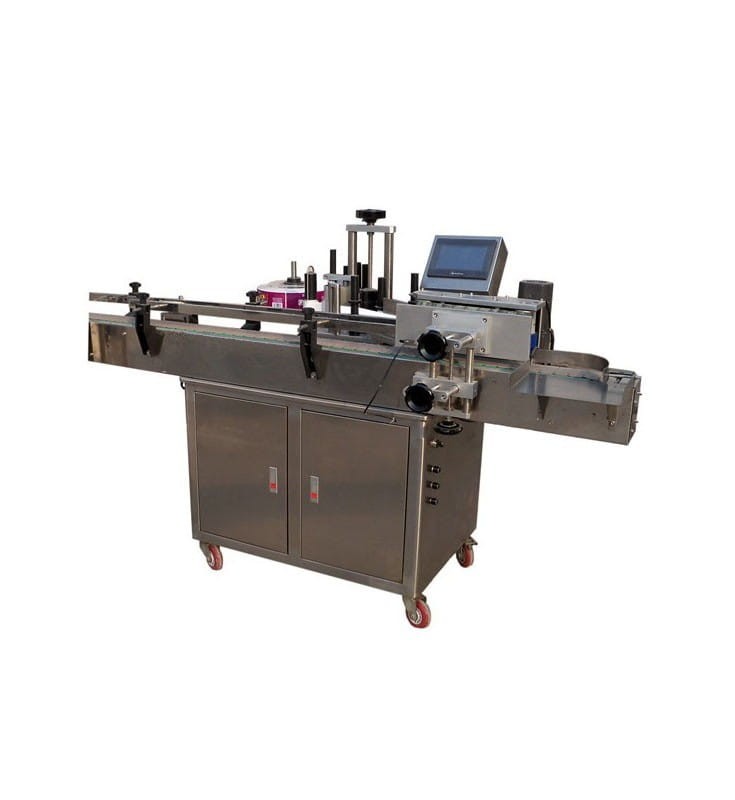

AUTOMATIC ROUND BOTTLE LABELING MACHINE AT TB YP

A professional, industrial device designed for automatic wrapping of bottles and other round-shaped containers with labels in the form of role stickers.
The machine was made using high quality production components, including Japanese and French.
The device can be integrated into an existing production line.
It can also be successfully used as an independent workplace.
The machine can be intended for contact with art. food.
All elements in contact with the product have a smooth surface or are made of stainless steel, resistant to corrosion.

Application:
The device is used in the food, chemical, pharmaceutical and cosmetics industries.

Functions:
Simple operation
Easy to adjust
Equipped with a photocell guaranteeing high accuracy
Stamp
The device is controlled via a simple touch panel

Technical data:
Power: 200 W
Power supply: 230 V / 50 Hz
Efficiency: 100 - 250 pcs / min. (depending on product size and label)
Belt conveyor speed: adjustable in the range of 0 - 23 m / min. US 0" - 905.5"
Bottle height: above 20 mm US 0.787"
The diameter of the bottle: 20 - 80 mm US 0.787" - 3.14"
The diameter of the label's role: less than 300 mm US 11.81"
Inner diameter of the label roll: over 76 mm US 2.99"
Accuracy: +/- 1 mm US +/- 0.039"
Dimensions [L x W x H]: 1700 x 650 x 1300 mm US 66.92" x 25.59" x 51.18"

Extra paid options:
Full stainless steel version
Alarm signaling the end of a label on a roll
