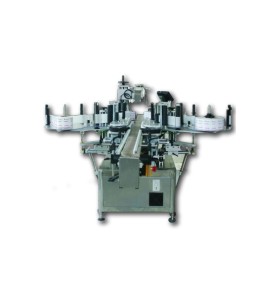

BOTTLE LABELER WITH A STAMPING MACHINE LSJ 3500

LSJ3500 Automatic Double-Sided Labeling Machine – Efficiency, Precision, Reliability!

Are you looking for a reliable labeling machine? The LSJ3500 is an automatic double-sided labeling machine designed for maximum efficiency and precision. It is an excellent solution for companies involved in packaging products in glass bottles, plastic bottles, and other cylindrical containers, as well as custom-shaped items (available upon request).

Key Advantages:

• Versatility – ideal for glass, plastic, cylindrical, and conical bottles.

• High Labeling Speed – from 30 to 100 pieces per minute, significantly increasing production efficiency.

• Precision – advanced servo motor ensures positioning accuracy with a tolerance of ±1 mm.

• Ease of Use – intuitive PLC control system with a touchscreen panel makes daily operations simple.

• Adjustability – the labeling position and conveyor height can be adjusted to meet production line requirements.

• Robust Construction – made of stainless steel and high-quality components, ensuring long-lasting durability.

Technical Specifications:

• Labeling Speed: 30-100 pcs/min

• Product Height: 30-350 mm

• Product Diameter: 25-100 mm

• Label Height: 15-150 mm

• Label Length: 20-200 mm

• Labeling Accuracy: ±1 mm

• Label Roll Inner Diameter: 76 mm

• Label Roll Outer Diameter: 380 mm

• Power Supply: 220V, 3.5 kW, 50/60 Hz

• Machine Dimensions: 2800 x 1700 x 1550 mm

• Weight: 400 kg

Additional Options:

• Option to add a code printer (on request).

• Specially designed conveyor for standalone operation or integration with a production line.

• Feeding and collecting tables.

At the end of the labeling process, it is possible to use a DATE STAMPER, which allows for precise application of expiration dates or batch numbers, further enhancing the machine's functionality.

Invest in the LSJ3500 and elevate the quality of your production!
