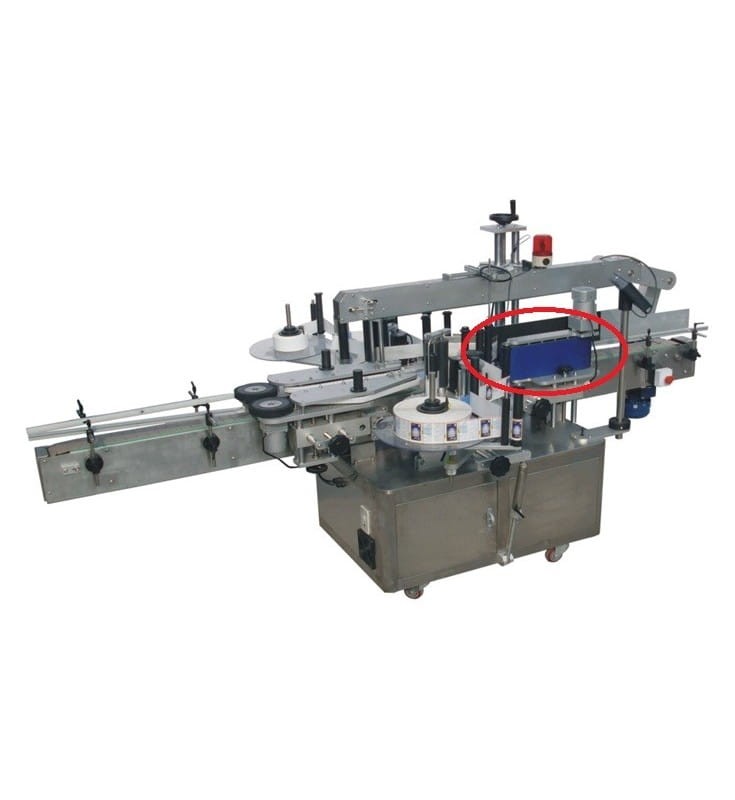

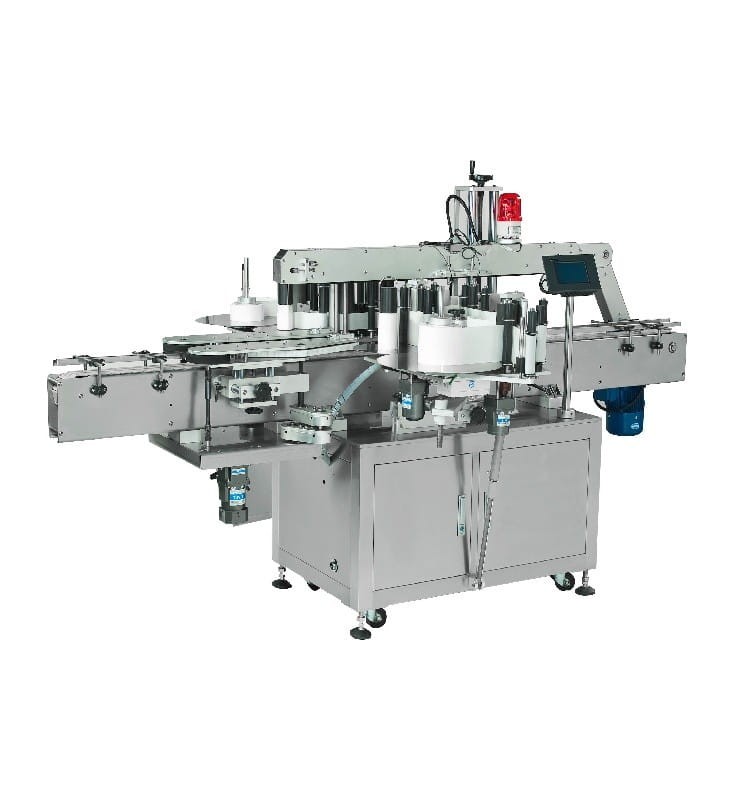

POSITIONAL ROUND BOTTLE LABELLING MACHINE MT 500T

Application:

Professional, industrial device designed for automatic wrapping of round bottles or cans.

The device is suitable for labeling a bottle (with one label around the bottle), or for flat containers (label on both sides).

Round bottle is only one label.

If you want to label round bottle, you can turn on the round labeling unit.

If you want to label flat bottle, you need turn off the round labeling unit for round bottle.

You need do some adjustment on machine when you change from using round bottle to flat bottle, And change from usig flat bottle to round bottle you need do adjustment too.

The machine is suitable for bottles and cans made of plastic or glass.

It is also used for conical bottles.

Made using high quality components.

The labeling machine is widely used in many industries, including food, pharmaceutical, chemical.

Functions:

The device can be integrated into an existing production line.

It can also be successfully used as an independent workplace.

Equipped with a photocell guaranteeing high accuracy and aesthetics.

Controlled by means of a simple HMI panel that allows easy parameter changes.

It has a system for detecting damaged labels, no labels, no bottles - signals the above. situations and stops work when they occur.

When it doesn't detect the bottle, it goes into a power saving state.

European components - Weintec, Siemens, Panasonic etc.

Technical data:

Power supply: 230 V / 50 Hz

Labeling speed: 30-100 pcs/min

Labeling accuracy: +/- 1 mm

Product size:

Length: 20 - 250 mm

Width: 30 - 90 mm

Height: 60 - 280 mm

Label dimensions:

Width: 20 - 175 mm

Length: 20 - 200 mm

Label roll outer diameter: < 200mm

Label roll inner diameter: 76mm

Dimensions [L x W x H]: 3000 x 1450 x 1600 mm

Extra paid options:

Full stainless steel version

Stamp

Alarm signaling the end of labels on the roll
