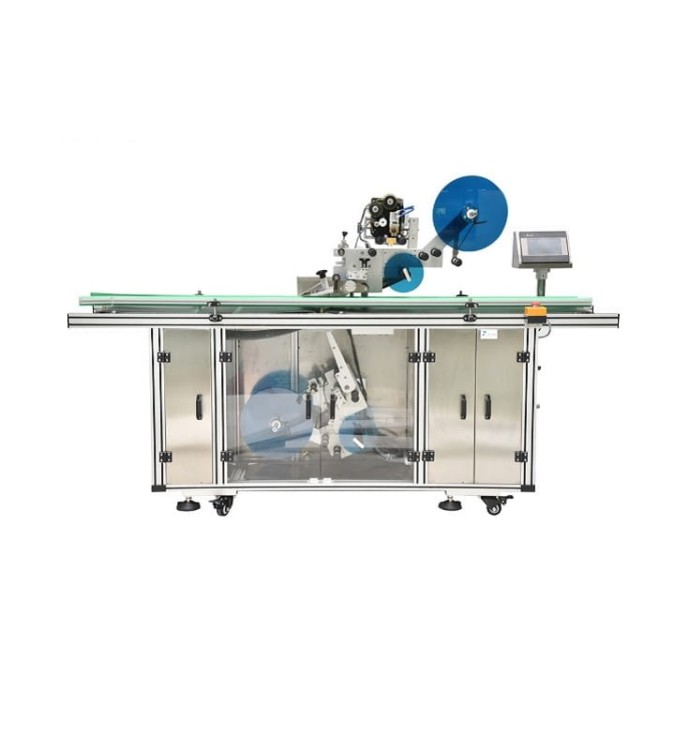

TOP DOWN LABELLING MACHINE CH 150SG

Application:

Professional device designed for labeling the role of products from above from below.

Modern technology ensures the highest achievable level of performance.

The electronic control system synchronizes the work of the machine.

This system provides high versatility and flexibility as well as excellent dynamics.

Modern technology together with reliability, ergonomic design and easy cleaning allows for convenient use.

The construction of the machine excludes penetration of the substance into the product.

All surfaces in contact with the product have smooth surfaces or are made of corrosion-resistant stainless steel.

The device is used in the food, chemical, pharmaceutical and cosmetics industries.

Functions:

Simple operation

Easy to adjust

Equipped with a product detection photocell

Stamp

Smoothness of work regulated

Control via a simple panel

European components - Weintec, Siemens, Panasonic etc.

Technical data:

Power supply: 230 V / 50 Hz  US 110 V

Capacity: 20 - 60 pcs / min.

Accuracy: +/- 1 mm  US 0,04"

Product dimensions [L x W x H]: 40-400 x 40-200 x 0,2-150 mm  US 1,5-15,7 x 1,5-7,9 x  0,008-5,9"

Label length: 6-320 mm  US 0,2-12,6"

Label width: 15-150 mm  US 0,6-5,9"

External dimensions [L x W x H]: 2200 x 780 x 1400 mm  US 86,6 x 30,7 x 55"

Weight: 250 kg  US 551 lb

Extra paid options:

Full stainless steel version
