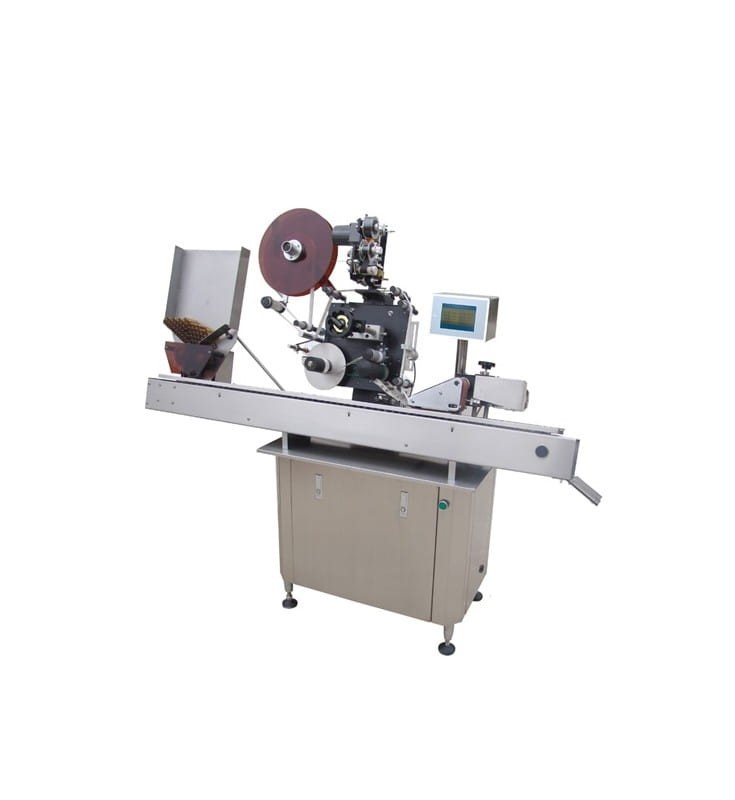

LABELING MACHINE FOR SMALL BOTTLES MT 300

Application:

Professional, industrial device designed for automatic wrapping of round small bottles and vials with role labels.

Made using high quality production components, including Japanese and French.

The device can be integrated into an existing production line.

It can also be successfully used as an independent workplace.

Modern technology ensures the highest achievable level of performance.

It has been designed in such a way as to avoid the risk of infection, illness or infection.

All elements in contact with the product have a smooth surface or are made of corrosion-resistant stainless steel.

The device is used in the food, chemical, pharmaceutical and cosmetics industries.

Functions:

Simple operation

Easy to adjust

The device is equipped with a photocell

High precision

High accuracy and aesthetics

Damaged Label Detection System

Operation via touch panel

Work on vials, test tubes, small products that require precision.

European components - Weintec, Siemens, Panasonic etc.

Technical data:

Power: 0,5 kW

Power supply: 230 V / 50 Hz  US 110 V

Work direction: two-way

Capacity: 0-220 pcs / min.

Product dimensions:

Diameter 18-21 mm  US 0,7 - 0,8"

Heigth 25-100 mm  US 1 - 3,9"

Label Size:

Length: 20-150 mm  US 0,8 - 5,9"

Width: 20-100 mm  US 0,8 - 3,9"

Accuracy: ± 1 mm  US 0,04"

Outer diameter of the roll with label: ф 200 mm  US 7,9"

Inner diameter of the roll with the label: ф 75 mm  US 3"

External dimensions [L x W x H]: 1600 x 600 x 1400 mm  US 63 x 24 x 55"

Weight: 150 kg  US 331 lb

Possibility to upload the menu in other language.

Extra paid options:

Full stainless steel version

Form for another dimension of the product
