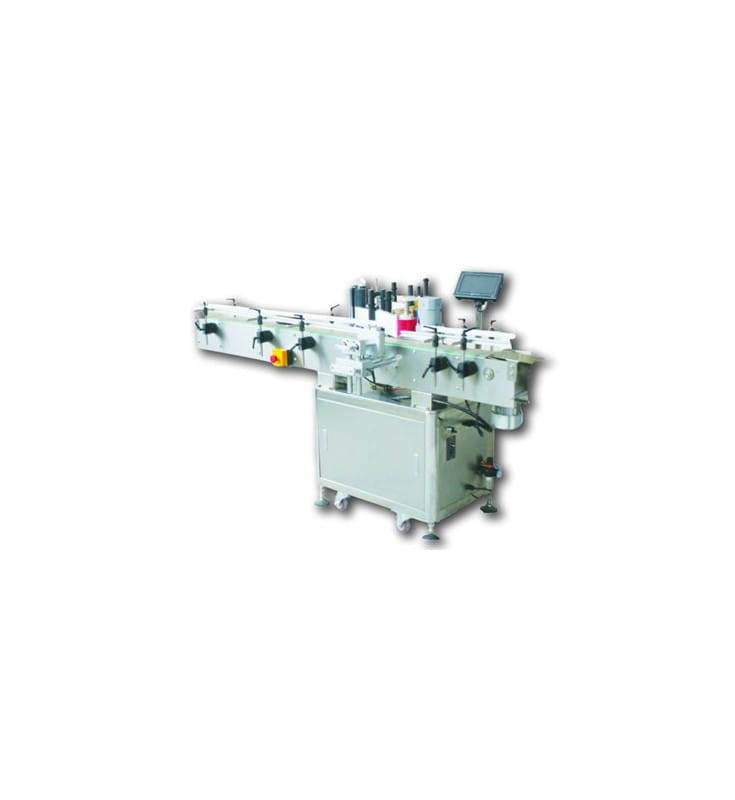

ROUND BOTTLE LABELING MACHINE LDJ 200

Application:

It is one of the round bottle labeling machine, be specially used to label, can be for one piece or double pieces, front and back label can be flexible adjustment. Has function to label for taper bottle. Select setting up position fixed mechanism, can be true for labeling at a fixed place. Can work separately or work connect with assembly line or filling line.

All elements in contact with the product have a smooth surface or are made of stainless steel, resistant to corrosion.

The device is used in the food, chemical, cosmetic and pharmaceutical industries.

Functions:

Equipped with a photocell guaranteeing high accuracy and aesthetics as well as a system for detecting damaged labels (too short, unprinted, wrinkled).

Easy to adjust.

Easy to use touch screen.

European components - Weintec, Siemens, Panasonic etc.

Technical data:

Power: 1,5 kW

Power supply: 220 V / 50 Hz

Capacity: 25-50 pcs/min

Bottle height: 60-280 mm

Bottle diameter: 30-90 mm

Label width: 15 - 180 mm

Label length: 20 - 200 mm

Dimensions [LxWxH]: 2100 x 1200 x 1300 mm

Weight: 180 kg

Extra payd options:

Date coder

Total stainless steel version
