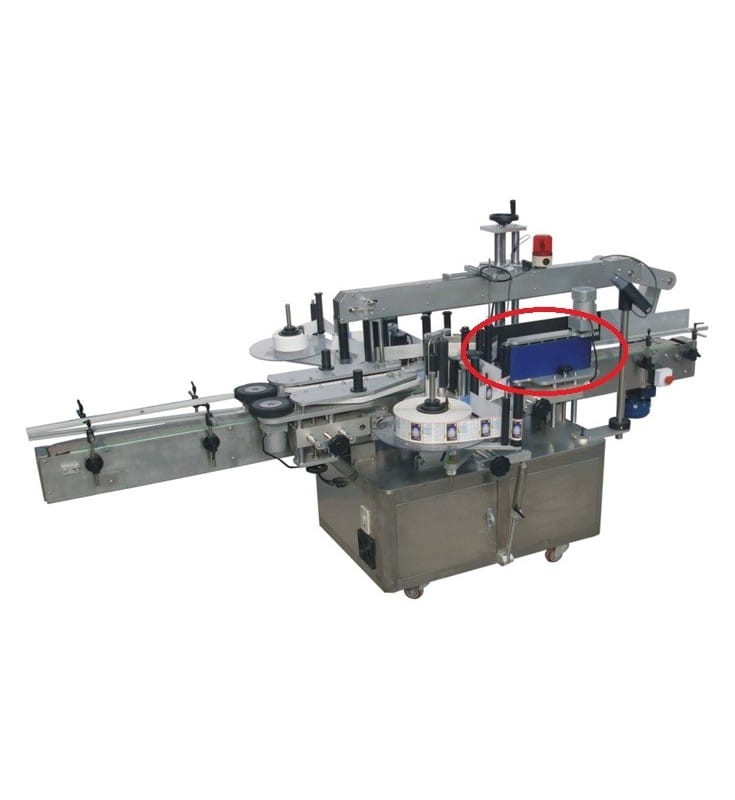

DOUBLE FACE BOTTLE LABELING MACHINE MT-500B

Application:

Professional, industrial device designed for automatic wrapping of bottles around labels with a role.
The machine is suitable for round plastic and glass bottles.
Made using high quality production components, including Japanese and French.
The device can be included in the production line.
It can also be a separate workplace.
Modern technology ensures the highest achievable level of performance.
It has been designed in such a way as to avoid the risk of infection, illness or infection.
All elements in contact with the product have a smooth surface or are made of stainless steel, resistant to corrosion.
The device is used in the food, chemical, pharmaceutical and cosmetics industries.
Functions:
Simple operation
Easy to adjust
The device is equipped with a photocell
High precision
High accuracy and aesthetics
Damaged label detection system
Operation via touch panel

Requires compressor connection

Technical data:
Power supply: 230 V / 50 Hz

Labeling speed: 30-100 pcs / min

Labeling accurate: ±1 mm (depending on the error of the bottle itself)
Product size:
Length: 20-250 mm

Width: 30-90 mm
Height: 60 - 280 mm
Label width: 20 - 175 mm
Label length: 20 - 200 mm
External dimension [L x W x H]: 3000 × 1450 × 1600 mm

Extra paid options:
Full stainless steel 316 version
Stamp
Alarm signaling the end of labels on the roll

Higher quality components - e.g. Siemens panel
