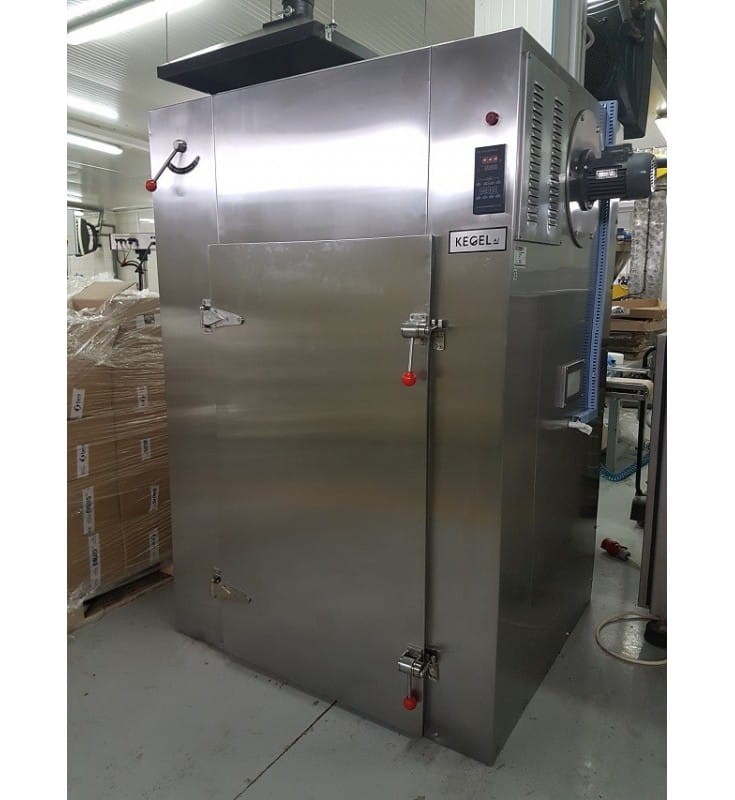

GARLIC DRYING MACHINE GG 50 / RXHBO

Applicaation:

Electric tray drying oven widely used in the pharmaceutical, herbal and chemical industries - in other words, where there are used dried products, such as active pharmaceutical ingredients, powder, granules, medicines, spices, salt, pigments, dried vegetables and fruits, food, and also in the production of electric, paper, leather and woolen items.

Functions:

Dryer and trays made of stainless steel.

Easy to use and maintenance.
Technical data:

Power: 0.45 kW (engine) + 9 kW (heater)/ 380V50 Hz
Working temperature: max. 130 ° C
Tray load capacity: up to approx. 3 kg  US 6.6 lb (for best results, a maximum powder height of 30 mm US 1.2" is recommended)
Capacity: 60 kg / cycle  US 132 lb / cycle
Duration of the cycle: approx. 1.5 hours
Air flow: 3400 m³ / h  US 3400 CBM / h
Number of trolleys in the dryer: 1
Number of trays: 24
Dimensions of the tray [L x W x H]: 640 x 460 x 45 mm  US 25.2 x 18.1 x 1.8"
External dimensions [L x W x H]: 1400 x 1200 x 2000 mm  US 55 x 47 x 79"

Weight: 380 kg
