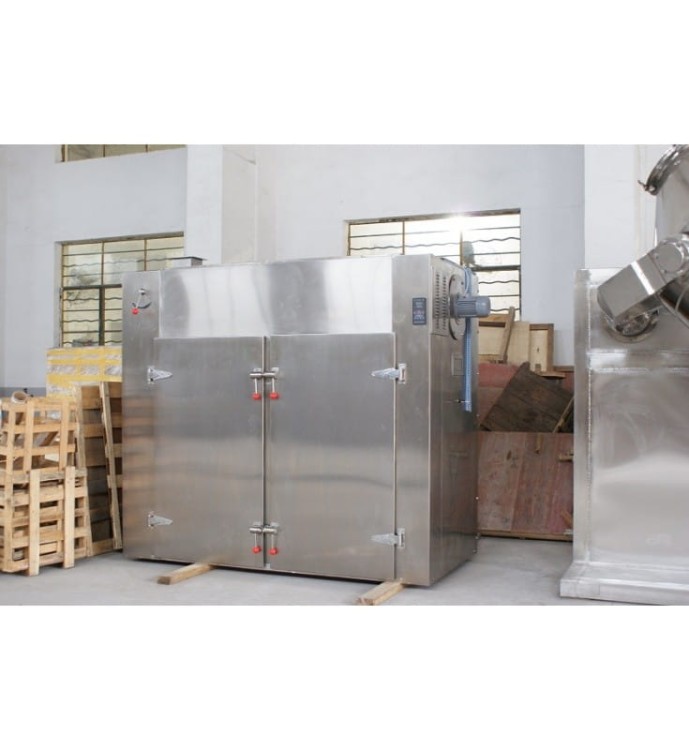

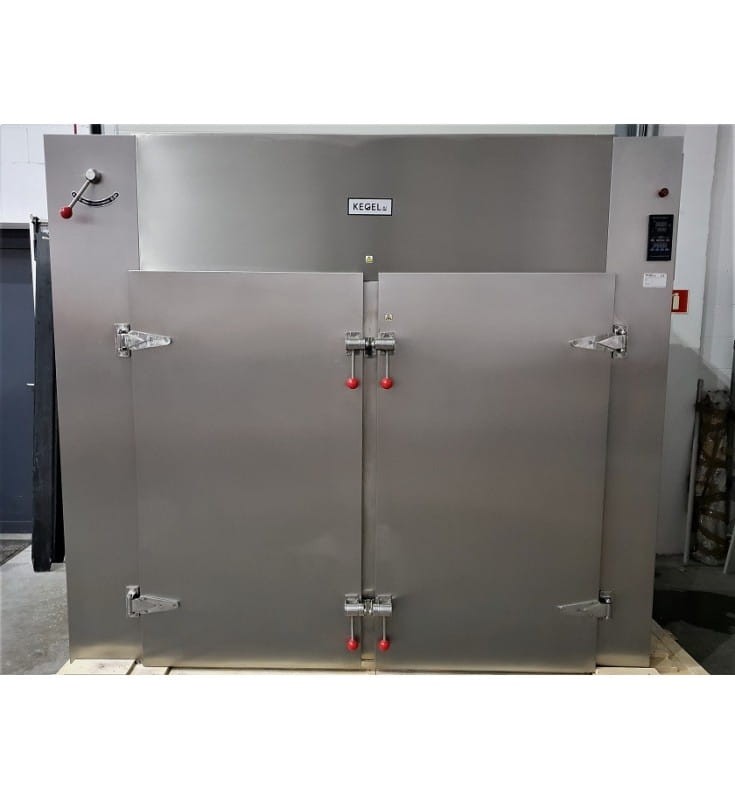

VEGETABLE AND POWDER DRYING OVEN HL‑B‑IV – 8 CARTS / 192 TRAYS

Description

The HL‑B‑IV four‑door, eight‑car hot air circulation oven is a modern device designed for drying and dehumidifying products across multiple industries, including pharmaceuticals, chemicals, food, plastics, light industry, and electronics. With internal hot air circulation, the drying process is uniform and energy consumption is optimized. Automatic temperature control with PID regulation ensures precise thermal parameters, while a specially designed air distributor guarantees consistent temperature distribution throughout the chamber.

The oven interior is made of 304 stainless steel, TIG welded and polished, with rounded corners eliminating dead zones – fully compliant with GMP requirements. Silicone seals resistant to 180°C and robust container‑type latches provide safe and tight operation. The oven is equipped with high‑, medium‑, and low‑efficiency air filters, ensuring process cleanliness. Low‑noise axial fans maintain stable airflow and reduce operating noise.

The unit is delivered with full documentation, CE marking, and a Polish‑language operating manual.

Applications and Benefits

• Drying and dehumidifying products in pharmaceutical, food, chemical, light industry, and electronic sectors

• Even temperature distribution throughout the chamber thanks to a specialized air distributor

• Automatic temperature control with overheat alarm and safety shut‑off

• 304 stainless steel construction – hygienic, durable, and easy to clean

• Quiet operation due to energy‑saving axial fans

• Fully CE‑certified and GMP‑compliant

Technical specifications

• Model: HL‑B‑IV four‑door, eight‑car oven

• Overall dimensions: 4300 × 2200 × 2280 mm

• Operating temperature range: 60–130°C

• Number of drying cars: 8

• Number of baking trays: 192

• Heating method: steam heating

• Heat dissipation area: 100 m²

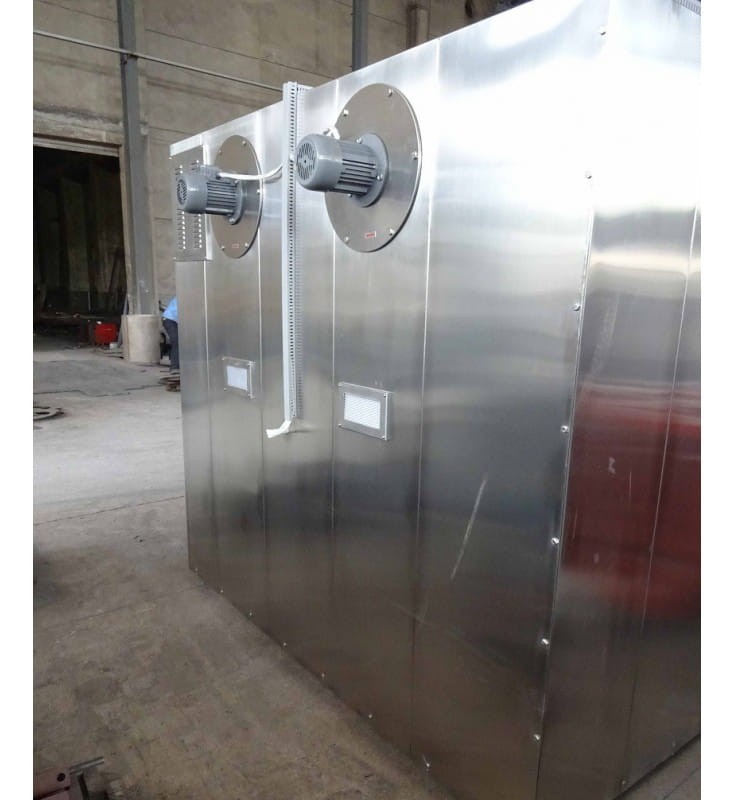

• Fan power: 0.75 kW × 4 units

• Air volume: 5000 m³/h × 4 units

• Dehumidification fans: 0.37 kW × 2 units

• Insulation material: aluminum silicate fiber, heat‑resistant up to 300°C

• Air filters: high‑ and medium‑efficiency at the inlet, medium‑ and low‑efficiency at the outlet

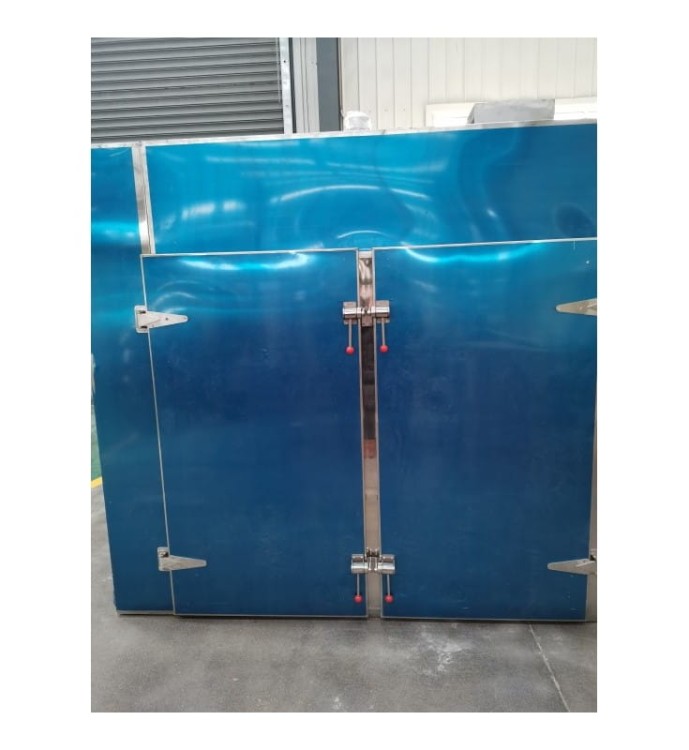

• Door design: container‑type latches with tensioning device, silicone seals resistant up to 180°C

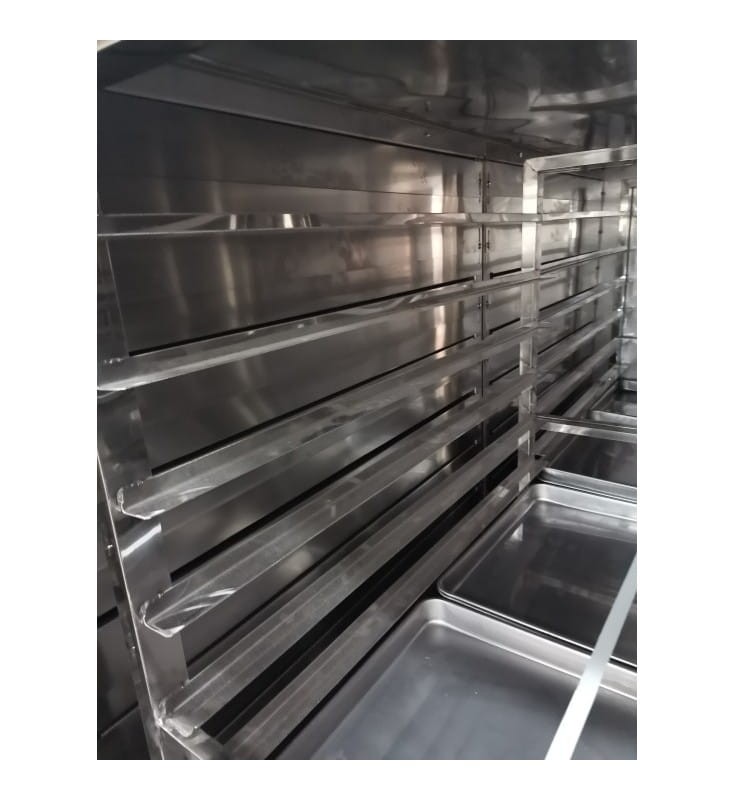

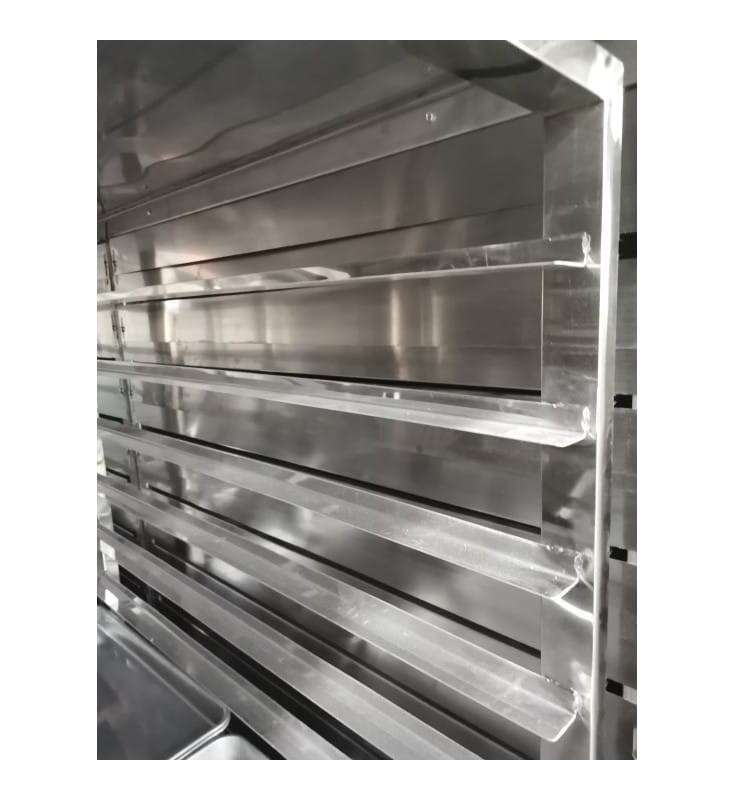

• Interior structure: fully welded with rounded transitions, easy to clean

Standard equipment

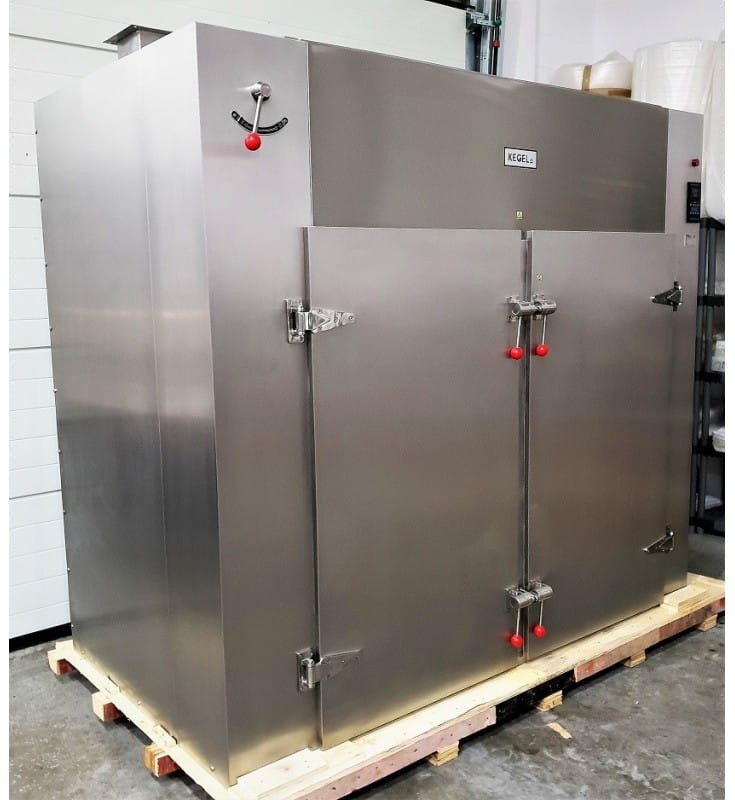

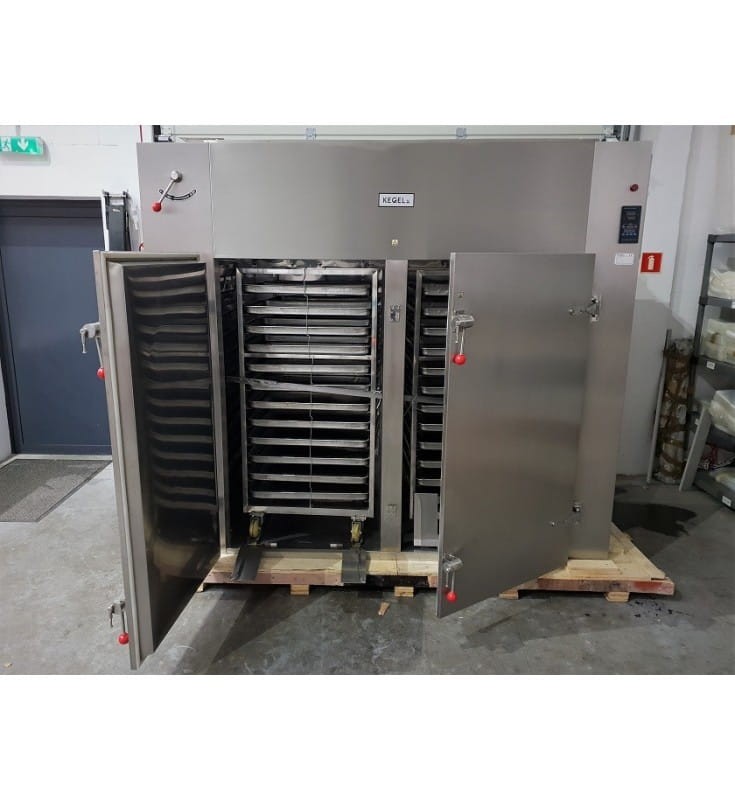

• HL‑B‑IV four‑door, eight‑car hot air circulation oven

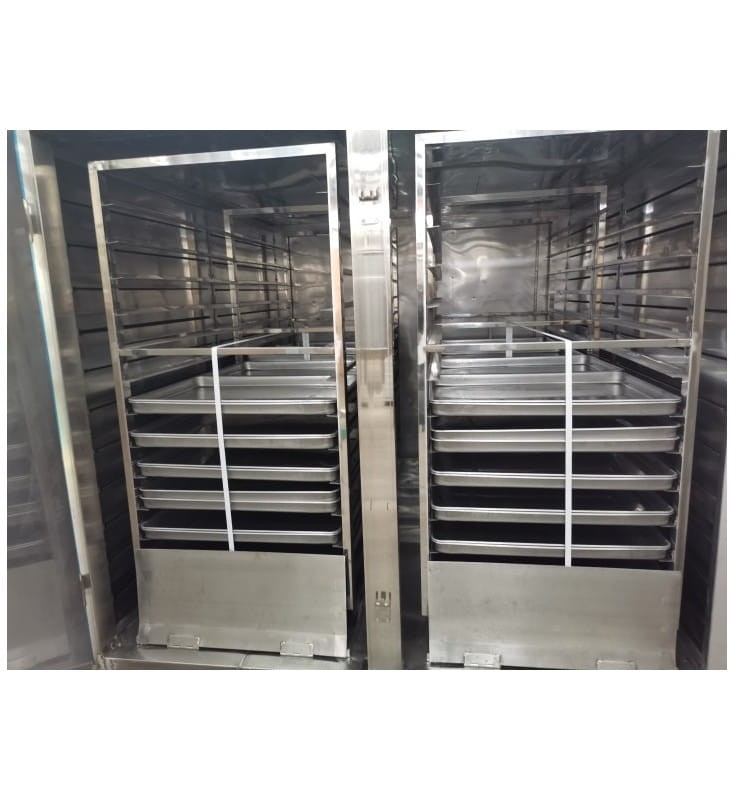

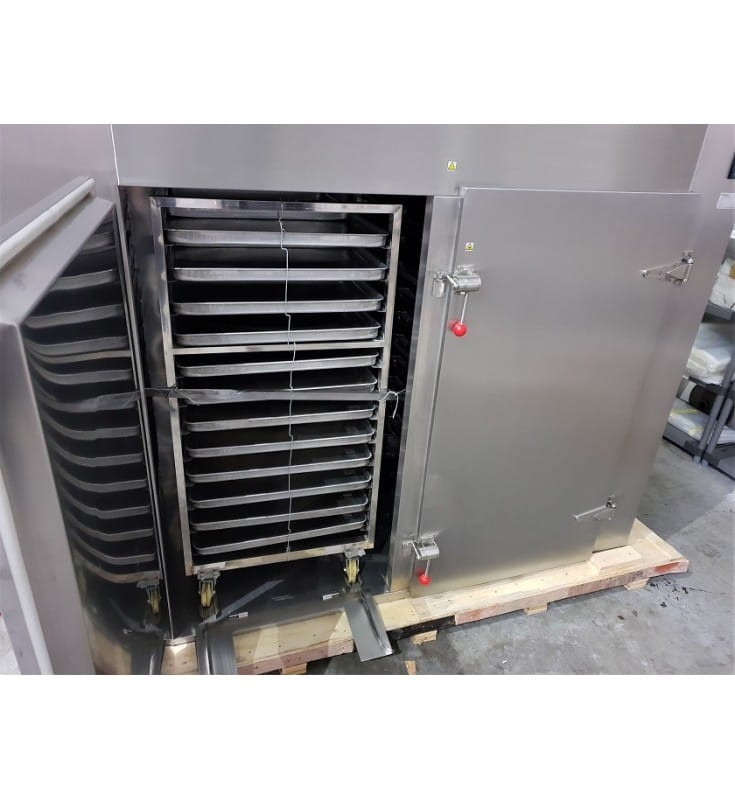

• 8 stainless steel drying cars (304 grade)

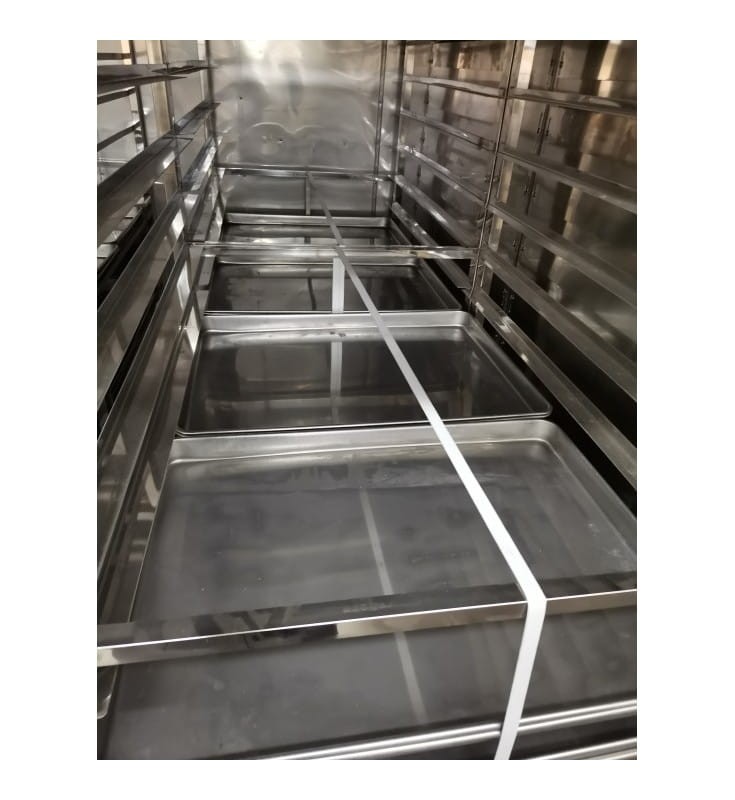

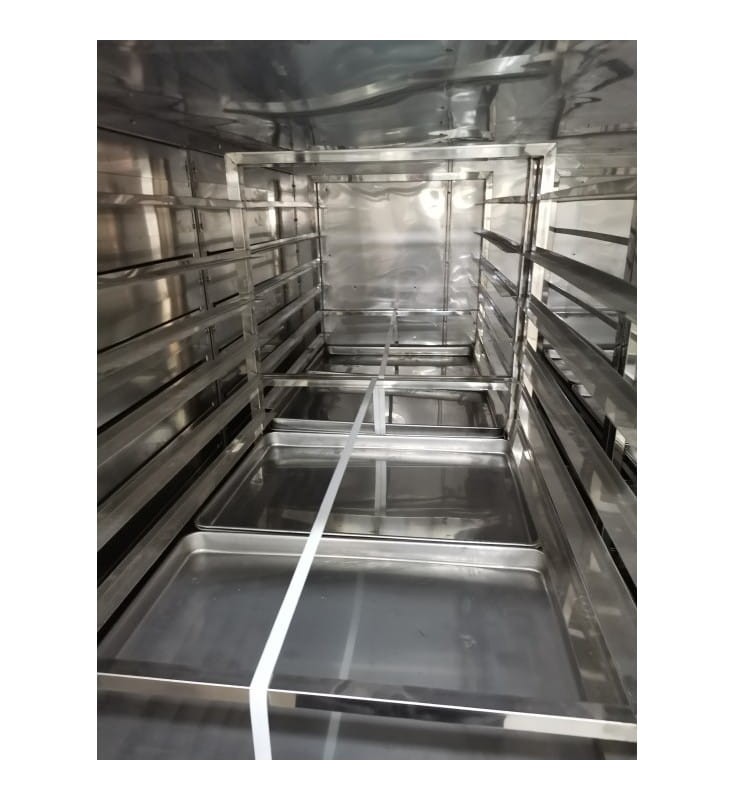

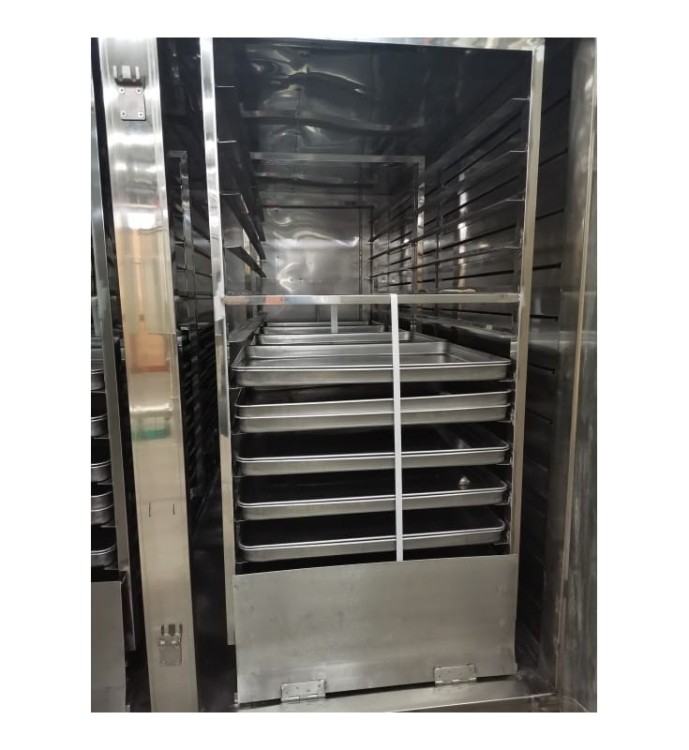

• 192 baking trays

• Air filters at both inlet and outlet

• Three‑section air distributor

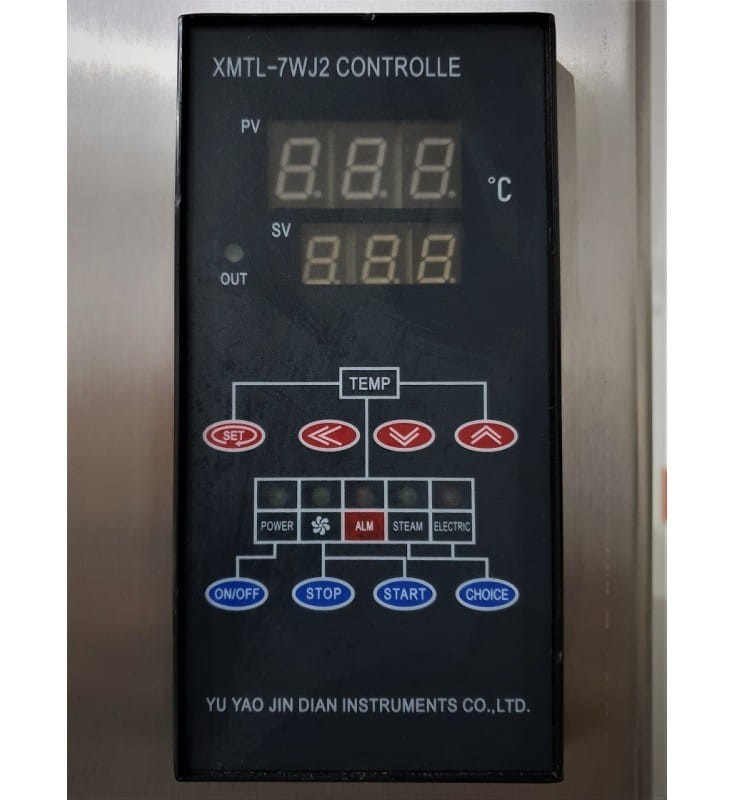

• Stainless steel control panel

Additional information

• CE certificate – compliance with European safety standards

• Operating manual in Polish

• Control panel in Polish

• Design optimized for easy cleaning and maintenance

• Option to customize according to client requirements (e.g., door or cart configuration)
