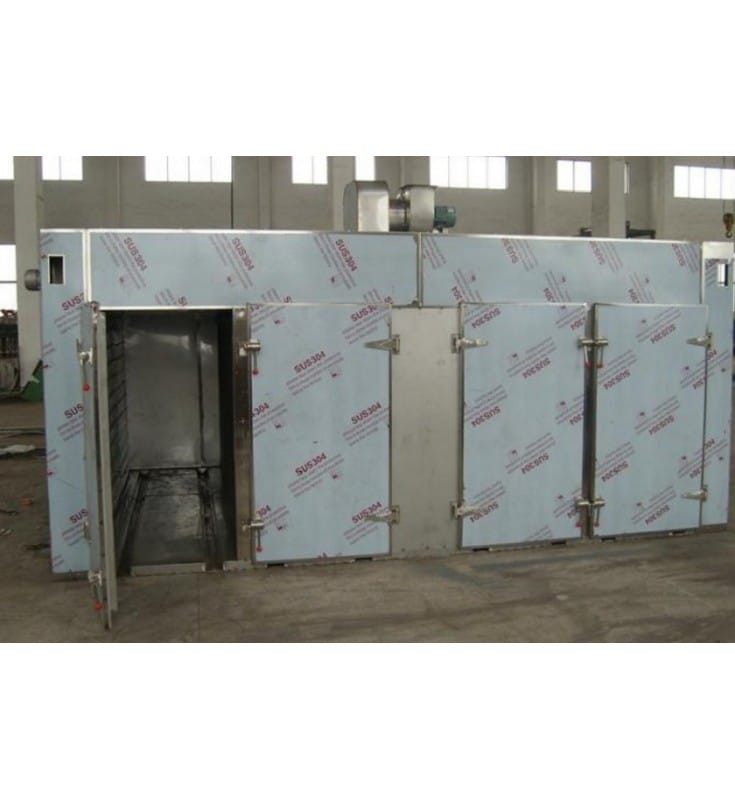

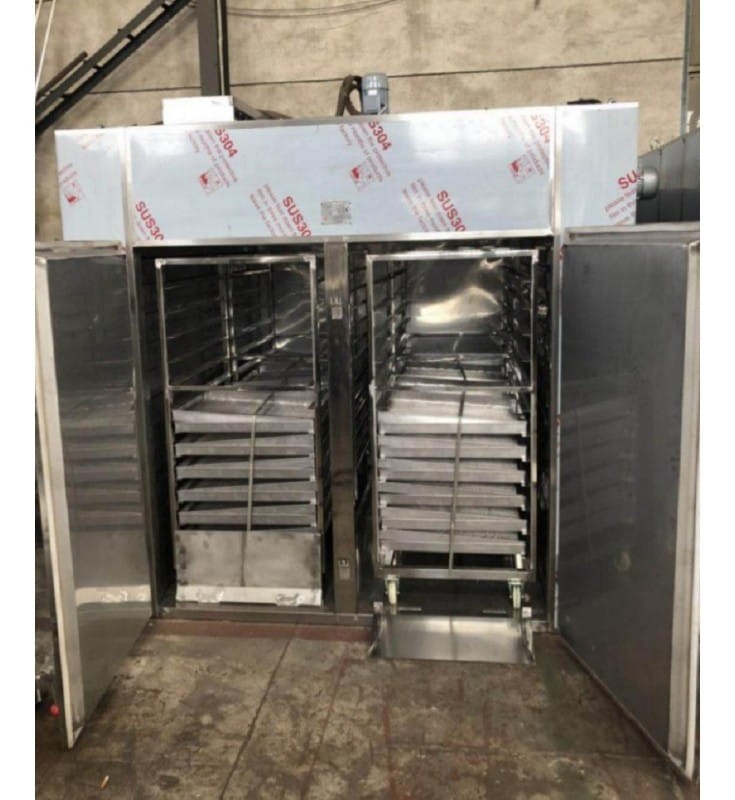

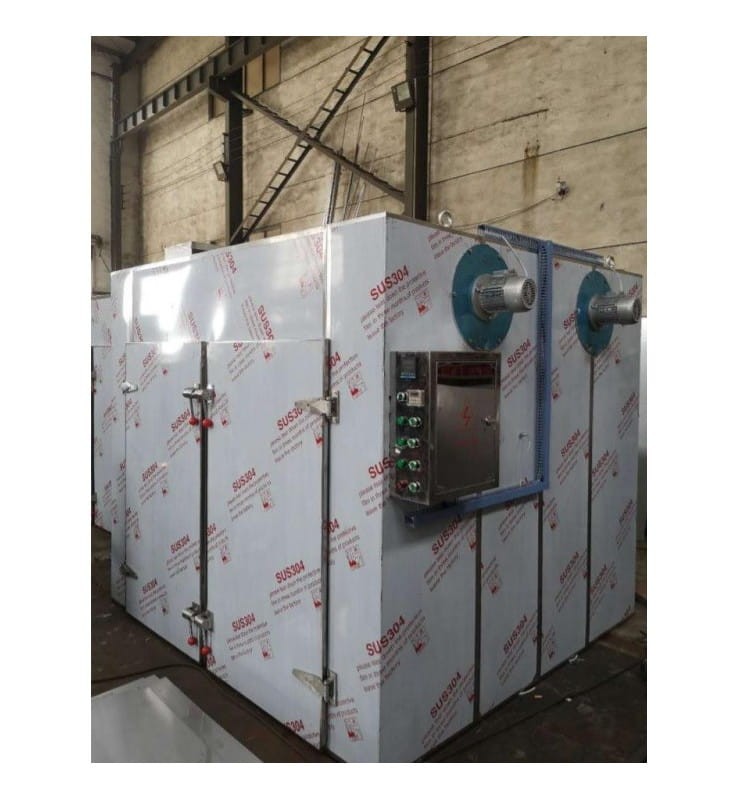

VEGETABLE AND FRUIT CHIPS DRYING MACHINE GG-HX4-8

Application:
Electric tray drying oven widely used in the pharmaceutical, herbal and chemical industries.
Wherever dried products are used, such as active pharmaceutical ingredients, powder, granules, medicines, spices, salt, pigment pigments, dried vegetables and fruits, food.
Device can be a part of production line.

Function:
Dryer and trays made of stainless steel 304.

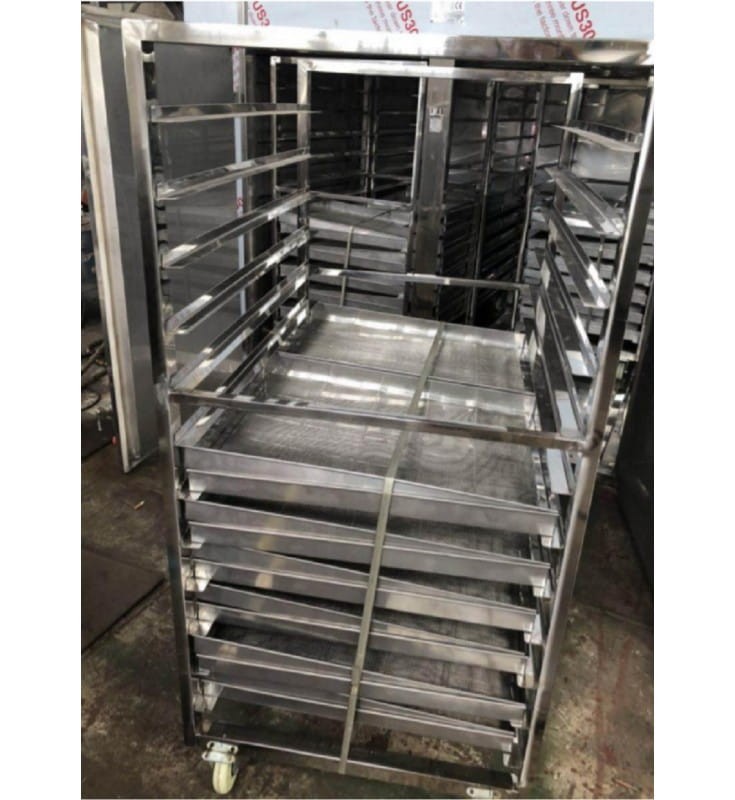

The device is equipped with 8 trolleys and 192 trays.

Technical data:
Power 60 kW
Capacity 576 kg / cycle US 1269 lb / cycle
Number of fans 4
Number of exhaust fans 2
The air flow is 6900 m3 / h
Trolleys 8
Trays 192
Dimensions of the device [length x width x height]: 4600 x 2250 x 2350 mm US 181" x 88" x 92"
Weight: 2000 kg US 4409 lb
