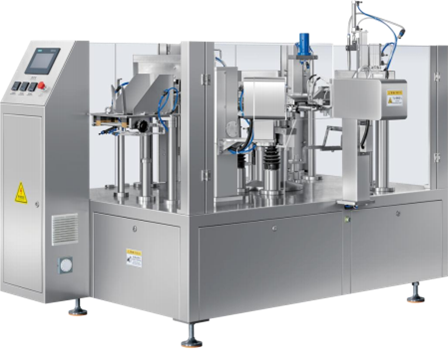

AUTOMATIC GRANULATE PACKAGING MACHINE FOR DOYPACK BAGS WITH ZIPPER GM-200R

Model: GM-200R

Work Stations: 8
Filling Range: 10–3000 g (depending on the type of material)
Packaging Speed: 30–55 bags/min
Bag Dimensions: Width 70–200 mm, Length 100–400 mm
Total Power: 2.5 kW
Machine Weight: 1400 kg
Air Consumption: 0.8 m³/min
Certificates: CE

INCLUDED IN THE SET:

• Platform
• Z-Type Conveyor
• Electronic Combination Weigher
• Zipper Mechanism

Product Description:
The GM-200R packaging machine is a modern, fully automatic device designed for medium and large production facilities. It is intended for packing granulated products into pre-made doypack bags with a zipper, ensuring precise dosing as well as aesthetic and durable sealing of the packages.

Machine Operation Process:

1. Bag Feeding
2. Zipper Application + Coding
3. Bag Opening
4. First Filling
5. Second Filling / Reserve Station
6. Zipper Sealing
7. First Sealing – Simple Pattern
8. Second Sealing – Textured + Ejection of the Finished Product

Key Features:

• Easy Operation: Intuitive Human-Machine Interface (HMI) in Polish and a modern PLC control system with a touchscreen.
• Quick Bag Change: Adjustment without the need to replace parts.
• Hygiene and Safety: Components in contact with the product are made of stainless steel or food-grade materials, compliant with GMP standards.
• Low Maintenance Costs: Simple construction for easy cleaning and maintenance.
• Compatibility with Other Devices: Can be synchronized with filling, weighing, or labeling machines.
• CE Certification: The machine meets all European safety and quality standards.

Safety Systems:

• Alarm for missing bag – no cutting and sealing.
• Alarm for improper bag opening – no material dosing.
• Automatic stop when air pressure is low.
• Error display on the touchscreen.
• Safety sensors on the device doors.

Polish Language Menu:

• Home
• Start
• Stop
• Pause
• Machine Settings
• Bag Type Selection
• Adjustment of Dosed Product Quantity
• Sealing Temperature Settings
• Machine Speed
• Diagnostics and Alarms
• Error Monitoring
• Alarm Reset
• Air Pressure Monitoring
• Production Statistics
  • Number of Packed Bags
  • Machine Operating Time
  • Average Efficiency
• Maintenance and Cleaning
  • Cleaning Procedures
  • Maintenance Schedule
• Help and Support
  • User Manual
  • Service Contact Information

Machine Components List:

• PLC Controller – Germany
• Touchscreen – Germany
• Frequency Converter – Germany
• Vacuum Pump – Germany
• Main Motor – HENGCHI, China
• Proximity Sensor – JUNGONG, China
• Solenoid Valve – FESTO, Germany
• Pneumatic Cylinder – FESTO, Germany

Why Choose the GM-200R?
This is the perfect solution for companies that value precision, speed, and reliability. With the GM-200R, your production will become more efficient, and the packaging quality will meet the highest market standards. The intuitive Polish-language menu ensures that even new operators will find the machine easy and pleasant to use.
