AUTOMATIC GRANULE SACHET PACKING MACHINE FZL 1000

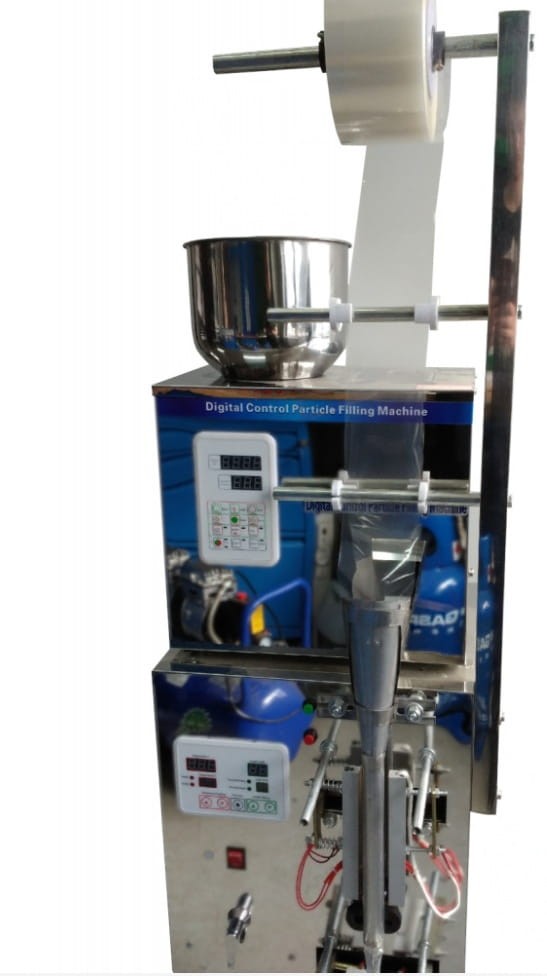

Automatic Granule Sachet Packing Machine FZL-1000

The FZL-1000 is a modern, fully automatic machine designed for packing free-flowing granular products into neatly sealed sachets with a back seal. Its automated operation significantly increases production efficiency while ensuring consistency and high-quality packaging.

Constructed from stainless steel, the machine is well-suited for use in the food industry. It is ideal for packing non-dusty granules, dried fruit blends, teas, herbs, and botanical mixtures. The machine forms a professional-looking, three-side sealed sachet with a strip-style side seal, giving the product a clean and attractive appearance.

The machine operates with a single flat film width. If you wish to change the sachet width, a dedicated forming tube matching the new film size is required.

Before using the machine, make sure to remove the transport screws that secure the vibrating components during shipping.

Technical specifications:

Model: FZL-1000
Power supply (V/Hz): 230 / 50
Power (W): 700
Seal width (mm): 7
Maximum sachet width incl. seal (mm): 225
Sachet length (mm): 0–270
Dosing range (g): 1–1000
Dosing accuracy (%): 3–5
Maximum film width (mm): 150
Sealing temperature range (°C): 0–300
Output (pcs/min): 7–8
Machine dimensions (mm): 510 x 430 x 1800
Machine weight (kg): 95
Film thickness (mm): 0.5–0.8

The machine is CE certified.
User manual available in Polish.
