AUTOMATIC PET BOTTLE BLOWING MACHINE HLBX-A2-600

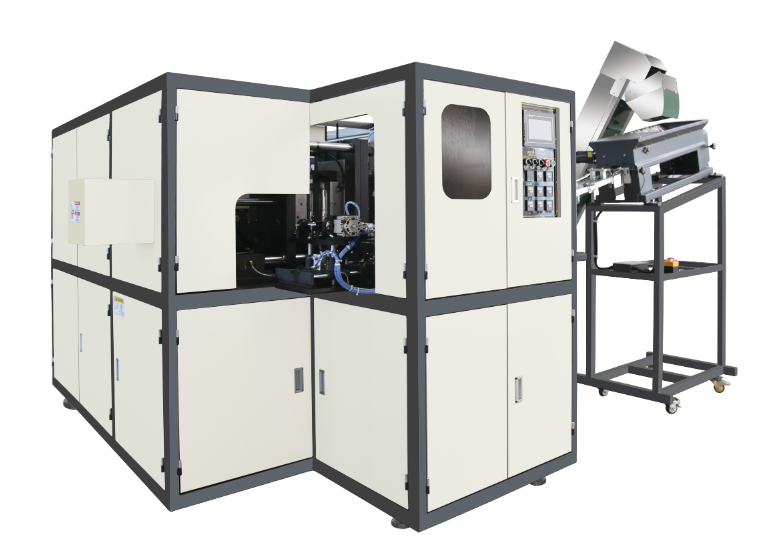

HLBX-A2-600: Automatic PET Bottle Blowing Machine

Are you looking for a reliable and efficient solution for PET bottle production? The HLBX-A2-600 is the perfect choice for your business! This modern, fully automatic machine ensures high performance, versatility, and precision to meet the needs of even the most demanding manufacturers.

Why Choose the HLBX-A2-600?

• High Efficiency: Capable of producing 1,600–2,200 bottles per hour (BPH), speeding up production processes.
• Versatility: Supports bottles up to 1 liter in capacity and various shapes – perfect for diverse products.
• Compact Design: With dimensions of 2.5 x 1.5 x 1.8 meters, the machine integrates easily into your existing production line.
• Energy Efficiency: A 25 kW heating system ensures effective operation with minimal energy consumption.
• Stability and Durability: A solid construction weighing 1,800 kg guarantees reliability and long service life.
• Precision: With an advanced blowing system, the machine adjusts to the preform weight and bottle shape, ensuring a high-quality final product.

Technical Specifications:

• Bottle Capacity: Up to 1.0 liter
• Neck Diameter: Max. 45 mm
• Bottle Diameter: Max. 85 mm
• Bottle Height: Max. 280 mm
• Number of Cavities: 2
• Theoretical Output: 1,600-2,200 BPH
• Heating Power: 25 kW
• Air Consumption: 1,200 L/min (low pressure) and 1,500-2,000 L/min (high pressure)
• Water Cooling: Flow rate 30 L/min at 10-12°C
• Menu Available in Polish

The HLBX-A2-600 is an indispensable solution for companies aiming to enhance their PET bottle production efficiency while maintaining high quality and precision.

Invest in innovation, reliability, and efficiency – choose the HLBX-A2-600 today!

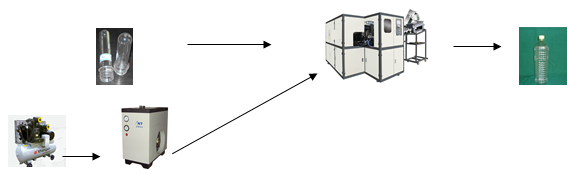

List of Components and Auxiliary Machines

Included Items:

1. HLBX-A2-600 Fully Automatic Bottle Blowing Machine
   • Includes one blower and one loader.
2. Mould (500ml)
   • 2-cavity mould (3G13).

Auxiliary Machines:

1. High Pressure Air Compressor (1.6 m³/min, 30 kg)
   • For bottle blowing.
2. Low Pressure Air Compressor (1.6 m³/min, 12 kg)
   • For machine operation.
3. Compressed Air Tank (0.6 m³/min, 30 kg)
   • For storing compressed air.
4. Air Dryer (2.0 m³/min, 30 kg)
   • Equipped with 2 air filters.
5. Air Dryer (2.0 m³/min, 10 kg)
   • Equipped with 2 air filters.
6. Water Chiller (3P)
   • For cooling the mould.

This is a complete list of all components and auxiliary machines associated with the HLBX-A2-600 package.
