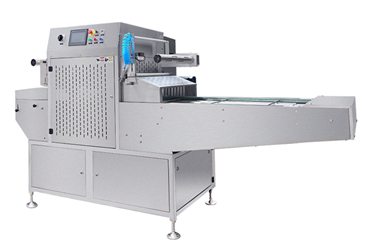

AUTOMATIC TRAY SEALER HVT-450A

Automatic Tray Sealer HVT-450A (Seal Only Version)

Application:
The machine is designed for automatic sealing of trays with dimensions 28 cm x 18 cm x 4 cm. It is ideal for packaging fresh fruits such as blueberries, extending their shelf life and protecting them from moisture and mold.

Key Features

• Dual-station operation – seals 2 trays at a time, with an output of 6–7 cycles/min (1440–1680 pcs/h, 24–28 pcs/min).

• Operated via touchscreen interface and controlled by a PLC (Programmable Logic Controller).

• Adjustable process parameters – easy and reliable control with low failure rate.

• Emergency stop function ensures operator and machine safety.

• Stainless steel construction for durability and easy cleaning.

• Optional features: color ribbon printer, automatic tray feeding and discharging conveyors, IP65 waterproof version available.

Applications

• Automatic sealing of trays made from PP or PE materials.

• Extends product freshness by securely sealing packaging.

• Suitable for fresh food products, ready meals, and fast-selling convenience items.

Main Components

• PLC, Power Supply, Sensors: OMRON

• Switches, Circuit Breakers, Protection Devices: CHINT

• Servo Drive and Servo Motor: Panasonic

• Cylinders and Solenoid Valves: AIRTAC

• Color Mark Sensor: Banner

Technical Specifications

• Model: HVT-450A

• Voltage: AC 380/50 or 220/60

• Sealing Power: 2000 W

• Gas Pressure: 0.5–0.6 MPa

• Cooling: Water cooling

• Capacity:

  • Seal only: 10–12 cycles/min

  • Vacuum + gas flushing + seal (optional): 3–5 cycles/min

• Chamber Dimension: 450 x (200–400) mm

• External Dimension: 2950 x 1040 x 1700 mm

• Net Weight: Approx. 670 kg

• Pump Capacity: 63 m³/h

CE Declaration of Conformity

The manufacturer declares that the HVT-450A machine complies with the requirements of the European Union Machinery Directive, Electromagnetic Compatibility Directive, and Low Voltage Directive. The device has been designed and manufactured according to applicable EN ISO standards for packaging equipment.

Operating Instructions (Summary)

1. Connecting the Machine:

   • Connect the machine to 380V or 220V power supply (depending on version).

   • Connect to compressed air supply (operating pressure 0.5–0.6 MPa).

2. Preparation for Operation:

   • Set sealing parameters on the touchscreen (temperature, time, pressure).

   • Place trays with products into the working stations.

3. Sealing Process:

   • Start the sealing cycle by pressing the start button.

   • The machine will automatically seal trays and discharge them (if equipped).

4. Safety:

   • In case of malfunction, immediately press the emergency stop button.

   • Regularly inspect cable condition and ensure cleanliness of the machine.
