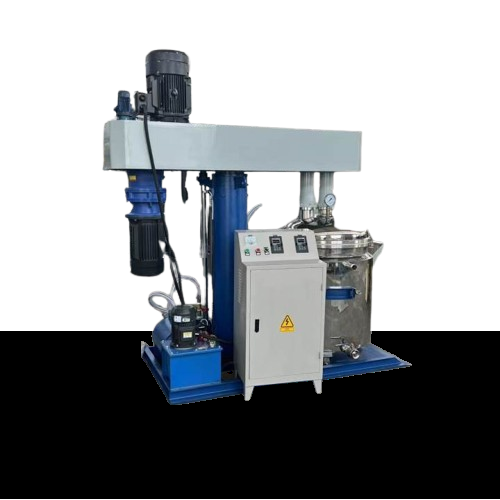

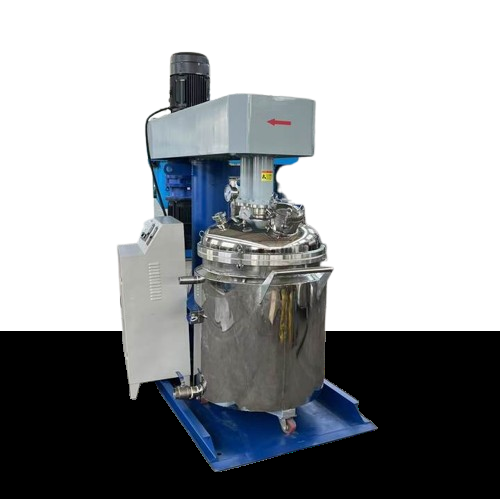

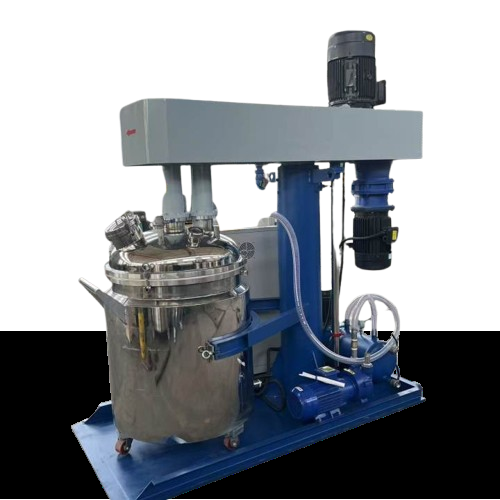

CONCENTRIC TWIN SHAFT MIXER HL-800L

HL-800L CONCENTRIC TWIN SHAFT MIXER

The HL-800L model is a modern concentric twin shaft mixer, designed for demanding mixing processes in the chemical, cosmetic, pharmaceutical, and food industries. Equipped with two independent mixing systems – low-speed and high-speed – the machine ensures efficient blending, emulsifying, dispersing, and homogenizing of products with various viscosities.

Key Advantages:

• Durable and hygienic construction made of stainless steel 304

• Inner tank and jacket made of 6 mm thick stainless steel plates

• Mirror-polished internal and external surfaces – easy to clean and maintain

• Frame-type agitator with wall scraping + high-speed emulsifying head

• Efficient mixing even with high-viscosity materials

• Hydraulic lifting system for the cover

• DN50 ball valve for discharge

• User manual available in Polish

• Complies with applicable regulations and features CE certification

Technical Specifications:

• Working volume: 800 liters

• Low-speed motor: 7.5 kW

• Reducer: BLD3-35

• High-speed motor: 22 kW

• Inner tank material: stainless steel 304, 6 mm thickness

• Jacket material: stainless steel 304, 6 mm thickness

• Mixing system: frame with wall scraper (low-speed) / emulsifying head (high-speed)

• Lifting method: hydraulic

• Discharge valve: DN50 ball valve

• Surface finish: internal and external mirror polishing

Additional Information:

• Ready to operate upon connection

• Custom configurations available upon request

• Excellent performance for creams, pastes, emulsions, suspensions, and powder-liquid mixtures
