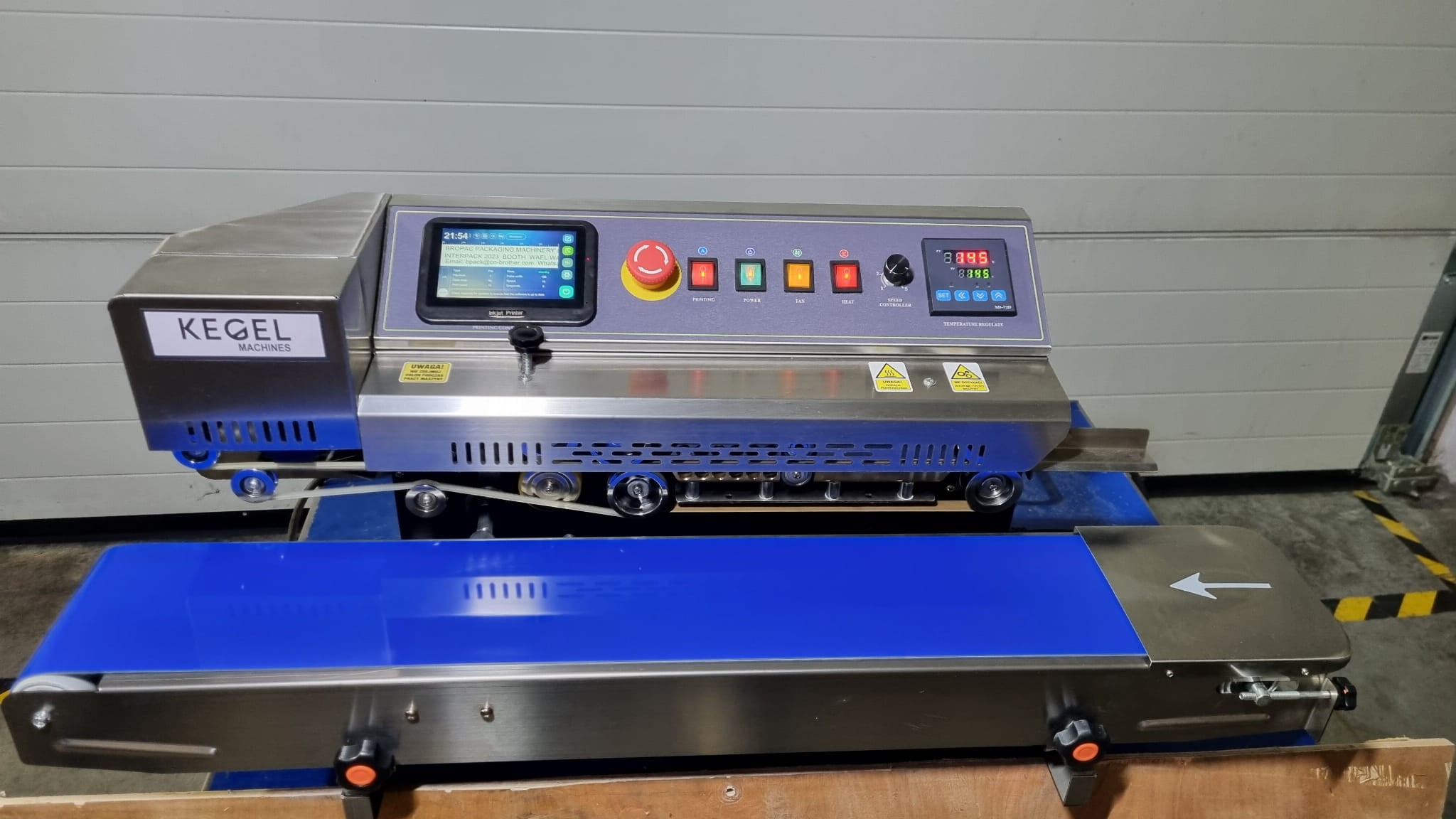

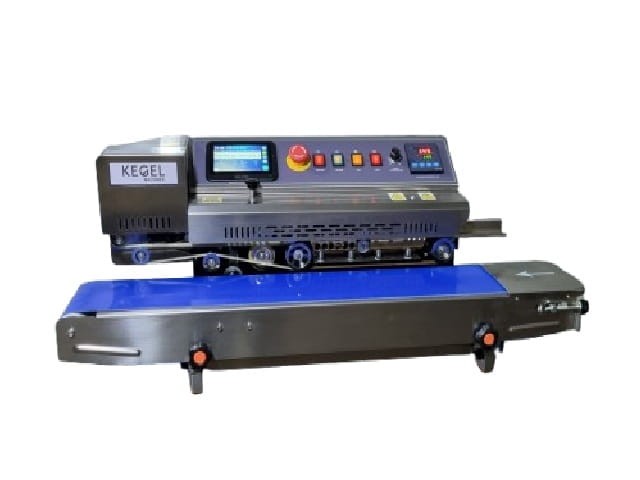

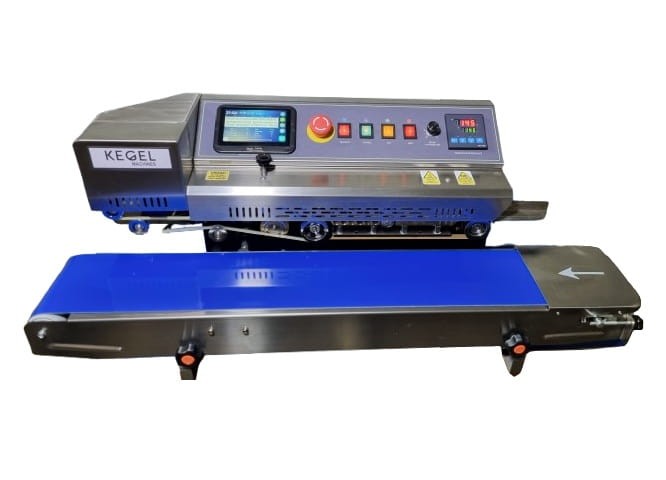

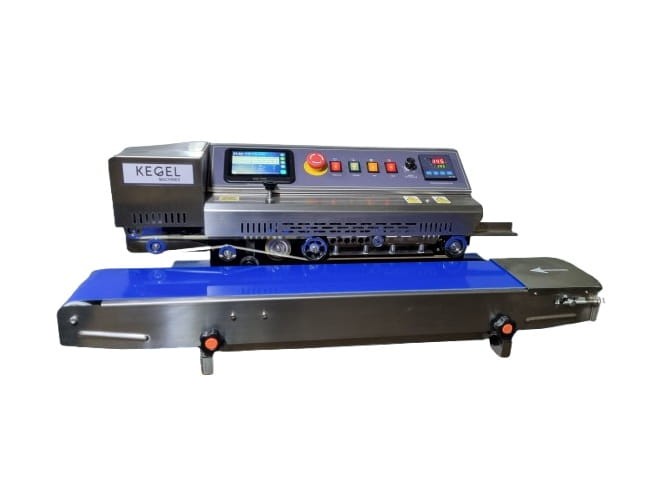

CONTINUOUS BAND SEALER FPM150W/S

This sealer is suitable for sealing all kinds of plastic films, which is widely used in fields of food, medicine, chemicals, daily use and vegetable seeds etc. It is the best sealing equipment for packing batch products from factories and shops.

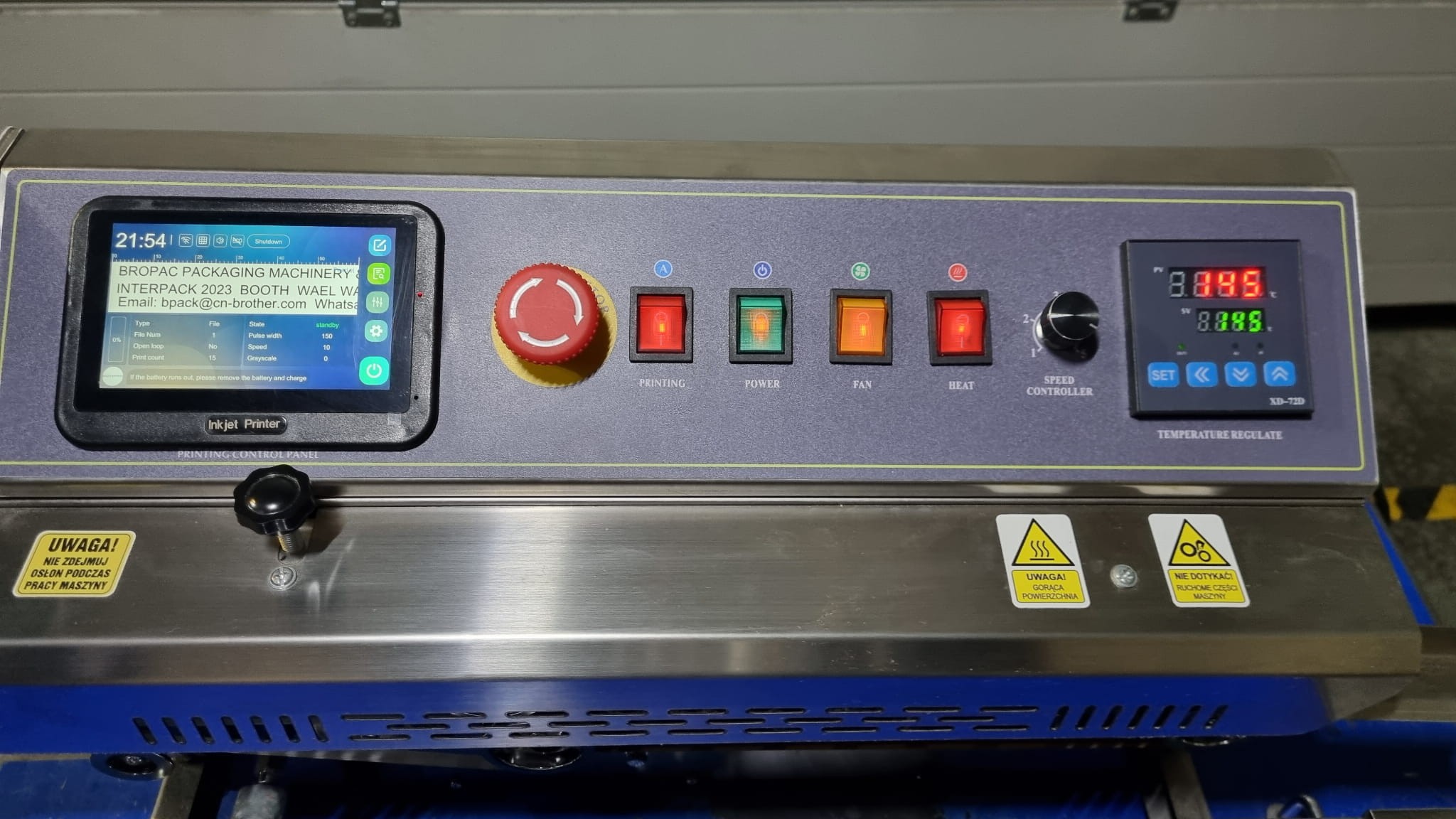

This sealer, adopting electronic thermostat control unit and step less speed-adjusting transmission mechanism, easy to move with the wheels, suitable for sealing of small packaging bag.
This machine is characterized by high efficiency in continuous sealing, reliable sealing quality, rational structure and convenient operation etc.
The FRM series are all starting running from right side, it can also be customized as the request of clients, it can be customized as left side.
After sealing, there will be stripe or netted pattern, it can also be optional with no pattern. According to requirements of clients, there are indentation printing wheel and counter for optional.
Through adopting solid-ink roller printing mechanism, the machine can print desired colored label on bag while sealing, with the characteristics of high definition, instant print and instant dry, and strong adhesion. For types in R arrange, the machine can print two lines in font size two (18PT) and three lines in font size five (10.5PT), and 20 types can be arranged in each line. Special order for T arrange or multi-line types is available.
This machine can seal various plastic film bags in different materials and can also be equipped with varied packaging production lines.

Technical data:
Power supply: 220 V / 50 Hz
Transmission power: 185 W
Sealing power: 2 x 300 W
Pump power: 750 W
Film thickness: <0.08 mm
Seal wedth: 10 mm
Temperature: 0-400 C (adjustable)
Distance from sealer to conveyor: 20 - 40 mm
Load for single bag: < 1 kg
Overall conveyor load: < 3 kg
Speed: 0-12 m/min
Dimensions [L x W xH]: 1050 x 550 x 900 mm
Weight: 67 kg
