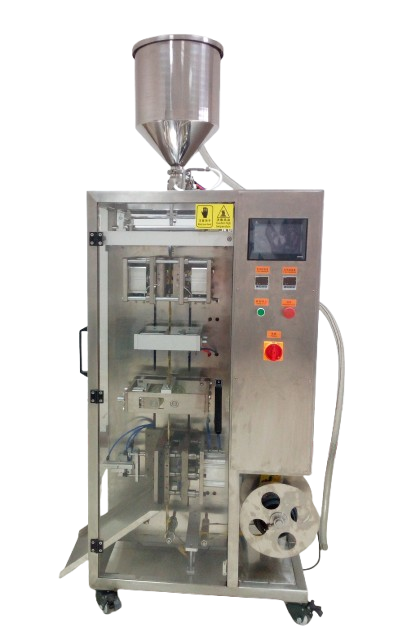

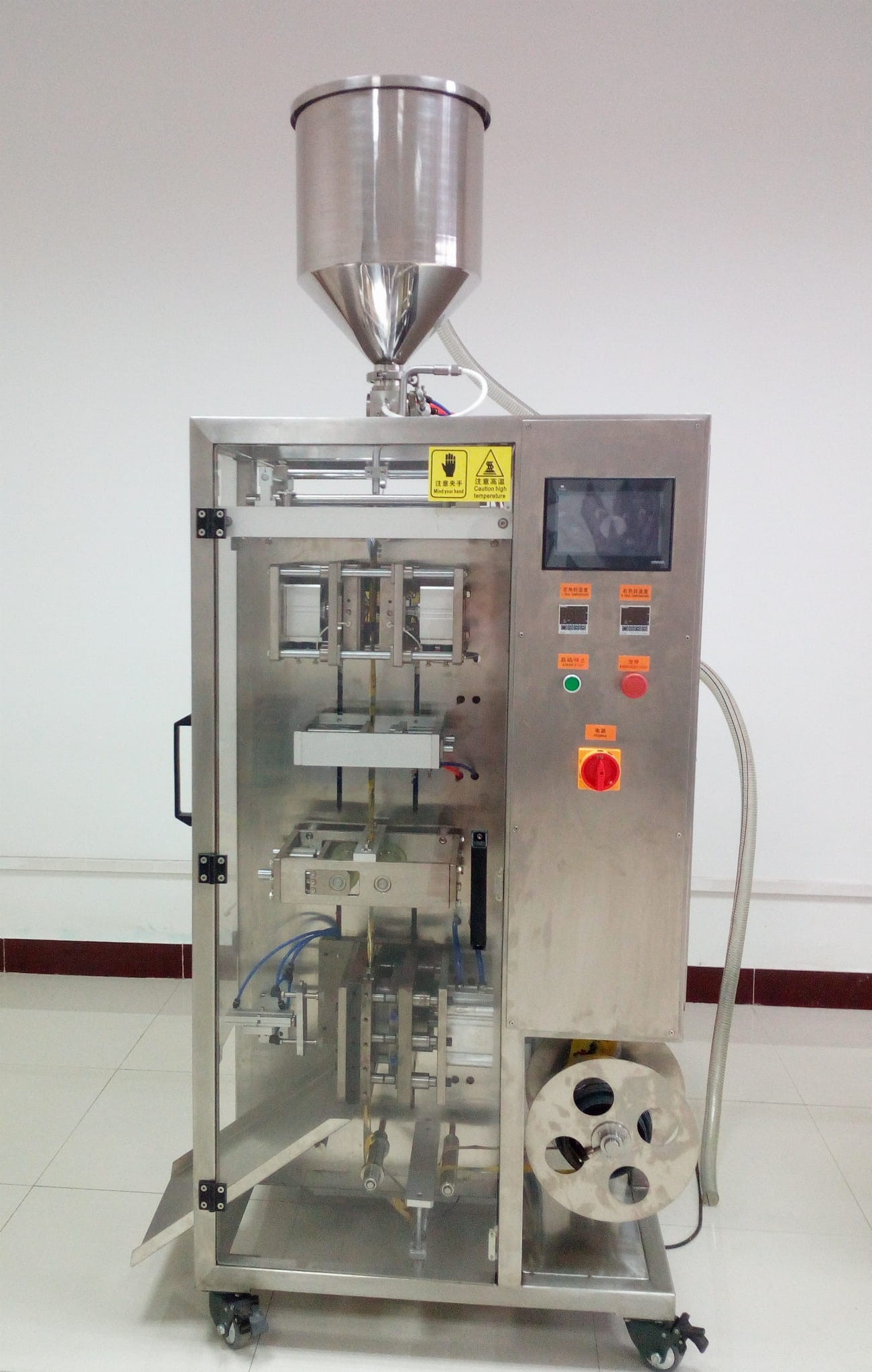

HL-Y50Y IRREGULAR SHAPE SACHET PACKING MACHINE 1 LINE

The HL-Y50Y IRREGULAR SHAPE SACHET PACKING MACHINE is a fully automatic machine designed for packaging liquids in irregularly shaped sachets, ideal for cosmetic, pharmaceutical, and food products. Equipped with efficient plunger or magnetic pumps, it enables precise filling of sachets with volumes ranging from 3 to 45 ml. The machine supports a wide variety of packaging materials, including composite films, PE paper, and laminated pouches.

Working Principle:

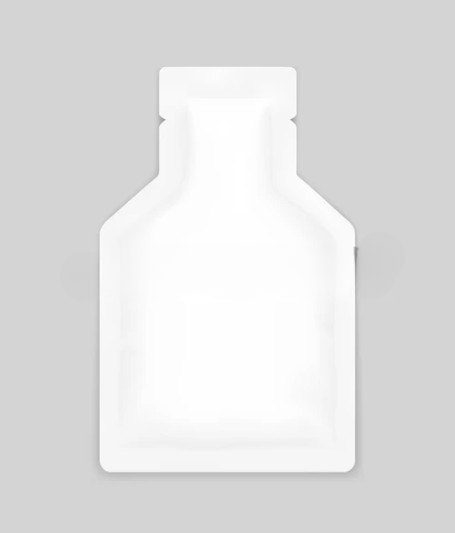

The machine performs a complete packaging process, including weighing, filling, forming a 4-sided sealed sachet, date printing, shaping, and cutting an easy-tear notch.

Key Features:

• High Speed: Up to 70 sachets/min (2-lane model)
• Materials: Made of SS304 stainless steel, ensuring high hygiene standards
• Control System: Omron PLC and a bilingual touchscreen interface
• Sachet Size Options: Length 50–200 mm, width 40–130 mm

Technical Specifications:

• Packing Speed: 20-35 pcs/min
• Pouch Size: Length 50–200 mm, width 40–130 mm
• Power Supply: AC220V, 50Hz, 3 kW
• Weight: 450 kg
• Machine Dimensions: 1150 x 1250 x 2150 mm

For additional payment:

Matrix for another shape
