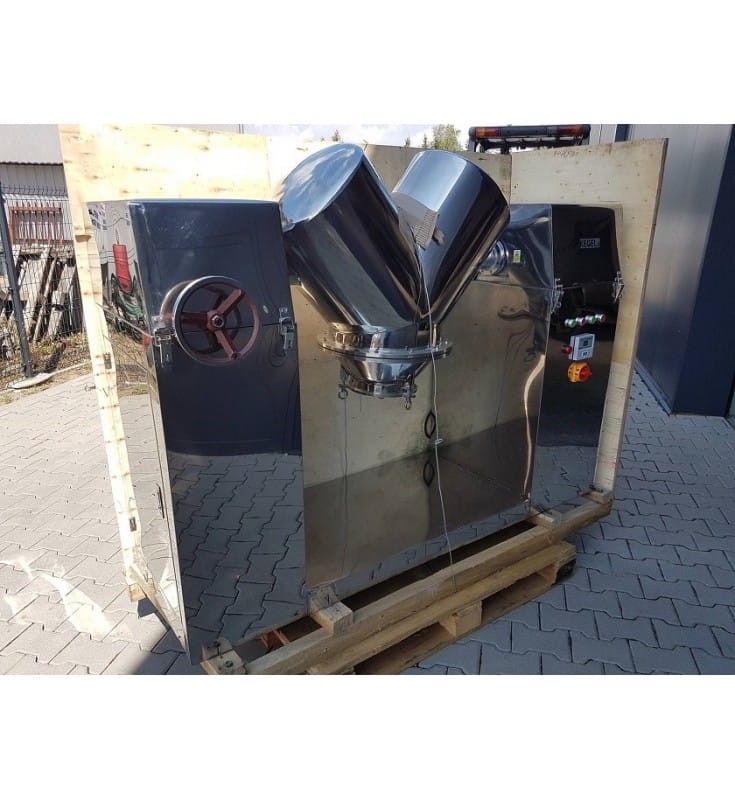

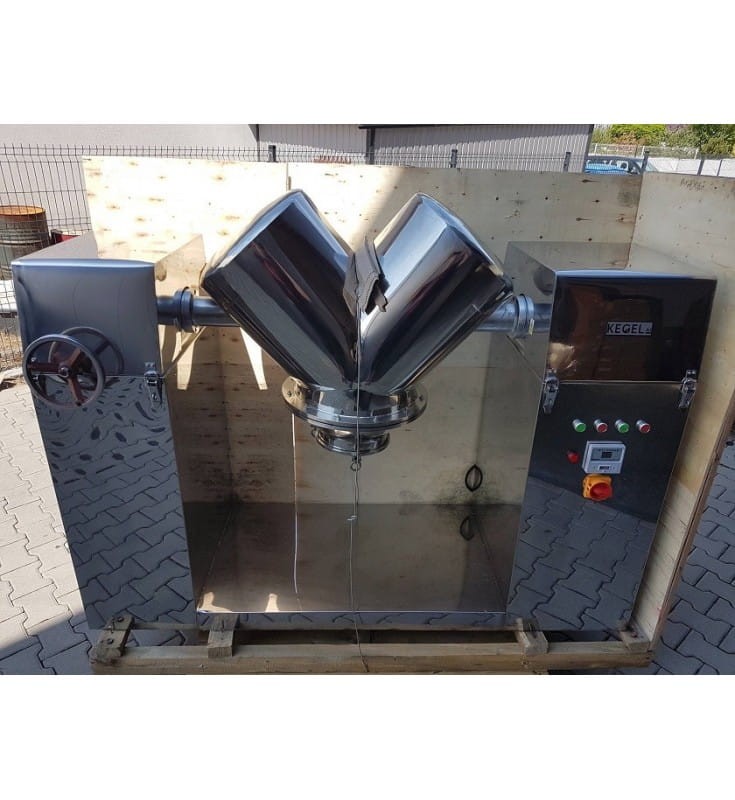

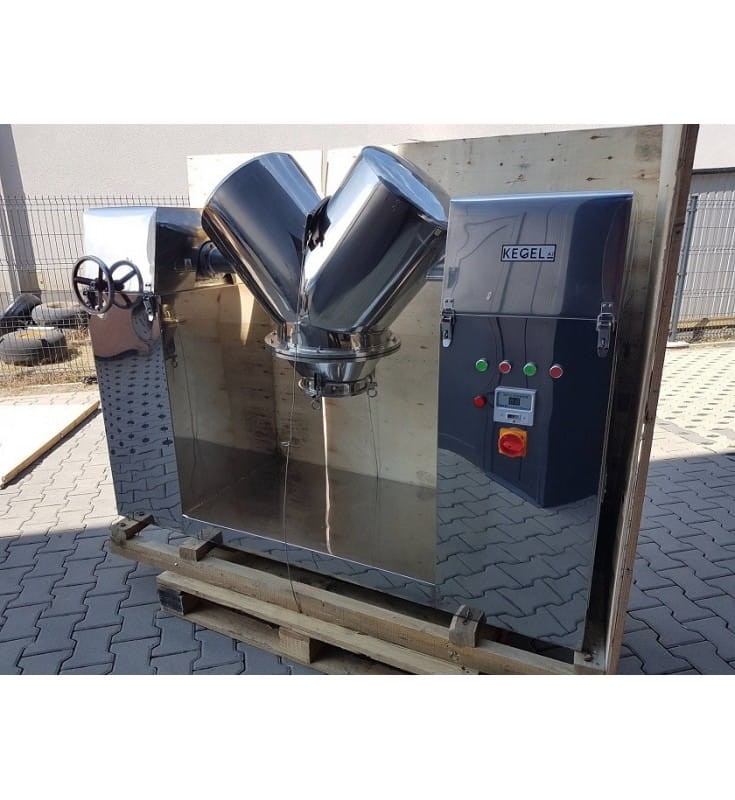

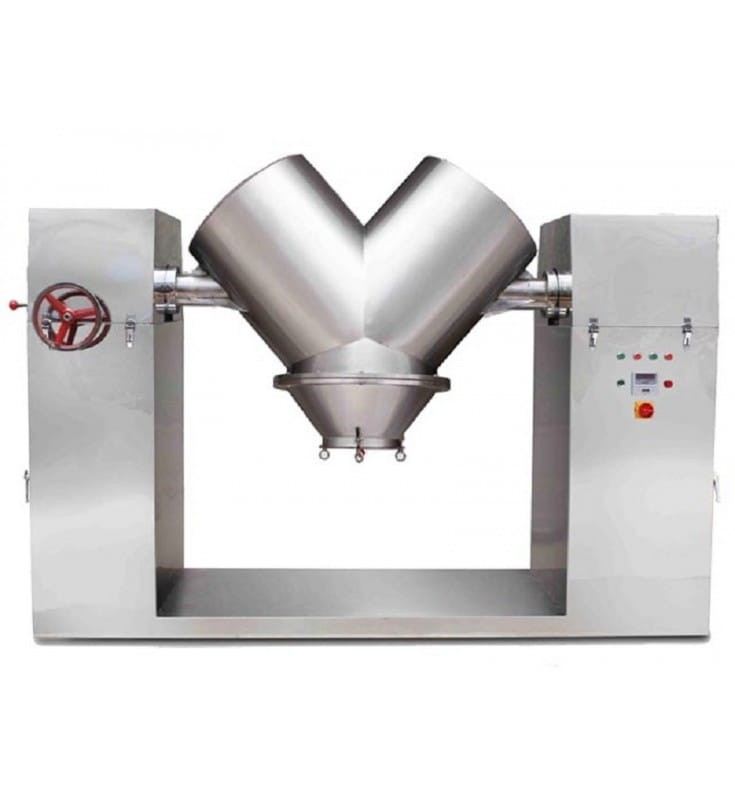

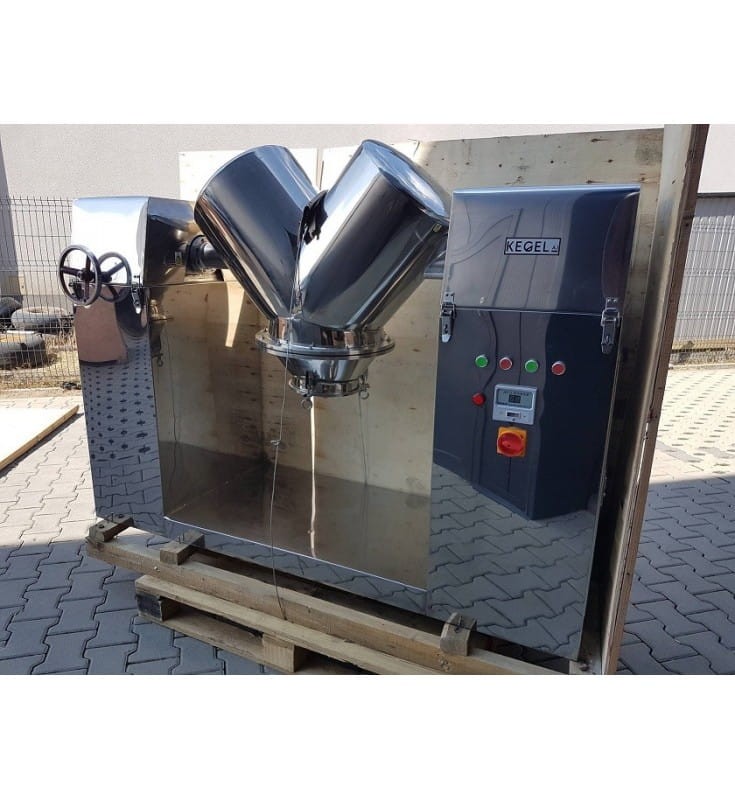

POWDER MIXING MACHINE CH-600V (1)

Description:

The CH-500V mixer is a specialized device designed for the precise mixing of powders and fine granular materials. With its robust construction, high-efficiency drive, and use of stainless steel in critical components, it is the ideal solution for industries that require precise mixing while maintaining hygiene and corrosion resistance.

Industry Applications:

• Pharmaceutical Industry
  The mixer is perfect for blending various pharmaceutical substances such as powders, granules, and active ingredients. The 304 stainless steel cylinder meets hygiene standards and is easy to clean, which is essential in pharmaceutical production.

• Food Industry
  The device is excellent for food production, where ingredients such as flour, spices, flavorings, or baking powders are mixed. The quick-opening feeding port and SUS304 stainless steel discharge valve ensure safety and hygiene, which are critical in food processing.

• Cosmetic Industry
  The mixer can be used in producing powdered cosmetics, such as face powders, talcum powders, and other fine-grain products. The "V" shape of the cylinder ensures even mixing, which is essential for creating uniform cosmetic products.

• Chemical Industry
  The CH-500V is suitable for mixing chemicals, especially those that require high precision and homogeneity. Its corrosion-resistant construction allows for mixing more aggressive powders in controlled conditions.

• Plastics Industry
  The mixer is used for blending various types of powders and granules used in plastics production. With its high efficiency and durable construction, it allows for precise mixing of components that are later molded into plastic products.

Summary:
The CH-500V is a versatile mixing device that finds applications across numerous industries. With its precise construction, high-quality materials, and durability, it is an ideal choice for demanding applications in the production of powdered substances.

Technical Specifications:

• Tank Capacity: 500L
• Filling Volume: up to 250L
• Load Weight: up to 250 kg
• Cylinder Speed: 10 rpm
• Motor Power: 3 kW-4 (model Y100L2-4)
• Reducer Model: WPA147 I=30
• Dimensions: as per attached outline drawing

Machine Structure and Materials:

The CH-500V mixer consists of a mixing cylinder, frame, and drive unit. The frame is a one-piece, easy-to-dismantle design, and the transmission between the cylinder and gearbox is gear-driven for smooth operation without interruptions.

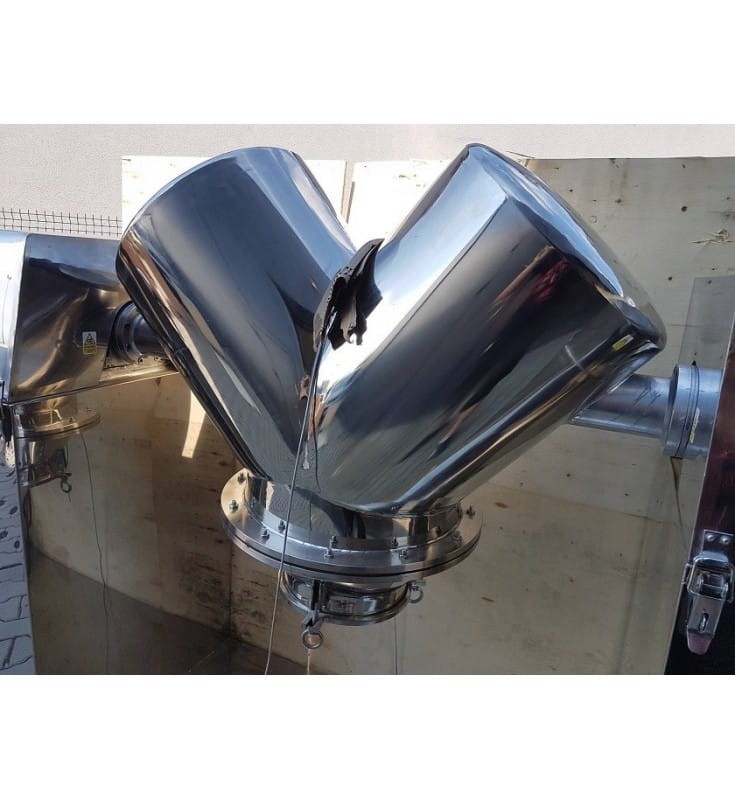

• Mixing Cylinder: Made of SUS304 stainless steel, 3 mm thick, with a "V" shape for improved mixing efficiency.
• Feeding Port: Quick-lock design for user convenience.

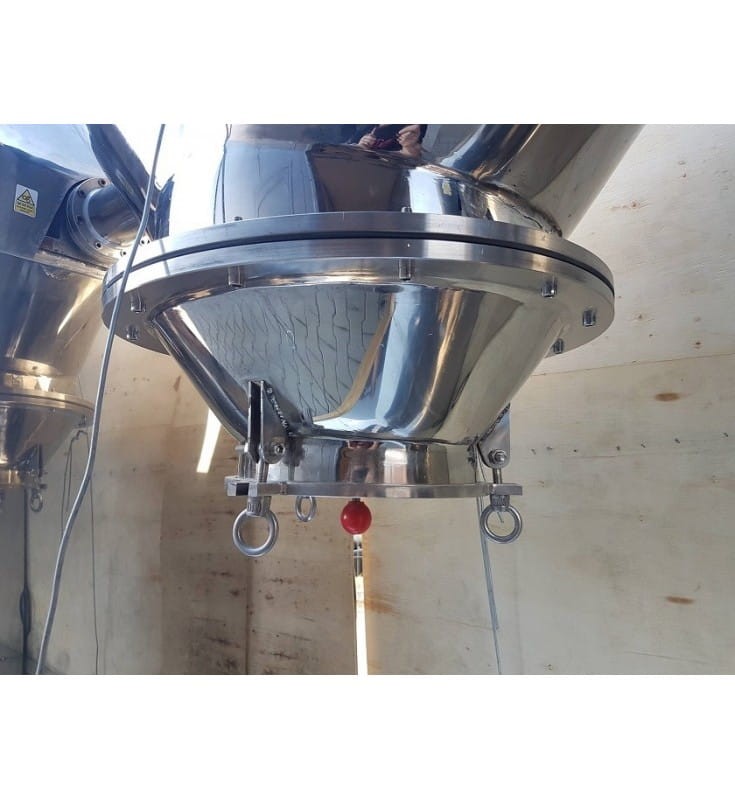

• Discharge Valve: Φ200 butterfly valve, made of SUS304 stainless steel.
• Frame: Welded from SUS304 stainless steel with an outer cover of 1.5 mm thickness.

Consumable Parts:

• Bearings: 2 x 1312 D-grade on both ends

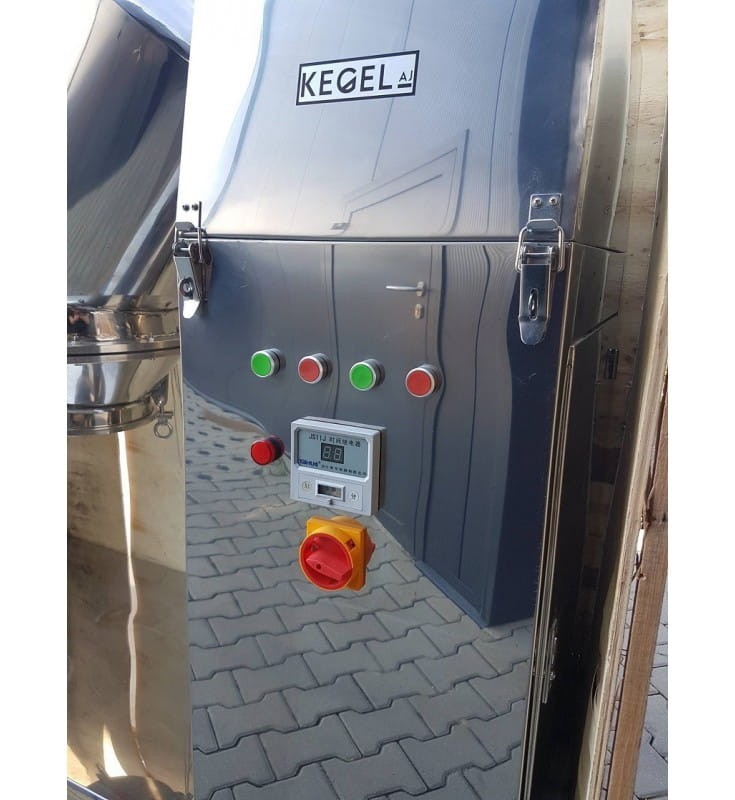

• Electrical Components: Chint
• Indicator Light: NP4, 1 piece
• Control Buttons: NP4, 3 pieces (including one inching button)
• Time Relay: JS14S, 1 piece
• Magnetic Starter: QS36-10T, 1 piece

General Description:
The CH-500V powder mixer is designed for high efficiency and durability. The stainless-steel construction ensures corrosion resistance and easy hygiene maintenance, making it an ideal choice for industrial applications in mixing various types of materials.

Optional Add-Ons (Additional Cost):

• Speed Controller
• Full construction in 316 stainless steel
