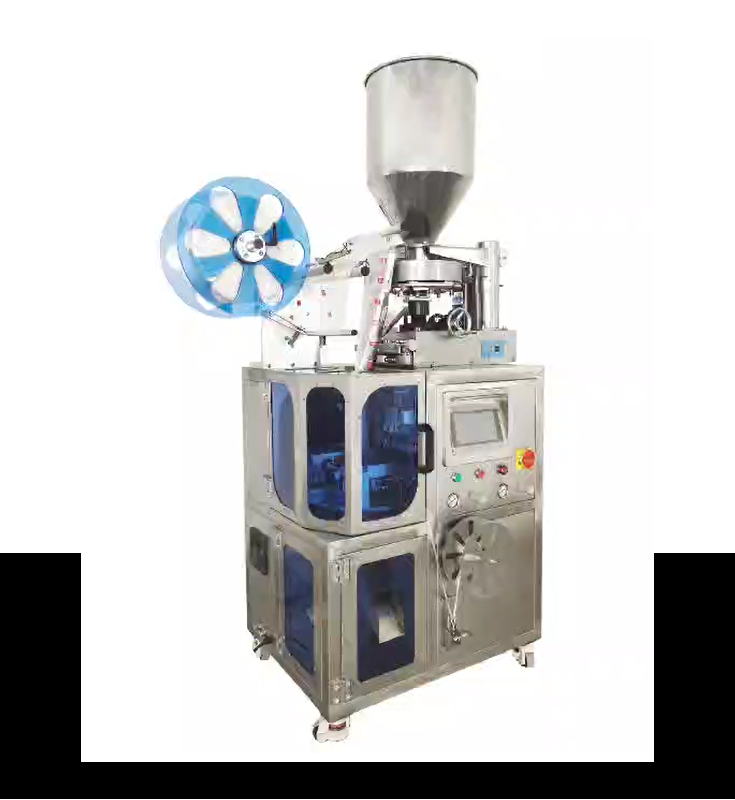

PYRAMID TEA BAG PACKING MACHINE DXDCH-10D

A vertical machine designed for packaging granular, fine-grained products, such as teas, herbs, herbal mixtures, ground coffee, cereal coffee, etc. in pyramid-shaped bags.

Creates bags from a material in the form of a web.

This system provides high versatility and flexibility as well as excellent dynamics.

Modern technology together with reliability, ergonomic design and easy cleaning allows for convenient use.

The machine can be intended for contact with art. food.

Dose and bag sizes are adjustable.

All surfaces in contact with the product have smooth surfaces or are made of corrosion-resistant stainless steel.

The construction of the machine excludes penetration of the substance into the product.

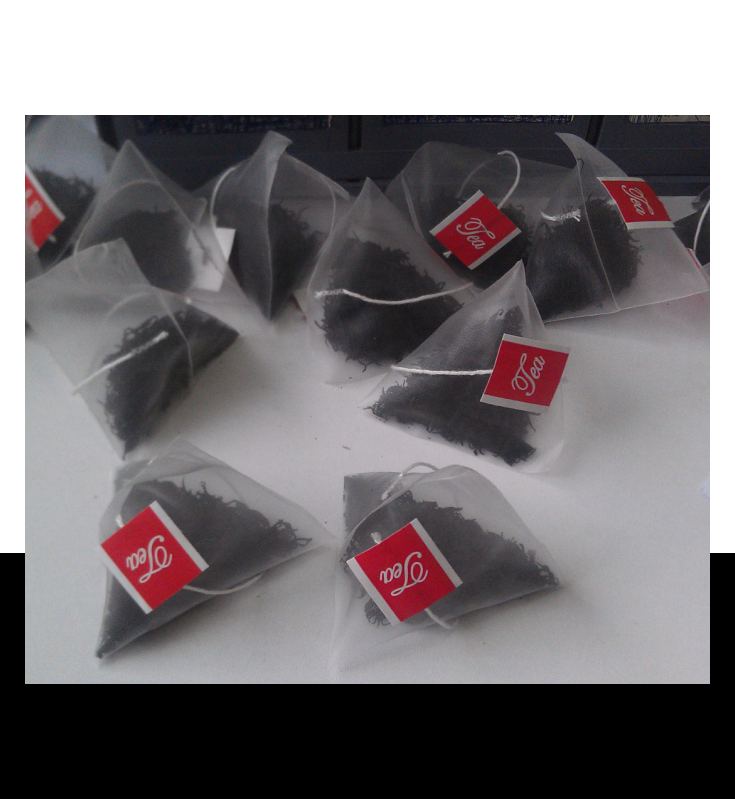

The sachetting machine requires a special tissue paper with a line and a drawstring as in the 2nd picture.

Application:

The device is used in the food industry.

Functions:

Simple operation

High precision and reliability

Bag counter

Technical data:

Power: 1.8 kW

Power supply: 230 V / 50 Hz

Triangular bag size: 50-80mm

Square bag size: (W)60-90mm，(L)40-80mm

Width of packing film:120mm、140mm、160mm

Filling range: 1.5-10g

speed: 50bag/min

Air pressure: 0.6Mpa

Air consumption 200L/min

Dimensions [length x width x height]: 1200 x 900 x 1800 mm US 47.24" x 35,43" x 70.86"

Weight: 350 kg US 771 lb

Extra paid options:

Tube under a different width of the sachet

Full stainless steel version
