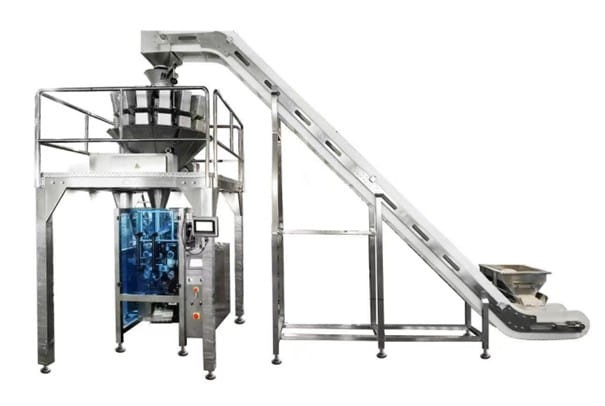

VERTICAL GRANULE PACKAGING MACHINE VFF 420 D

Applications:

Automatic packaging system equipped with a 14-head electronic weigher and a vertical packaging machine.

The machine is designed for accurate packaging of products in the form of granules, i.e. cookies, chips or nuts.

It is ideal for the food industry.

The set includes:

Vertical packaging machine

14-head combination weigher

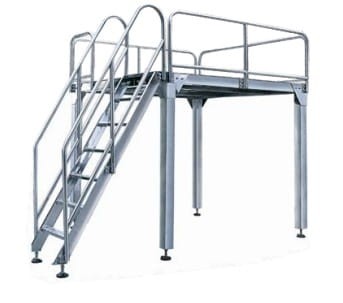

Platform

Large angle material elevator

Finished product conveyor

VERTICAL PACKAGING MACHINE

Adopting electronic weighing method, the packaging weight is more accurate and the production cost is lower.

Touch screen display for intuitive and simple operation.

PLC computer control system, more stable operation, can adjust any parameters without stopping the machine.

Can store ten sets of parameters, more convenient to change varieties.

Using servo motor to pull the film, positioning is more accurate.

The packaging styles are diversified, back seal, corner insert, bag connection, punching, etc.

Production of bag making, sealing, packaging, and printing date are completed at one time.

Technical data:

Power: 3KW

Power supply: 220 V / 50 Hz

Max. film width: 420 mm

Film thickness: 0.04-0.08 mm

Bag length: 80-350 mm

Bag width: 80-250 mm

Packaging speed: 5-60 bags/min

Packing volume: 2000 ml

Dimensions [L x W x H]: 1430 x 1200 x 1700 mm

Weight: 650 kg

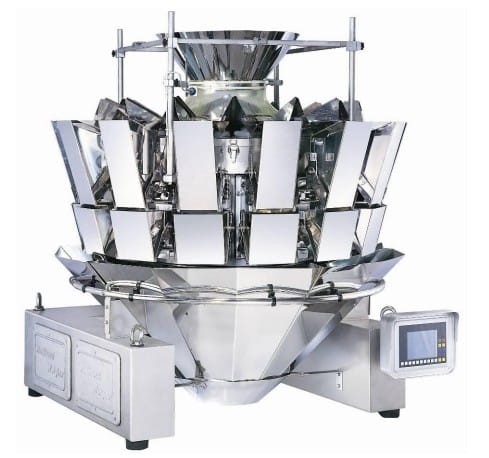

14-HEAD COMBINATION WEIGHER

High-precision sensor enables accurate measurement instantly.

Stepper motor is used, which runs quietly, moves stably and has a long life.

The opening and closing speed of the hopper door can be finely adjusted according to the characteristics of the object to be measured to prevent breakage.

All parts are made of stainless steel, which is clean and hygienic.

Good compatibility and easy to use with other packaging equipment.

Technical data:

Maximum weighing weight: 2000 g

Single weighing range: 10-500 g

Weighing accuracy: ±0.3 - 1.5 g

Weighing capacity maximum: 3000 cm³

Weighing speed maximum: 120 times/min

Number of product presets: 99

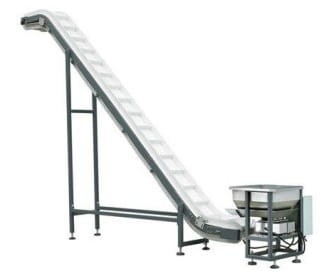

LARGE ANGLE MATERIAL ELEVATOR

The elevator is used in conjunction with an electronic metering scale, and uses a control circuit to control the material level to achieve automatic feeding and stopping functions.

The elevator is made of stainless steel and carbon steel for customers to choose from.

Technical data:

Power: 0.75 KW

Power supply: 380 V / 50 Hz

Conveying capacity: 3–6 m³/h

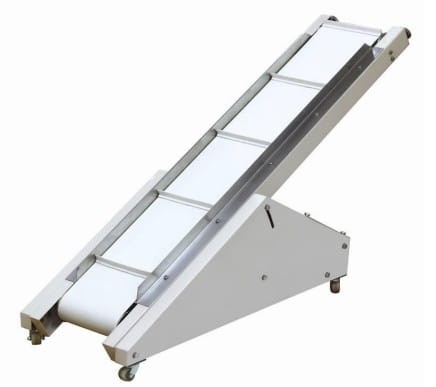

FINISHED PRODUCT CONVEYOR

This machine uses imported micro-motor drive, low noise, long life, can transport finished products to the platform, reduce waste during the packaging process, and make the packaging machine work smoothly.

Technical data:

Power: 60 W

Power supply: 220 V / 50 Hz

Conveying capacity: 60 bags/min
