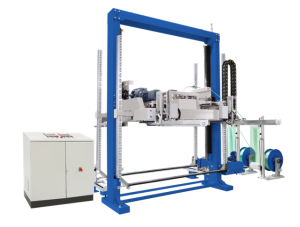

VERTICAL STRAPPING MACHINE TSSP-211

TSSP-211 Top-Pressing Packing Machine – A Professional Solution for Efficient Pallet Strapping

We offer the modern TSSP-211 machine, designed for top-pressing pallet strapping. The device features high-quality construction and comes with a complete set of required technical documentation and safety certifications, including the CE certificate. The package includes an operation manual in Polish.

The machine is designed with a focus on maximum efficiency and reliability.

Key advantages:

• High-frequency friction welding system, eliminating the need for hot knife maintenance

• Dual-action operation – output of up to 70 pallets per hour

• Robust frame made of two bent columns and cross beams, with frequency-controlled guides for stable operation

• Even distribution of pressure on all four corners of the load

• Independent strapping tape dispenser with electromagnetic brake, linear drive, and buffer system to protect the tape

• Reliable, maintenance-free electric lance drive system with frequency converter

• Control system based on Siemens S7-200SMART and HMI touchscreen, with optional separate console configuration

Included with the machine:

• Complete technical documentation

• CE certificate

• Operation manual in Polish

• On-site training and instruction

• Post-sale technical support

Technical specifications:

• Power supply: 3-phase, 5-wire, 380 V / 50 Hz

• Power: 3000 W

• Gross weight: 3000 kg

• Net weight: 2000 kg

• Minimum load height: 300 mm

• Strapping force: 200–250 kg (2000–2500 N)

• Strap material: PET

• Strap width: 12 mm, 16 mm

• Strap thickness: 0.55–0.8 mm

• Core size: 406 mm (paper core), 20 kg/roll

• Performance: up to 70 pallets per hour

• Welding position: top

• Communication interface: Ethernet

The machine does not require an external compressed air source. It is suitable for a wide range of industrial applications and ideal for high-volume production lines.
