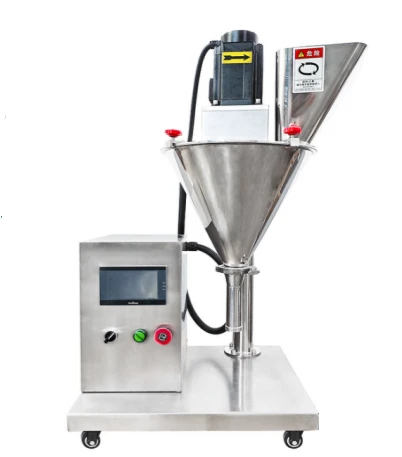

DXDF-S POWDER DOSING MACHINE 1–100 G SEMI-AUTOMATIC FILLING MACHINE

Application:

The DXDF-S semi-automatic powder dosing machine is designed for dosing loose, powdery products and small particles.

The device is suitable for packing and measuring various products, such as food powders, spices, additives, chemical products, pharmaceutical products, cosmetic products and other materials with suitable flow properties.

The machine enables precise dosing of the product into packages, containers, bottles, jars or bags.

Thanks to its compact design, it can be used in small and medium-sized production plants, laboratories, workshops and companies involved in the packaging of loose products.

Machine description:

DXDF-S is a semi-automatic filling machine for powders.

The device is equipped with a hopper, screw dosing system and control panel. Operation is carried out via a touch screen, where operating parameters can be set, such as dosing weight, speed, working mode and weight compensation.

The machine can operate in single or continuous mode. The production counter function allows the number of completed dosing cycles to be monitored.

The device also has jog mode and a cleaning function, which make operation and preparation of the machine for work easier.

Main advantages:

Precise dosing of powdery and loose products

Dosing range suitable for small portions

Screw dosing system

Adjustable working speed

Possibility of operation in single or continuous mode

Touch screen for parameter setting

Possibility of dosing weight calibration

Weight compensation for more accurate dosing

Simple operation and cleaning

Compact design on wheels

Stable machine operation

Possibility to customize the language and logo according to customer needs

Technical data:

Model: DXDF-S

Machine type: semi-automatic powder dosing machine

Application: powders, small particles and other loose materials

Application range: 1–100 g

Power supply: 220 V / 50 Hz

Power: 1.0 kW

Hopper capacity: 8 l

Filling accuracy: ±1 g

Machine weight: 49 kg

Dosing range according to the manufacturer’s table: 3–1000 ml

Machine dimensions: 530 × 450 × 1040 mm

Capacity: 15–25 bottles/min, using 100 g as an example

Model features: stable product feeding, adjustable flow rate

Wooden box packaging dimensions: 66 × 59 × 117 cm

Gross weight with packaging: 82 kg

Control functions:

Total production counter — for counting production in single or continuous mode.

Set weight — the weight of product to be dosed.

Set speed — the working speed of the machine, consistent with the calibration settings.

Weight compensation — correction of the difference between the set weight and the actual amount of product dispensed.

Start / Stop — starting and stopping machine operation.

Jog mode and cleaning — auxiliary functions for operation, testing and cleaning of the device.

Calibration and adjustment:

The machine allows adjustment of dosing parameters such as advance deceleration, deceleration speed, continuous interval, calibration speed, pulse length and actual weight measurement.

Calibration allows the machine operation to be adjusted to a specific type of product and helps achieve more accurate dosing.

Additional information:

The machine is supplied with CE.

Instruction manual in Polish.

We provide service and access to spare parts.
