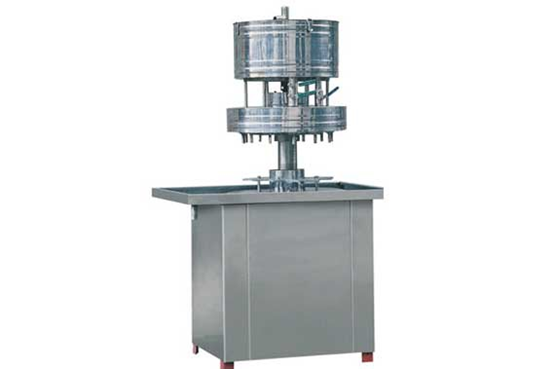

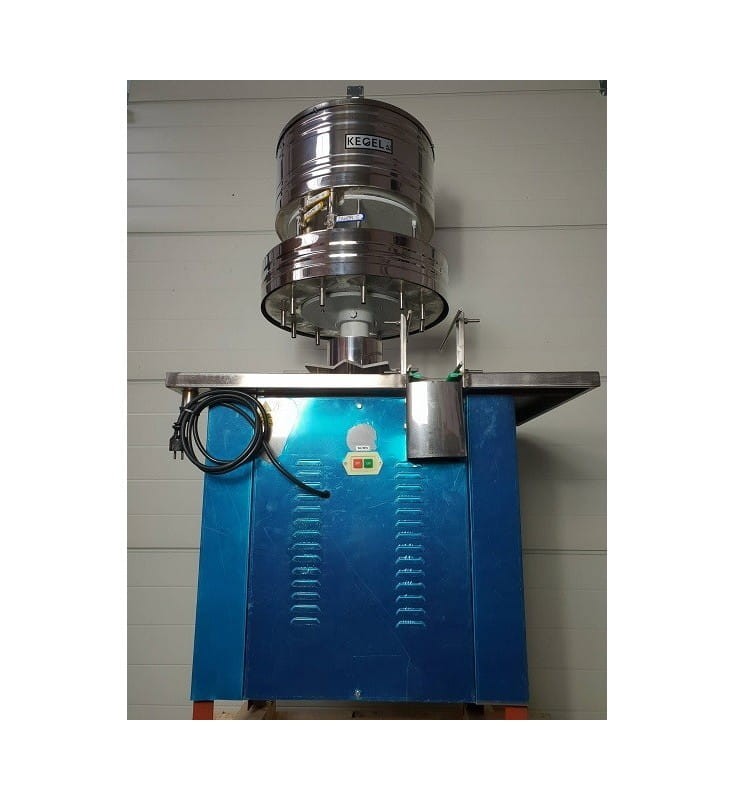

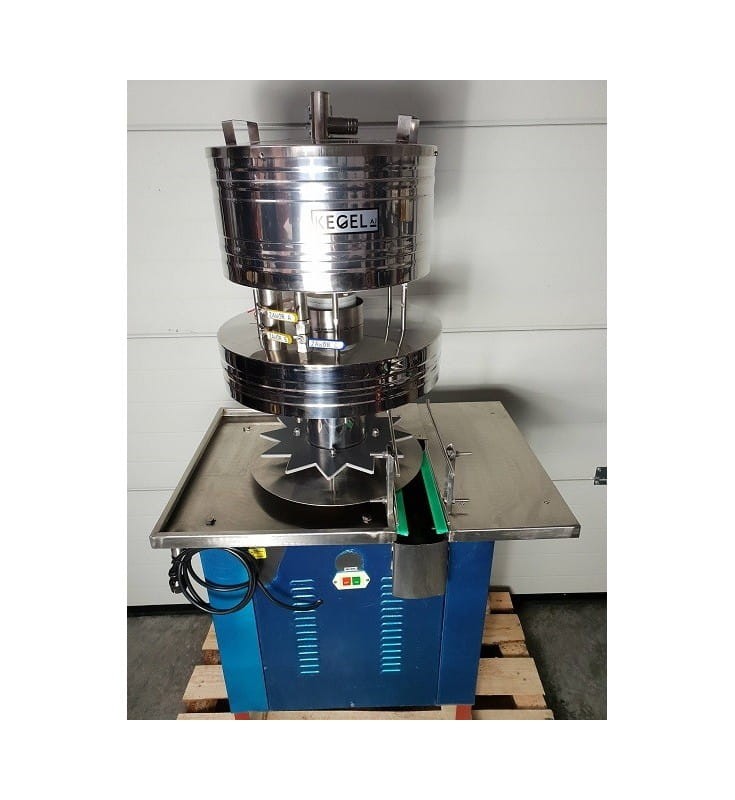

FILLING LIQUID MACHINE GDP 12

Application:
The device is composed of 4 parts: frame, cover, drive, dosing system.
Frame and cover: they form the skeleton of the device and protect the persons serving from contact with the driving parts.
Drive mechanism: its function is to transmit power.
It is composed of a motor, a speed reducer, a pulley, and a gear.

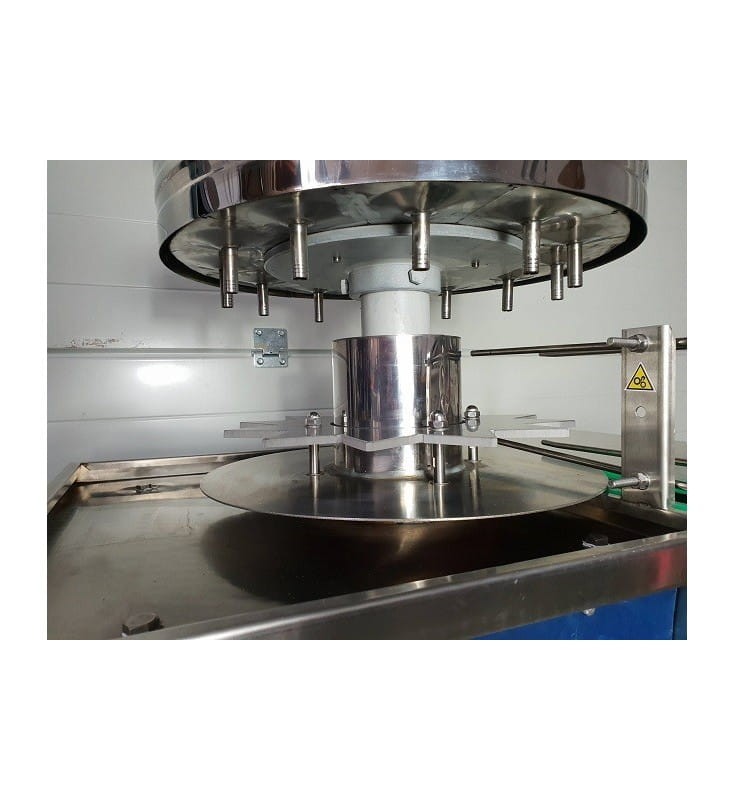

Lifting motor: its task is to change the height of the dosing disc in the event of changing the height of the bottles.
It consists of a bearing and a flywheel.
Filling part: its function is to dispense the liquid.

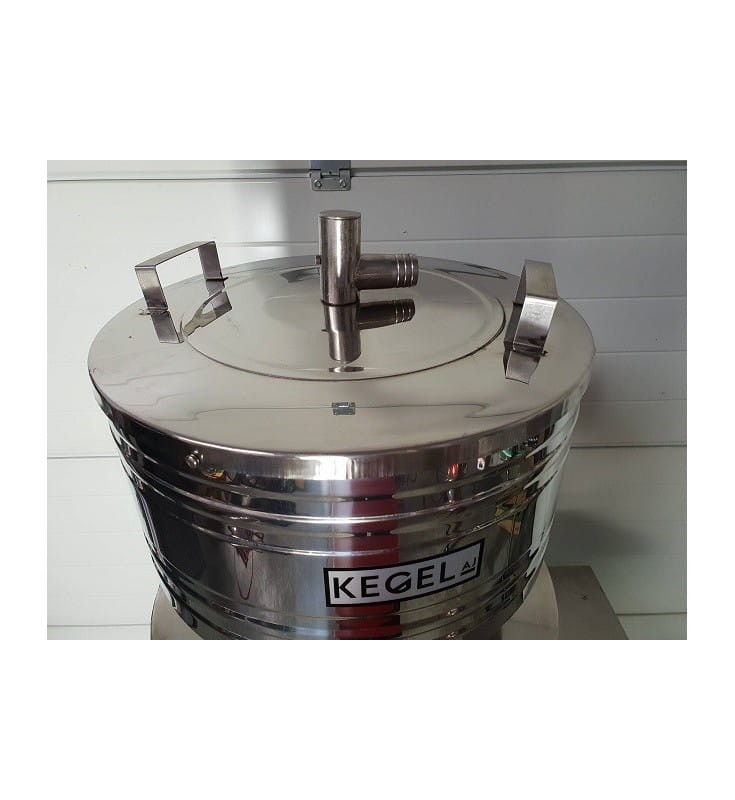

It consists of a bowl separating the liquid for the dose, the fluid reservoir outlet valve, the control valve, the top tank valve and the tank.
Functions:
The device has the option of connecting a conveyor belt.
The filling machine can be easily integrated into a simple production line.
The machine may be intended for contact with foodstuffs.
It has been designed in such a way as to avoid the risk of infection, disease, infection.
Parts can be cleaned before each use.
All surfaces in contact with the product have a smooth surface and are made of corrosion-resistant stainless steel.
The construction of the machine precludes the penetration of the substance into the product.
Technical data:
Power supply: 230 V / 50 Hz / 110 V
Power: 0.37 kW
Efficiency: about 500 bottles / h (depending on the size of the dose)
Size of the dose: 300 - 1000ml
Accuracy: +/- 1%
Bottle height: 150 - 390 mm / 6-15"
Dimensions [length x width x height]: 900 x 660 x 1630 mm/ 35" x 26" x 64"

For an extra charge:

Prepared for connection with the receiving conveyor
