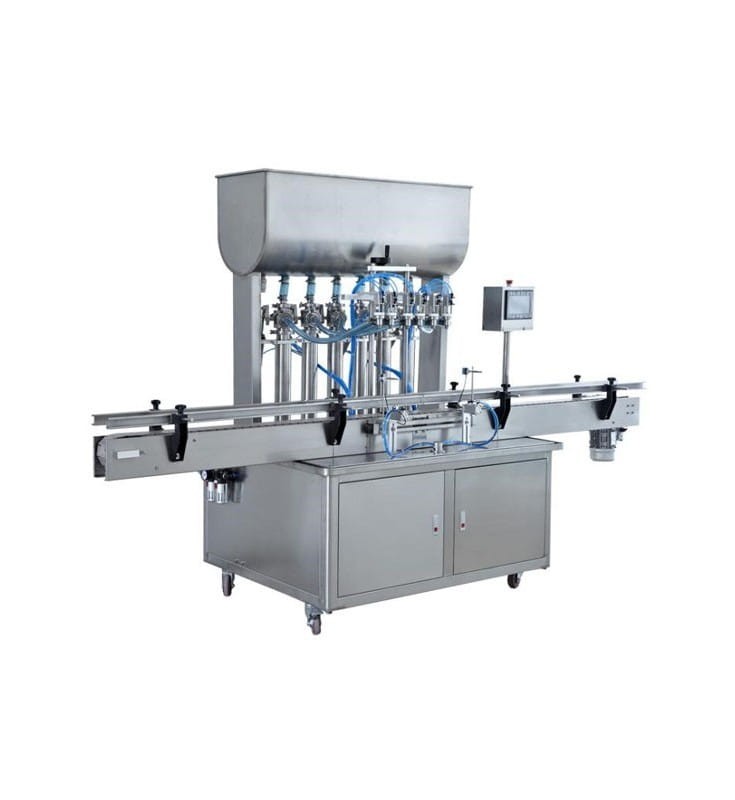

AUTOMATIC LINEAR PASTE FILLER GT-4

Application:
Automatic GT-4 filler designed for filling plastic and glass bottles with thick liquids (sauces, gels).
The device has its own conveyor belt, thanks to which it can be easily integrated into the production line with a cap machine, labeling machine, etc., but it can also be a separate work station.
The fillers are adapted to the customer's requirements (bottle dimensions, dose size), if interested, please contact us - we will be happy to prepare an individual offer.

Functions:
Adjustable filling speed and volume.
The service takes place via a simple to use panel.
The device is very efficient and reliable.

European components - Weintec, Siemens, Panasonic etc.
The machine is entirely made of stainless steel.
Requires connection with compressor

Technical data:
Power: 0,5 kW
Power supply: 220 V / 50 Hz

Sir pressure: 0.5-0.7 MPa

Air consumtion: 400 l/min
The number of nozzles: 4
Filling volume: 20 - 100 ml, 50 - 250 ml, 100 - 500 ml, 200 - 1000 ml, 500 - 2500 ml, 1000 - 5000 ml
Accuracy: ≤ 1%
Capacity: 960 pcs / h
Dimensions (L x W x H): 2000 x 900 x 2000 mm
