CAPPING MACHINE FOR CHEMICAL HC-50

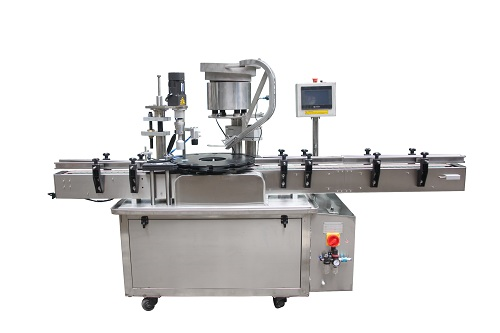

HC-50 Automatic Capping Machine – Precision and Efficiency for Your Production Line

The HC-50 automatic capping machine is a modern solution designed to meet individual customer requirements. It combines proven technologies from both domestic and international models, making it a reliable component of any production line.

What is it used for?
This machine is designed for automatic cap application and tightening on bottles. It is ideal for use in the food, cosmetics, pharmaceutical, and chemical industries. By integrating mechanical and pneumatic systems, the HC-50 performs the entire capping process: bottle feeding, cap sorting and feeding, cap placement, and screwing.

Why choose it?

• Fully automatic operation – starts when a bottle is detected, stops when there is none

• High precision – each action is performed with accuracy and consistency

• Adjustable – suitable for various bottle and cap sizes

• Compact design – perfect even for limited production spaces

• Advanced integration of mechanical, electronic, and pneumatic components

Key technical parameters:
Model: HC-50
Production capacity: 15–40 bottles/min
Bottle diameter/width: 20–120 mm (customizable)
Bottle height: 30–250 mm (customizable)
Cap diameter: 20–500 mm (customizable)
Power supply: 220V or 380V, 50Hz
Machine dimensions: 2000 × 900 × 1600 mm
Net weight: 500 kg

Note: Caps can be fed via a vibration bowl or elevator-style feeder. Minor surface scratches on the caps may occur depending on the feeding method.
