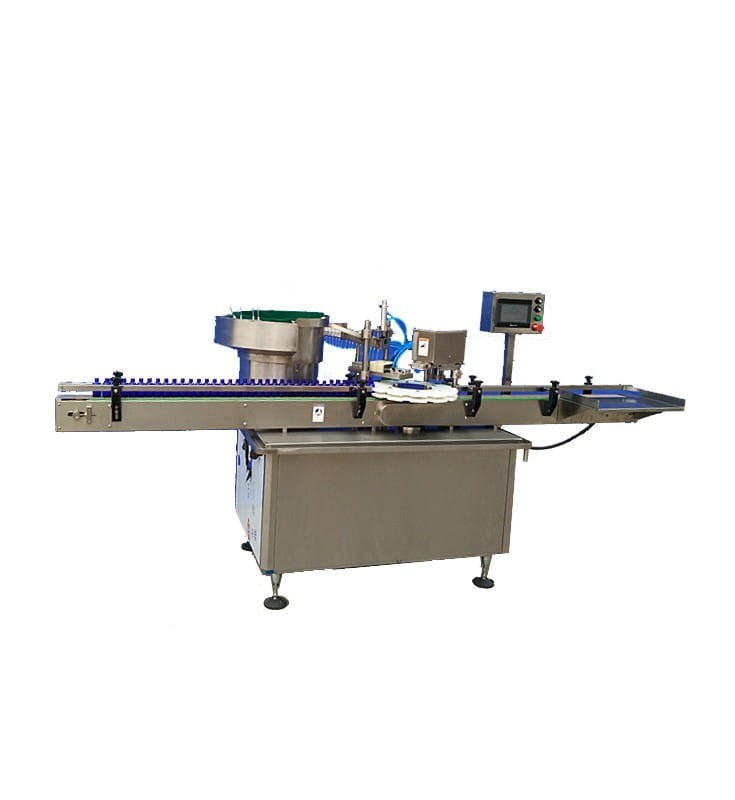

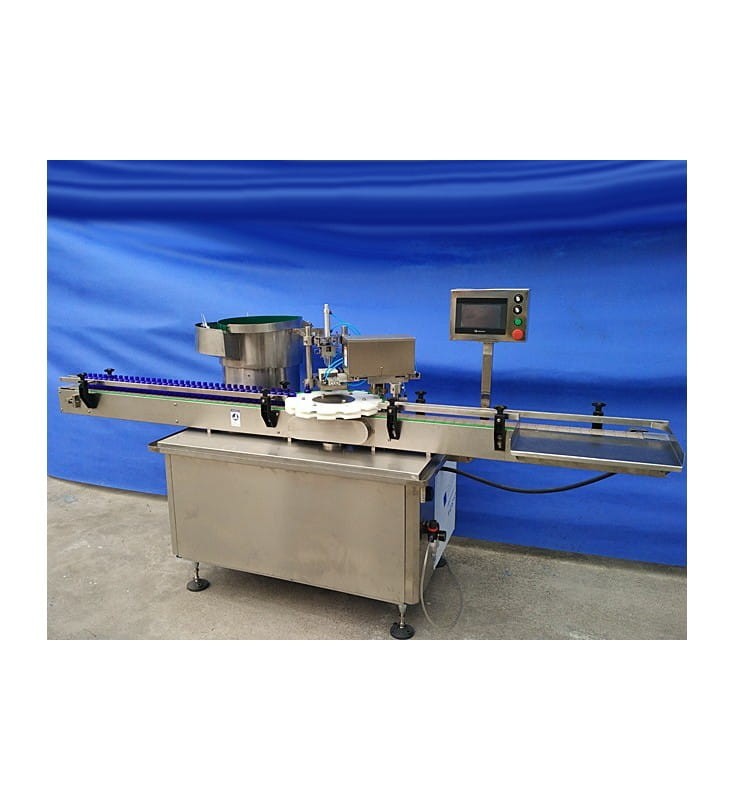

YB-XG AUTOMATIC SCREW CAPPING MACHINE

Application:

An automatic device designed for screwing atomizers on glass and plastic bottles.

Widely used in the cosmetics, pharmaceutical or plant protection industry.

Function:

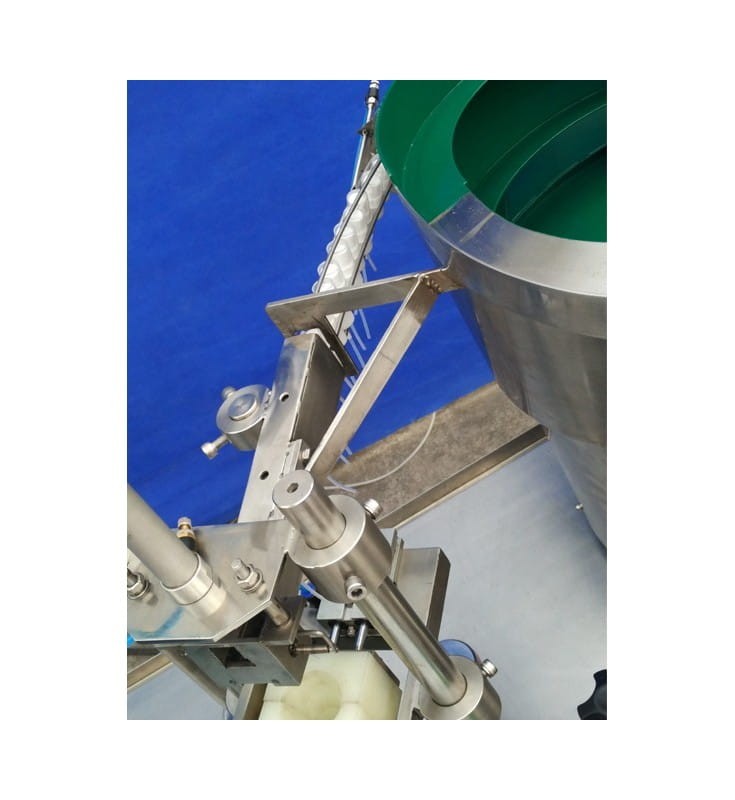

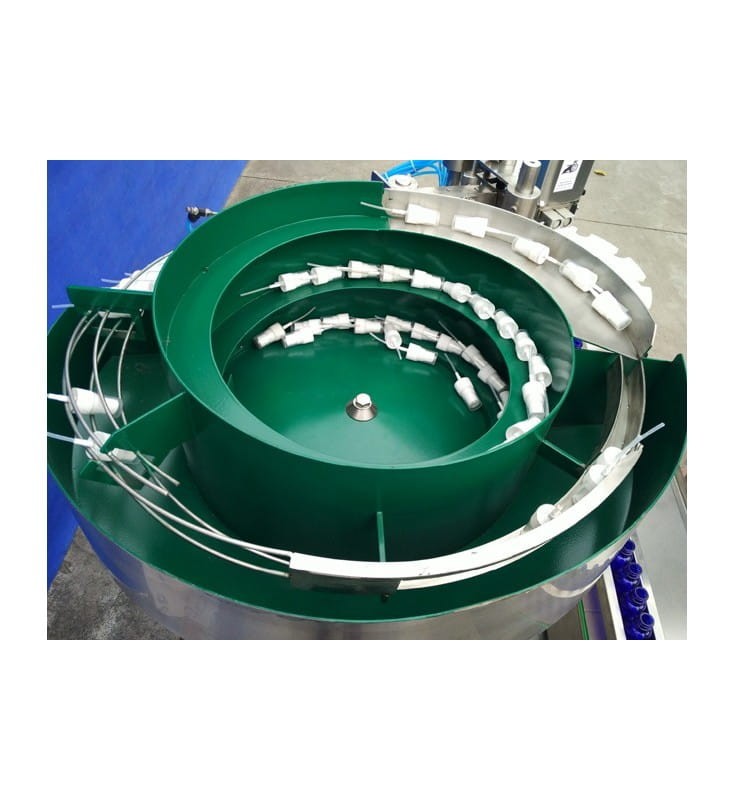

It has an atomizer dispenser.

Detects the presence of a bottle under the feeder - when there is no bottle, the administration of atomizers is stopped.

Stable operation is provided by the PLC controller.

The service is carried out via a simple touch panel.

The body of the device and elements in contact with the product are made of stainless steel.

The device is efficient and trouble-free.

Technical parameters:
Power: 1.5 kW
Power supply: 230 V / 50 Hz
The diameter of the bottle: 25 - 100 mm  US 0.98 - 3.93"
Diameter of the nut: 20 - 120 mm US 0.78 - 4.72"
Capacity: 1800 - 3600 pcs / h
Accuracy: over 98%
External dimensions [L x W x H]: 2000 x 1500 x 1500 mm  US 79 x 59 x 59"
Weight: 500 kg  US 1102 lb
