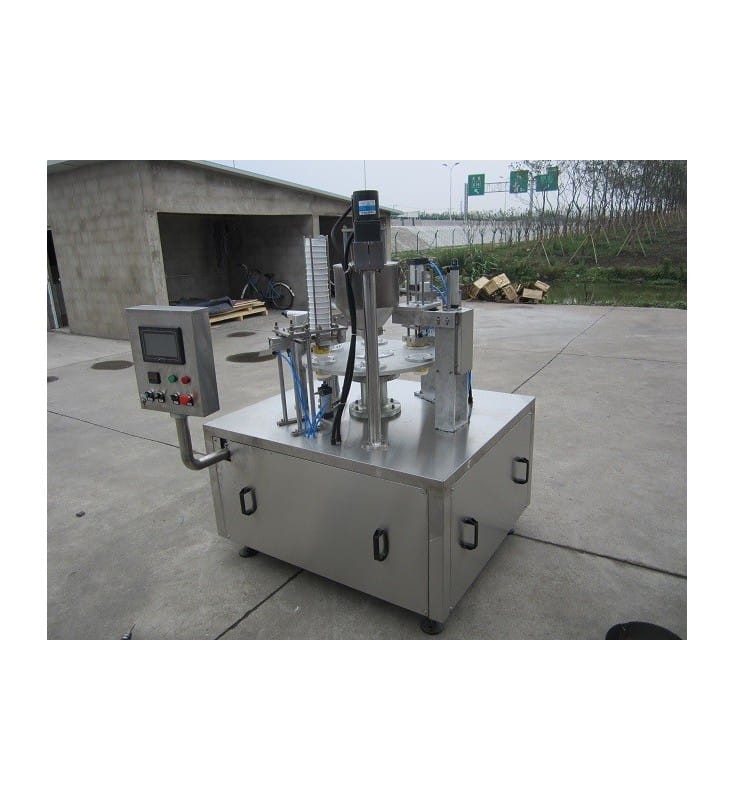

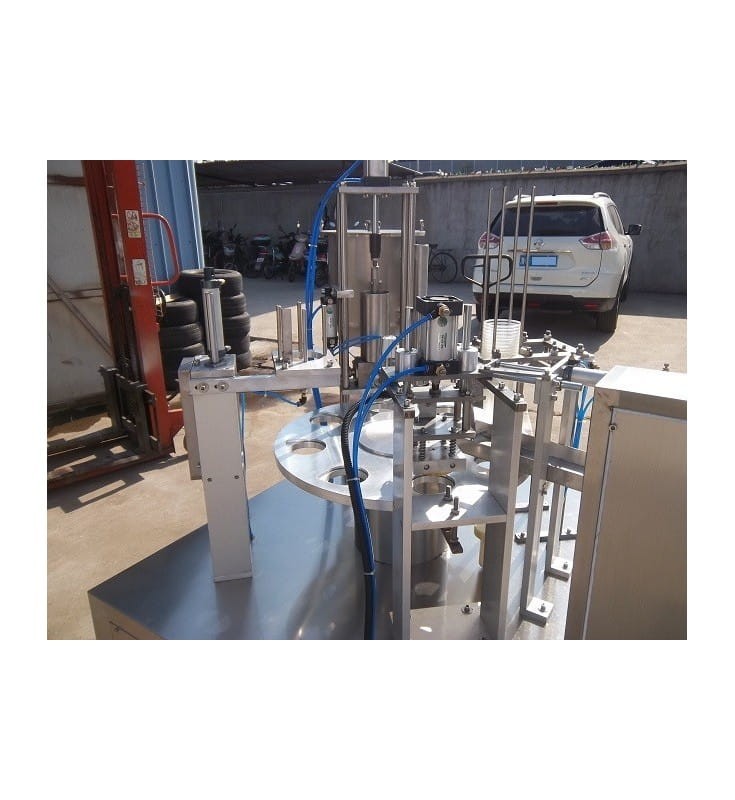

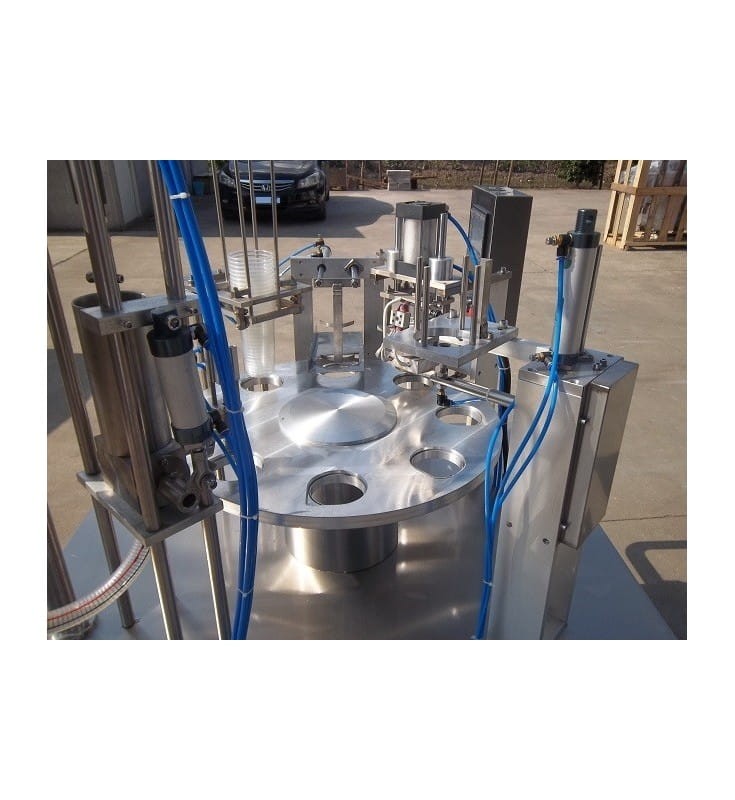

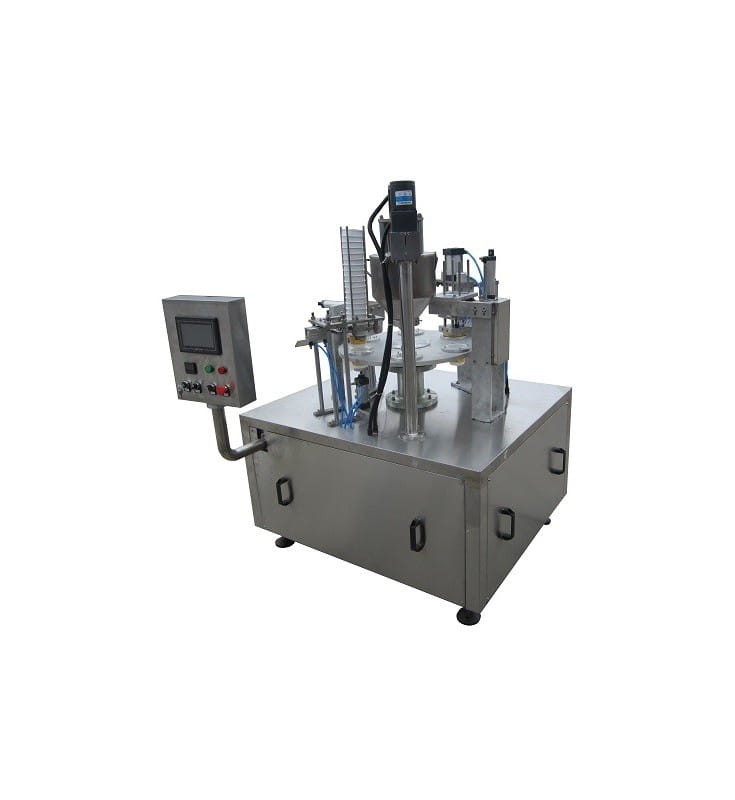

AUTOMATIC PLASTIC CUP FILLING AND SEALING MACHINE BHZ1

Application:
Fully automatic rotary type machine for filling cups and sealing them with liquid.
Work process:

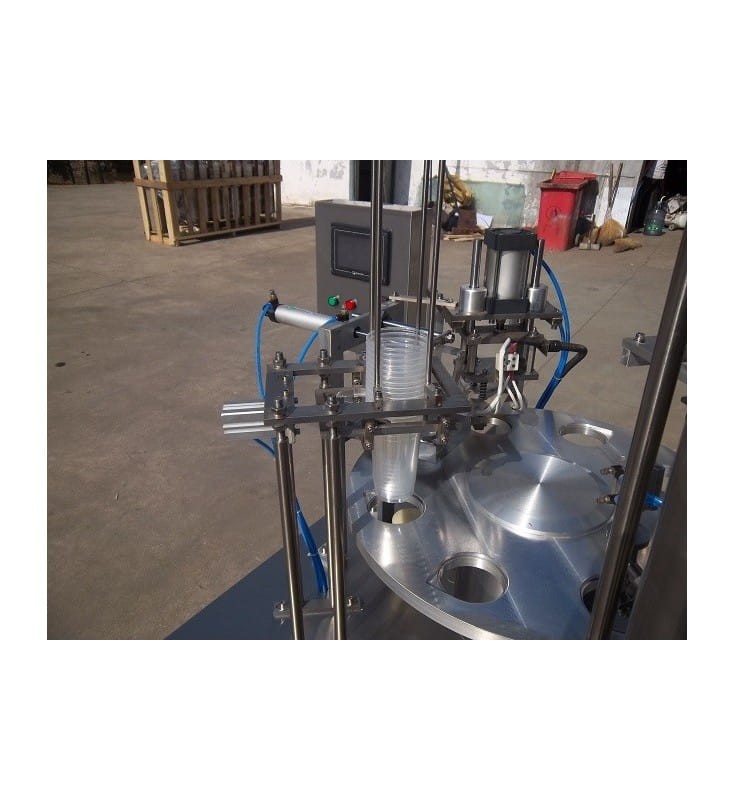

1. Loading cups: The cups fall one after the other; pneumatic control; one cup, one hole.

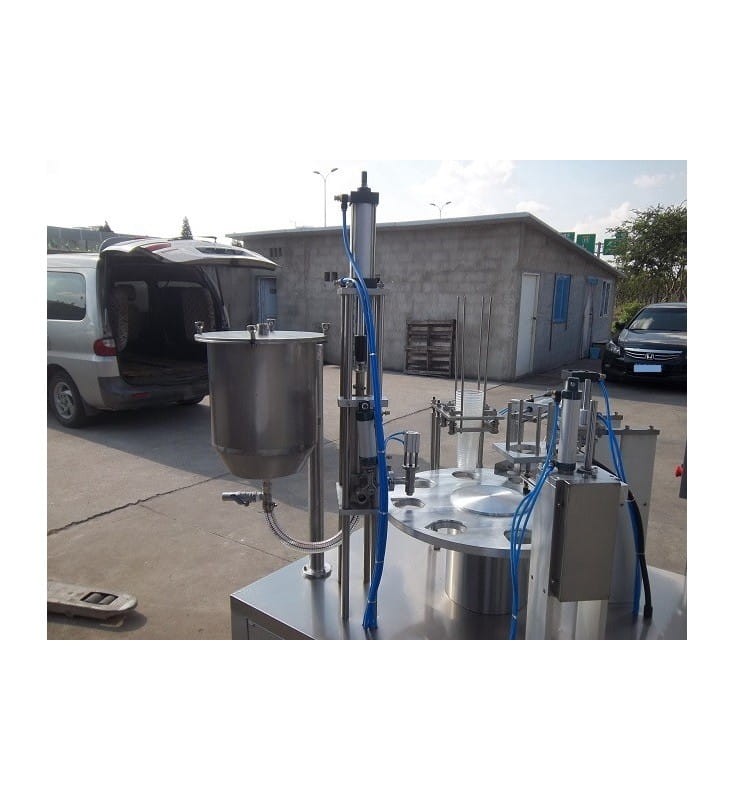

2. Filling: Tanks easy to open and close. All parts / tubes in contact with the product are made of stainless steel.
3.Patina application: Patches are sucked; pneumatic control; one silicone choke.
4.Welding: copper sealing heads; sealing temperature is adjustable: 0-400 C; pneumatic control; one sealing head.
5. Ejecting finished cups: Ready cups are automatically ejected.

Functions:
The machine uses the best electrical and pneumatic components.
Omron PLC pneumatic controllers were used, as well as a touch screen.
The machine has one filling nozzle with a leak prevention system.
All machine parts in contact with the product are made of stainless steel or have a smooth surface.

Technical parameters:

Filling nozzle: 1
Capacity: 600 - 1000 cups / h
Range of doses: 10 - 300 ml (subject to regulation)
Accuracy: error range ≤ ± 1%
Power: 2.0 kW
Air consumption: 0.6 m3/ min.
Power supply: 380 V / 50 Hz
Temperature: 0 - 400 ° C
Weight: 900 kg
Dimensions [L x W x H]: 1400 x 1200 x 1600 mm
Dimensions of the packaging [L x W x H]: 1500 x 1300 x 1800 mm
