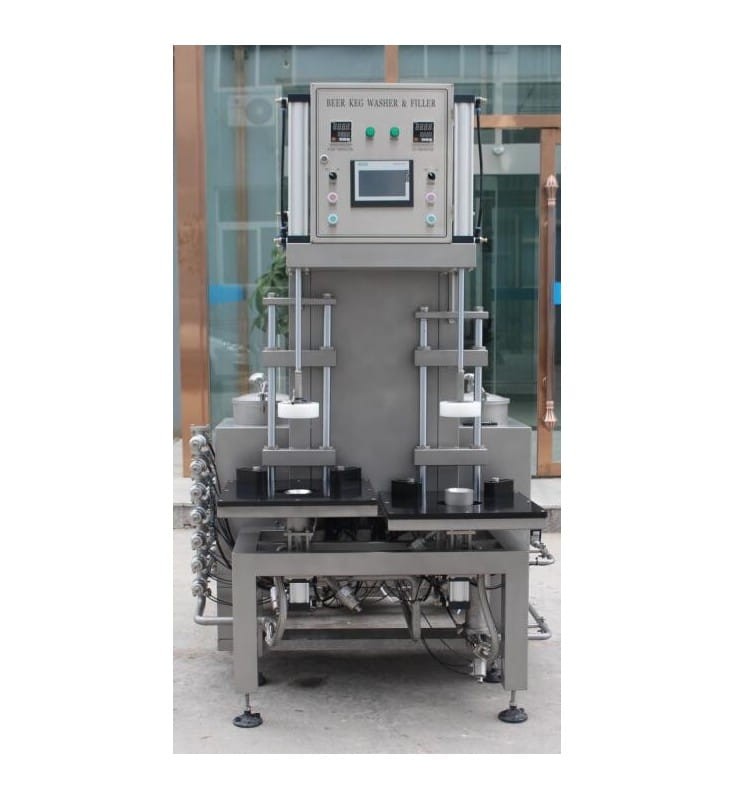

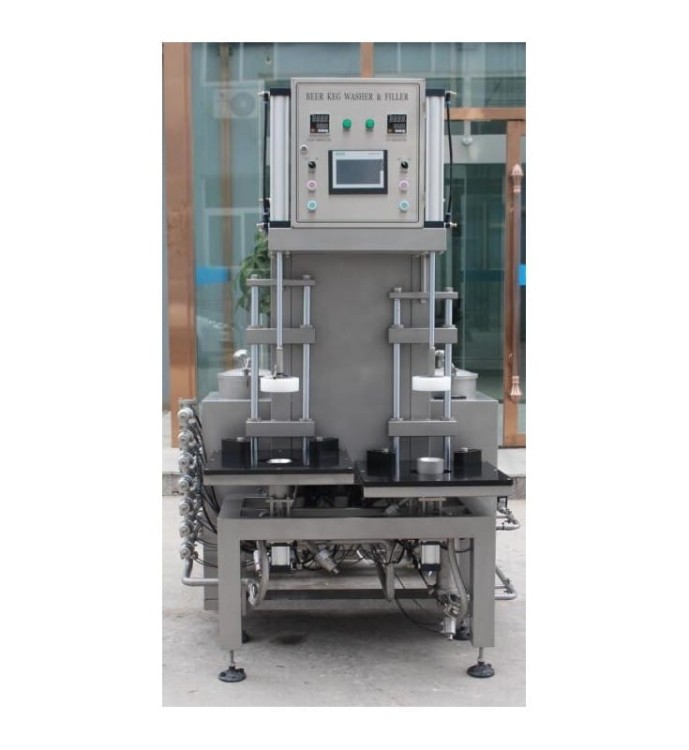

FILLING AND WASHING MACHINE FOR KEGS

Zastosowanie:

Filling and washing machine for kegs.

Functions:

Automatic control panel PLC, all parameters can be adjusted throught touch screen.

Cleaning and filling process can be finished in this machine at one time.

With unique pressure maintaining system, performance stable and reliable, beer loss minimum.

Device have CIP cleaning system.

European components - Weintec, Siemens, Panasonic etc.

Table board is lifling and convenient to take kegs.

The washer has two 90 l water tanks and the option of steam sterilization.

Technical parameters:
Power: 3 kW
Heating power: 18 kW
Power supply: 380 V / 50 Hz

Capacity: 30-40 kegs / h
Dose: 5-50 l  US 1.3 - 13 gal
Applicable kegs:
Diameter: 250-500 mm US 10" - 20"
Height: 360-600 mm US 14" - 24"
Tank heating way: electric heating or steam heating
Table board: lifting
External dimensions [L x W x H]: 1200 x 1600 x 2000 mm  US 47 x 63 x 79"
Weight: 380 kg US 837 lb

Possibility to upload the menu in other language.
