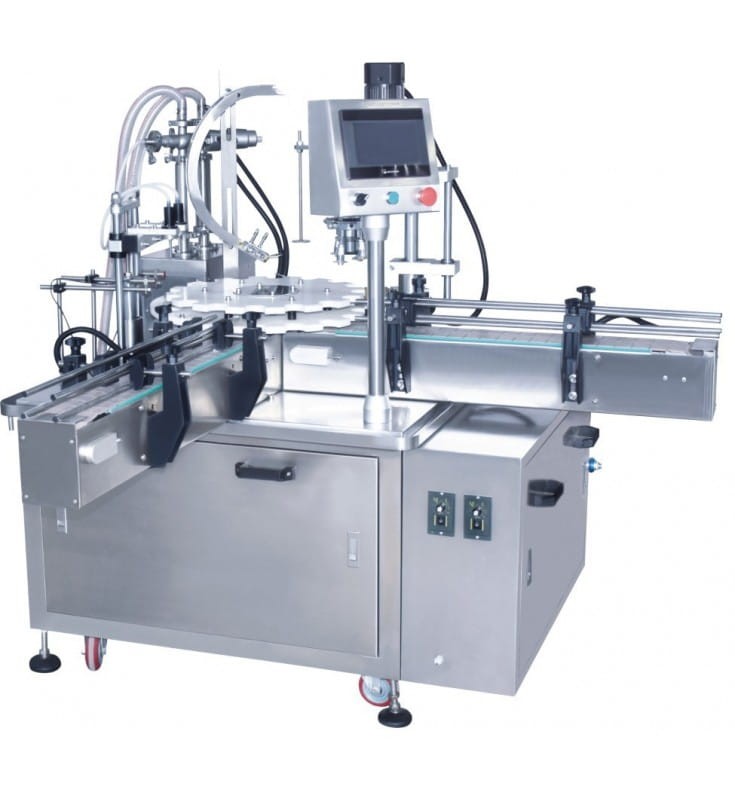

ROTARY FILLING AND CAPPING MACHINE

Application:
The device is designed for filling bottles and screwing them on.
It is equipped with a filling nozzle, a nut feeder (adapted to one dimension of the nuts given by the customer at the time of ordering), a screwing head and a rotary table.
Functions:
The machines are equipped with an easy-to-use tactile PLC panel that allows you to control work on devices at any stage.
The devices are made of stainless steel.
Simple to use and trouble-free.
The device is equipped with an explosion-proof motor.
Technical data:

Filling machine:
Filling speed: 30-35 bottles / min.
Filling accuracy: ± 1%
Control system: PLC: Delta,
Touch screen: WEINVIEW
Body material: Stainless steel # 201
Pouring range: 10- 100 ml
Material of contact parts: Stainless steel 304 #
Length of the conveyor belt: 1 m US 39"
Capping machine (the device is adapted to the customer's requirements):

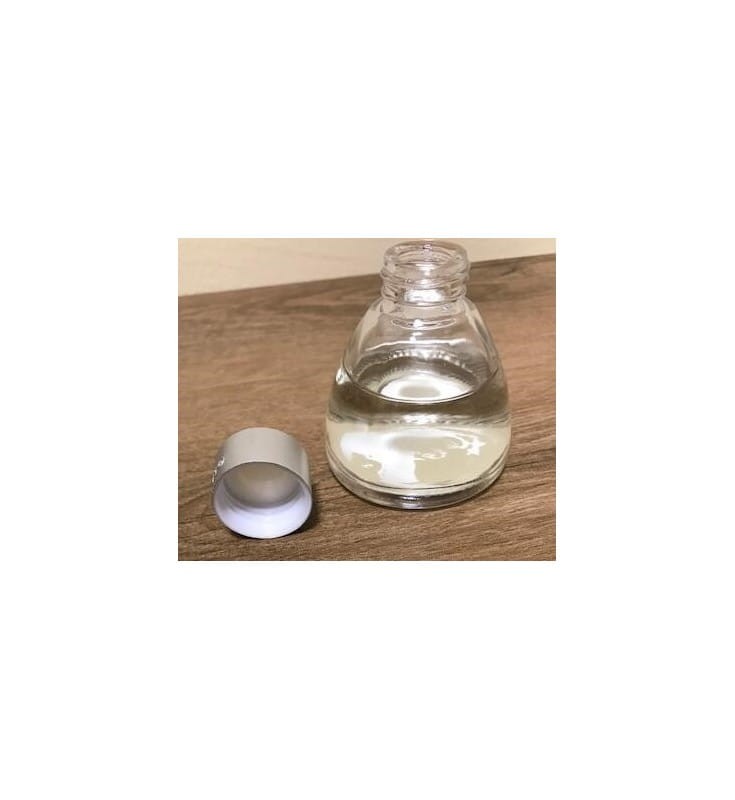

Diameter of the bottle: ≥ 15 mm  US 0,6" (approximately 15 mm US 0.6", can be adapted for the customer's product)
The diameter of the bottle body: Φ20-60 mm  US 0,8-2"
Bottle height: 50-150 mm  US 2-6"
Diameter of the nut: Φ20-50 mm  US 0,8-2"
