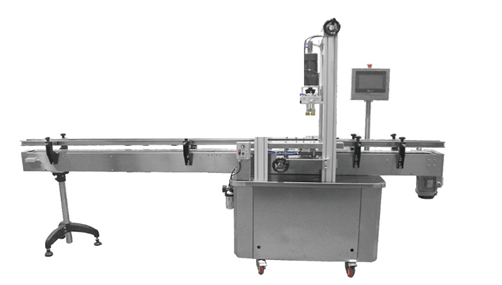

XGZ-1 Automatic Bottle Capping Machine

Product Description
The XGZ-1 automatic capping machine is a modern device designed for fast and precise capping of plastic caps on bottles of various shapes and sizes. The machine continuously feeds bottles, positions them in the clamping system, and guides them steadily to the capping head. The caps are gradually tightened by two pairs of polyurethane capping wheels, ensuring perfect sealing and consistent results.

Thanks to the adjustable height and width of both the conveyor belt and capping wheels, the XGZ-1 can be quickly adapted to different bottles and cap formats without the need to replace spare parts. This makes the machine extremely versatile and cost-efficient.

Applications
The machine is widely used in:

• food industry,

• pharmaceutical industry,

• cosmetics production,

• chemical industry,

• soft drinks and beverages.

It can operate as a standalone unit or be integrated with a bottle unscrambler, filling machine, and other equipment to form a complete production line.

Key Advantages

• high speed and stability – output up to 2000 bottles per hour,

• easy adjustment for different bottles and caps,

• no need to replace parts when changing formats,

• accurate and neat capping effect,

• user-friendly operation with simple controls,

• compact design and modern appearance,

• CE certified, supplied with a user manual in Polish.

Technical Specifications

• Voltage: 220V, 50Hz, single phase

• Power: 500W

• Capacity: 1500–2000 bottles/hour

• Working air pressure: 0.4 MPa

• Cap diameter: 20–50 mm

• Bottle diameter: 20–115 mm

• Bottle height: 70–250 mm

• Machine dimensions: 2500 × 800 × 1600 mm

• Machine weight: 150 kg

The XGZ-1 is a reliable solution that increases production efficiency and guarantees perfect capping for every bottle.
