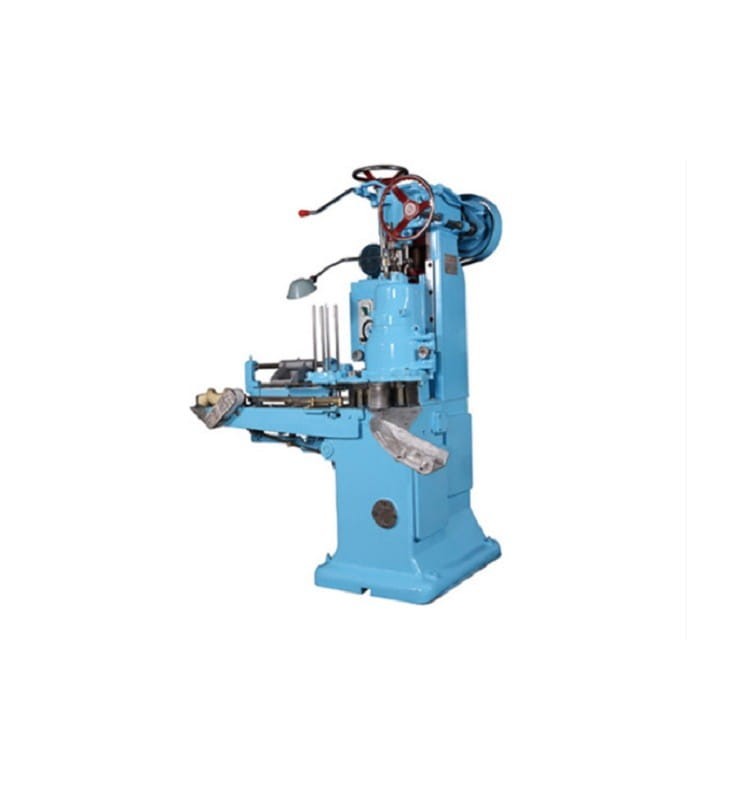

VACUUMING AND NITROGEN FILLING SEAME PP170

Application:

Can closing machine with nitrogen supply.

The device is perfect for medium and large manufacturing companies.

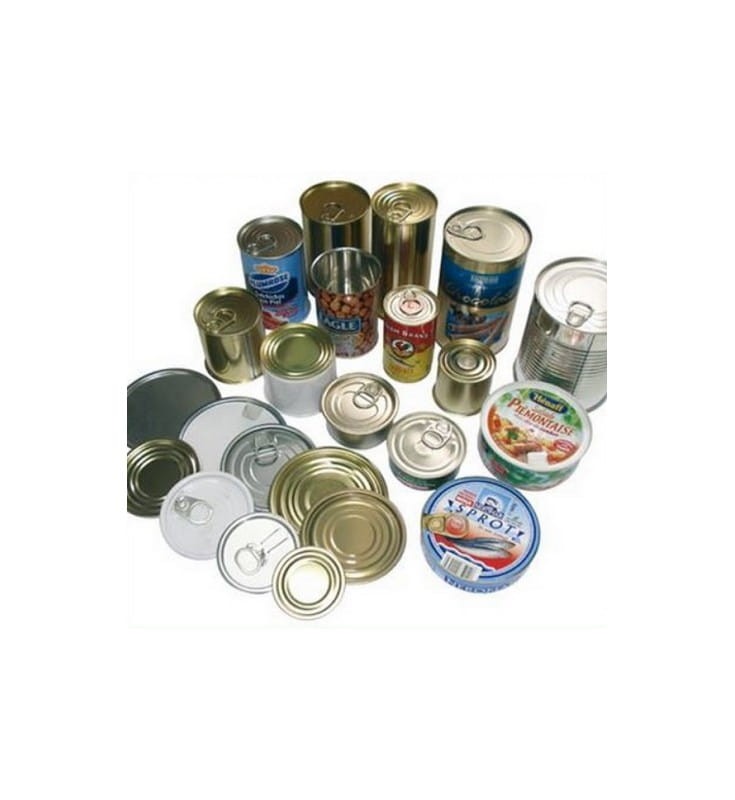

Adapted to work with round cans, created among others aluminum, sheet metal or this type of material.

Functions:

Simple service

Quick calibration

The entire work process is done automatically

The device is equipped with a sensor detecting the can, at the moment when it does not detect the can, it does not leave the closure

A simple PLC panel

Touchscreen

Technical parameters:

Diameter of the can: 52-108 mm US 2-4"

Is height: 46-135 mm US 1,8-5"

Stitching speed 15-17 cans / minute

Rotational speed of the stitching head: 756 rpm

Rotational speed of bearing displacement: 1400 RPM

Compressed air: not applicable

Power supply: 380 V, 50 / 60 HZ

Power: 1.5 kW

Vacuum pump: Yes

Dimension: 1210 × 1460 × 1900 mm US 48" x 57" x 75"

Weight: 1450 kg US 1317 lb
